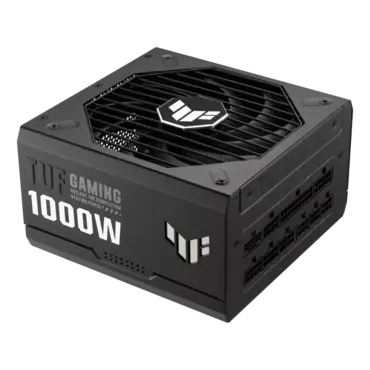

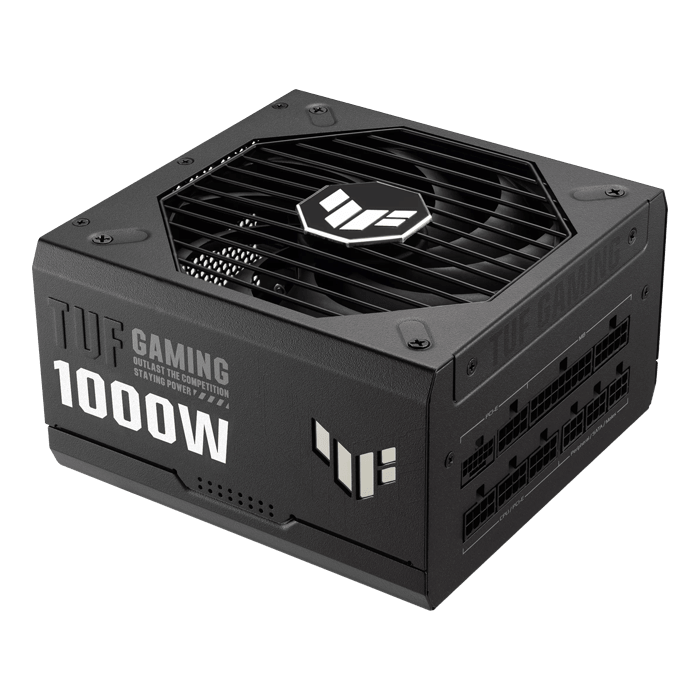

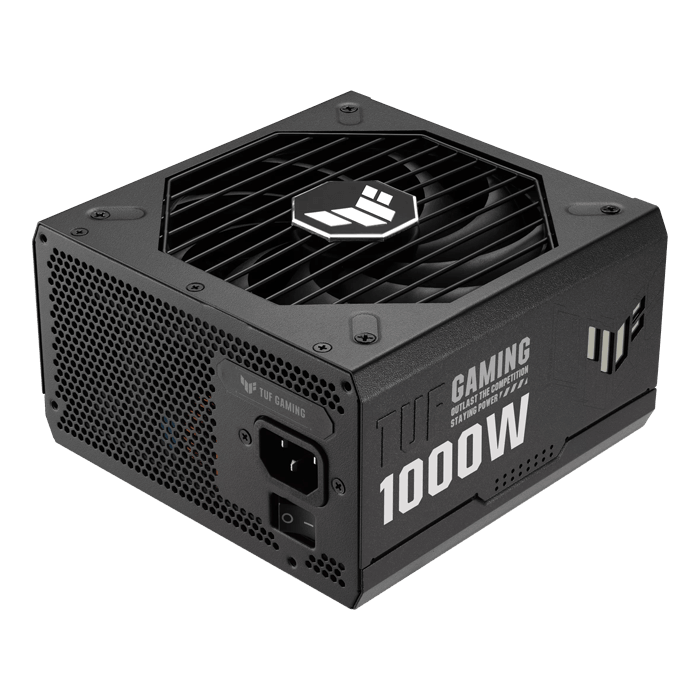

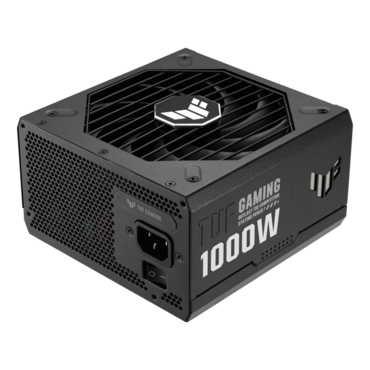

TUF-GAMING-1000G, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
Built For The Long Haul
The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
The TUF Gaming Gold PSU series is your companion in battle. Offering premium specs such as ATX 3.0, fully modular, and 80+ Gold Certification, this powerhouse of a PSU will power your dream PC. Backed by a 10-year warranty, the TUF Gaming Gold power supply will be the start of your gaming journey.
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

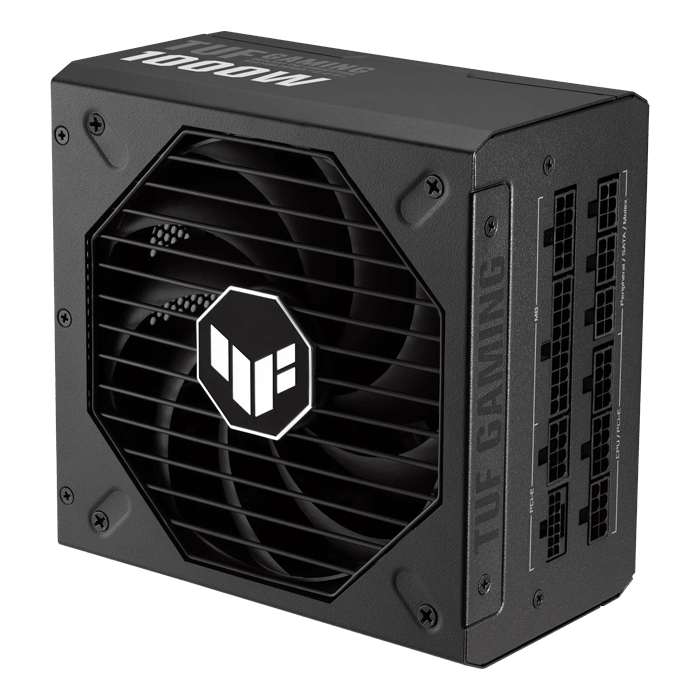

- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

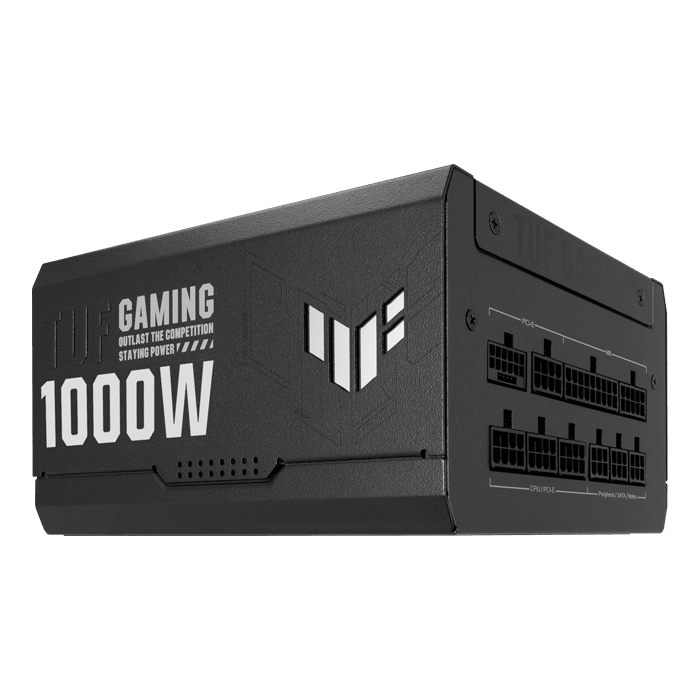

- Fully modular etched cables keep your rig neat and tidy.
- 10-year warranty included.
Model | TUF Gaming 1000W Gold |
Intel Form Factor | ATX12V |
ATX 3.0 | Yes |
Dimensions | 150 x 150 x 86 mm |
Efficiency | 80Plus Gold |
Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
Hazardous Materials | ROHS |
AC Input Range | 100-240Vac |
DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
Maximum Load | 25A25A83.3A 0.8A 3A |
Combined Load | 130W 130W 1000W 9.6W 15W |
Total Output | 1000W |

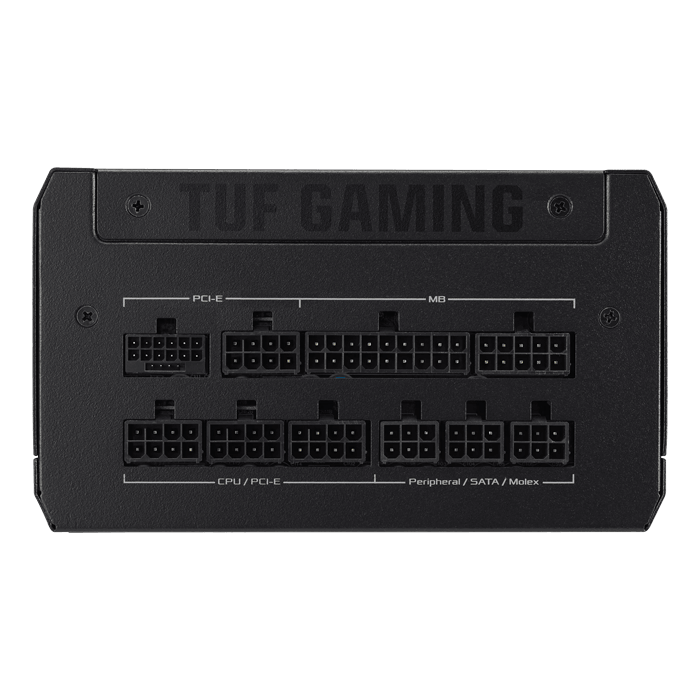

Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 |
Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) PCI-E 1-to-2 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable tie x 3 User Manual x 1 |
Weight | 2.48kg (single PSU) |
0dB Fan Button | No |
