TUF GAMING X570-PLUS, AMD X570 Chipset, AM4, HDMI, ATX Motherboard

Quantity:
  • SKU: 12867690
  • Manufacturer: ASUS
  • MPN: TUF GAMING X570-PLUS
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$371.09
Quantity:

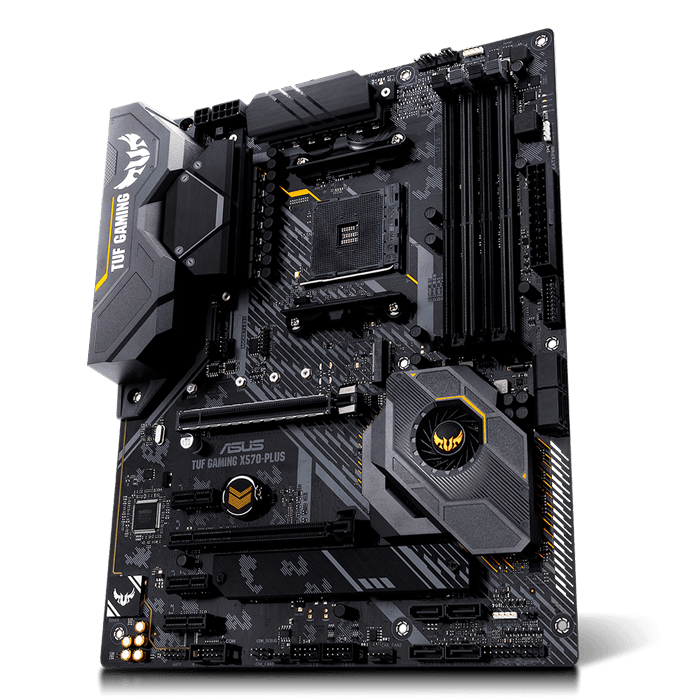

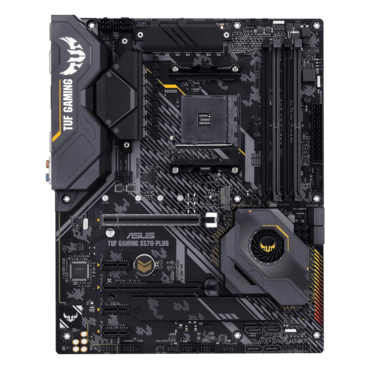

TUF GAMING X570-PLUS, AMD X570 Chipset, AM4, HDMI, ATX Motherboard
AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, 12+2 with Dr. MOS power stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
  • AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD RyzenTMprocessors
  • Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
  • Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
  • Next-Gen Connectivity: Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek® L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology
  • Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
  • TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset AMD X570
Memory 3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support 3rd and 2nd Gen AMD Ryzen™ Processors
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports AMD CrossFireX™ Technology
Expansion Slots 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1
Storage 3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN Realtek® L8200A
ASUS Turbo LAN Utility
TUF LANGuard
Audio Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
AMD X570 chipset :
3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
Special Features ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
DIY Friendly Design
- Procool
- SafeSlot
- Digi+ VRM
- Highly Durable components
- ESD Guards

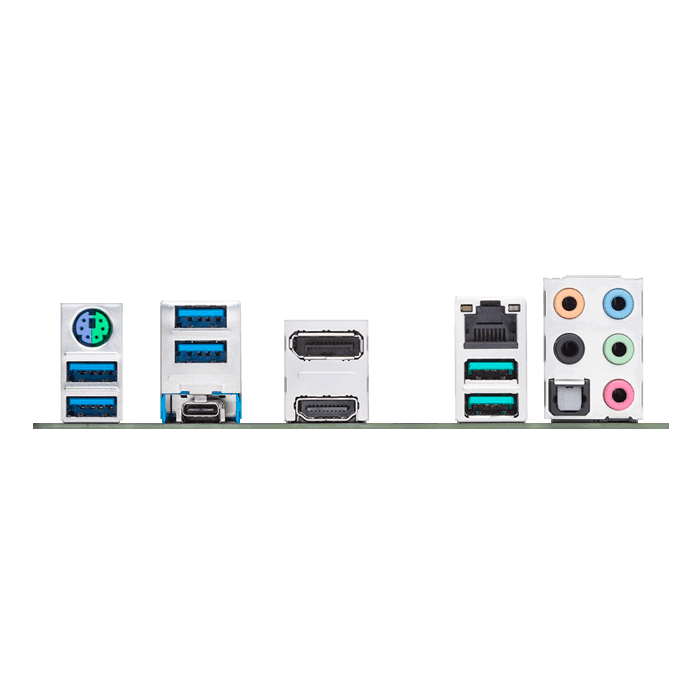

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
Internal I/O Ports 2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
BIOS 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WOL by PME, PXE
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
