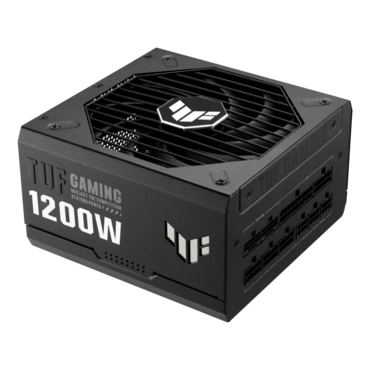

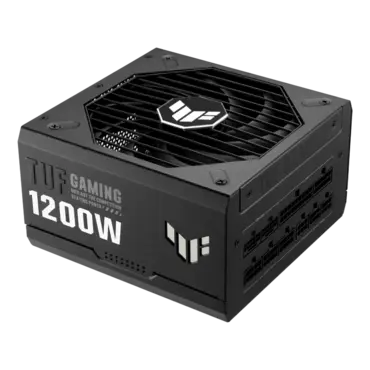

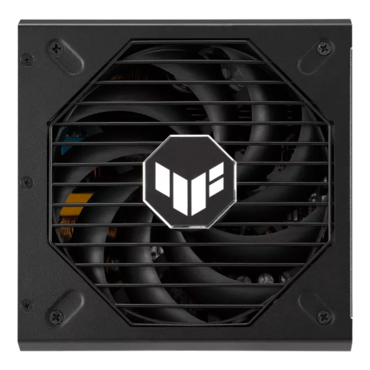

TUF Gaming 1200W Gold, 80 PLUS Gold 1200W, Fully Modular, ATX Power Supply
- SKU: 17315835
- Manufacturer: ASUS
- MPN: TUF-GAMING-1200G
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$258.03
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Fully modular etched cables keep your rig neat and tidy.
- 10-year warranty included.
| Model | TUF Gaming 1200W Gold |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 40°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A25A99A 0.8A 3A |
| Combined Load | 130W 130W 1188W 9.6W 15W |
| Total Output | 1200W |

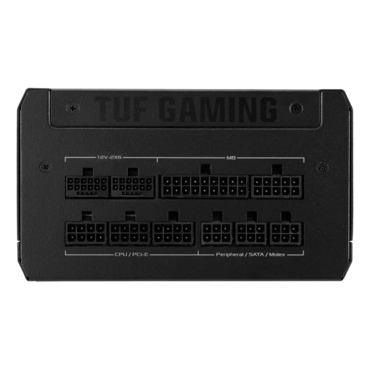

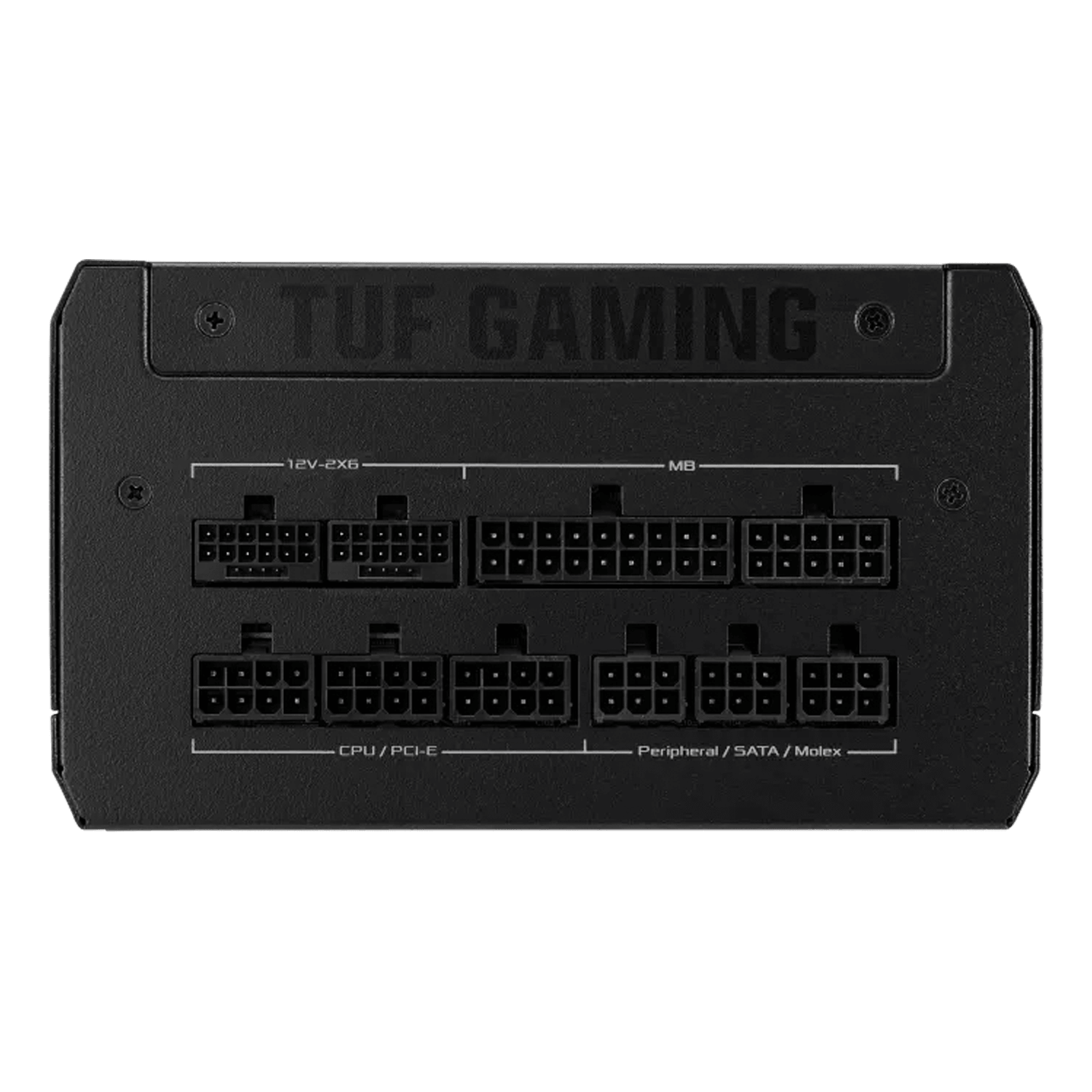

| Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 2 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 2 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Weight | 2.66kg (single PSU) |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
