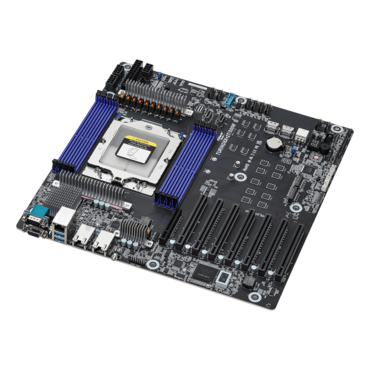

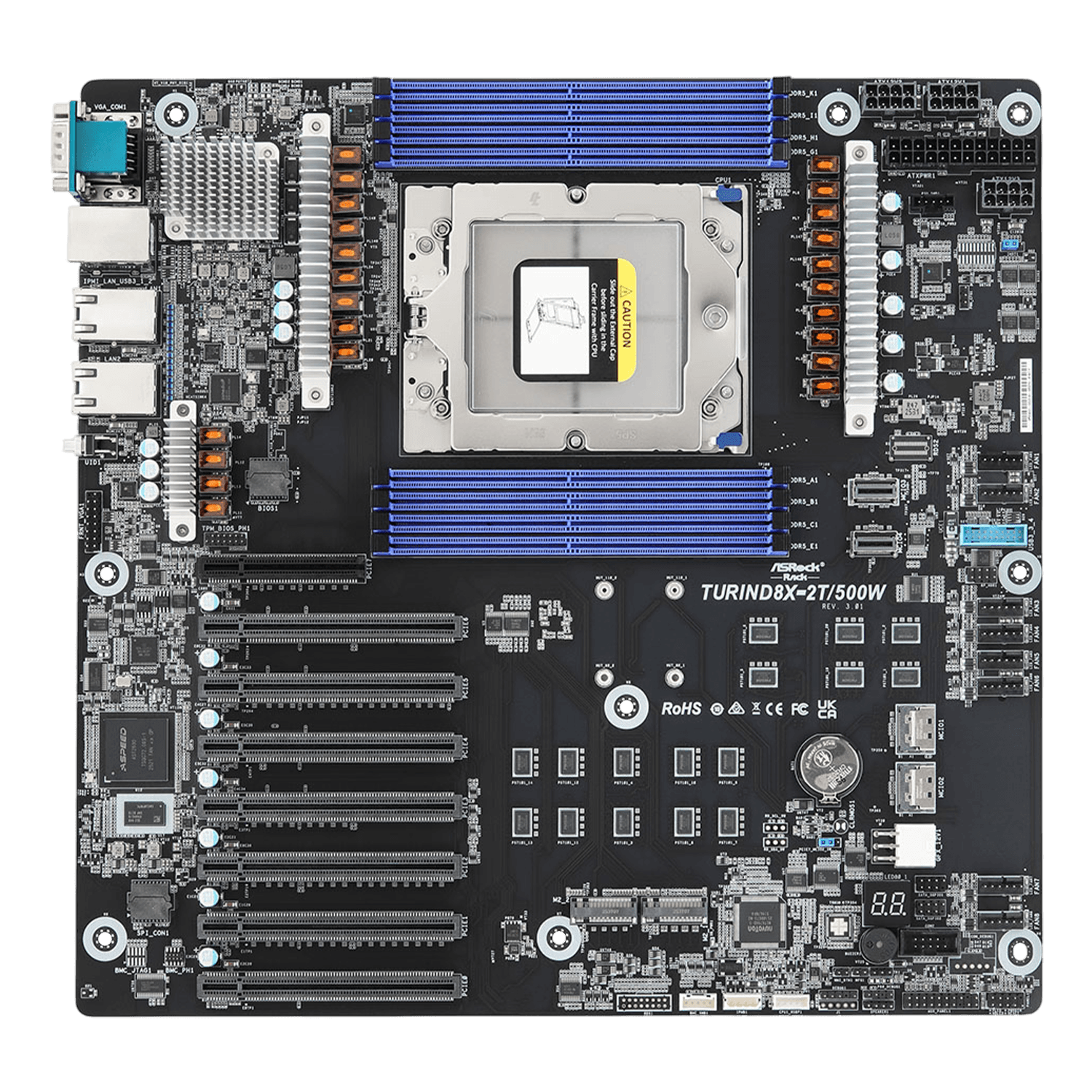

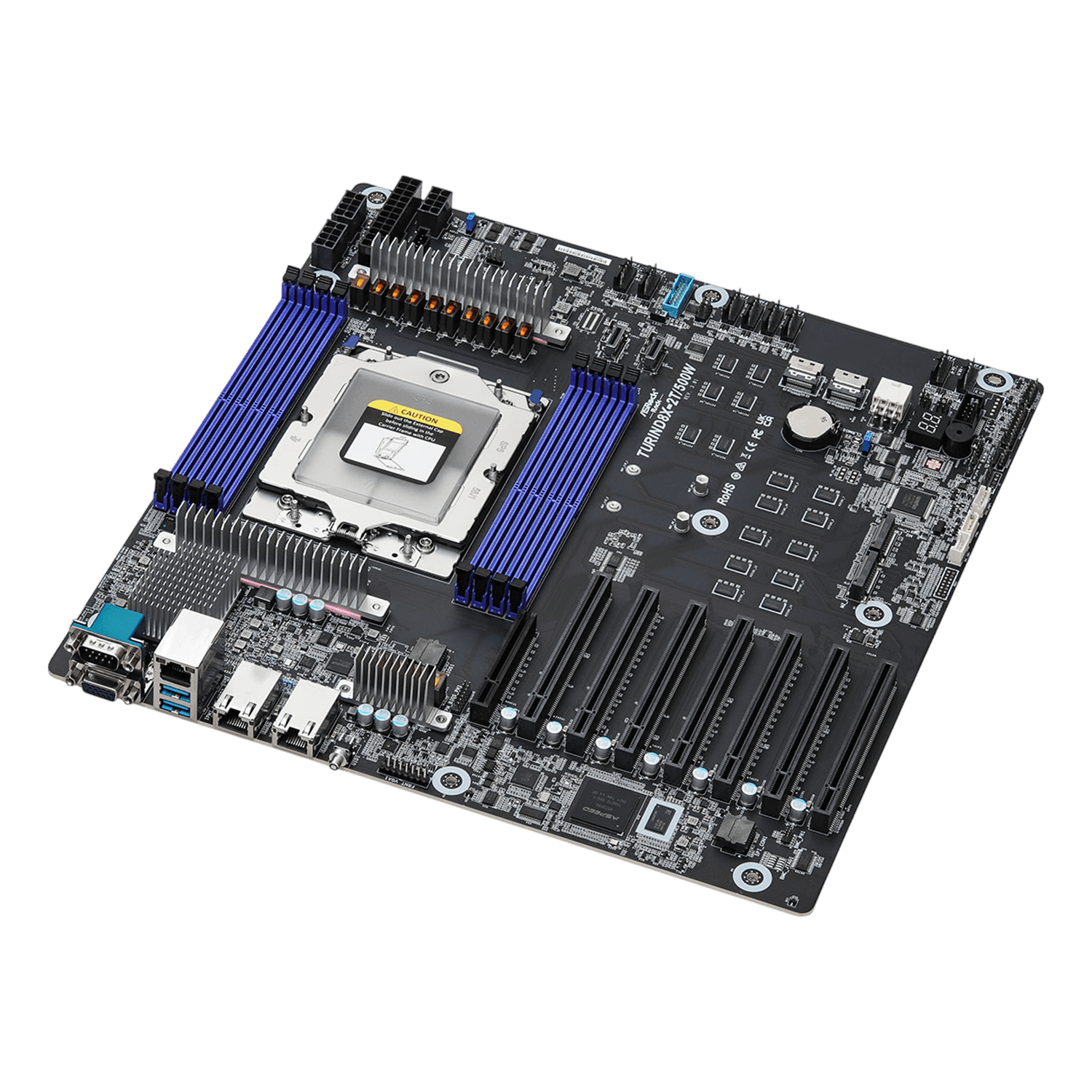

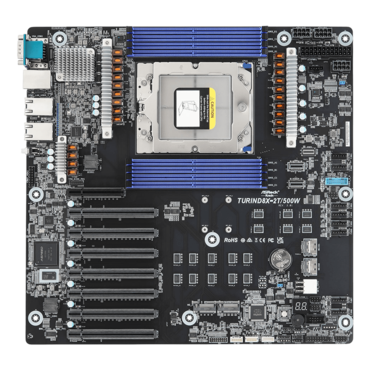

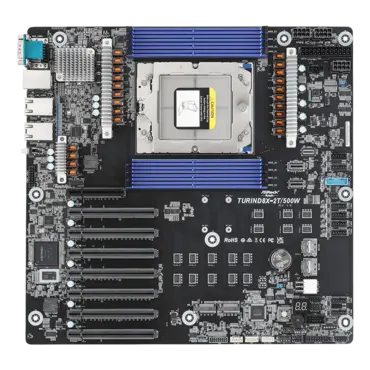

TURIND8X-2T/500W, AMD SoC, SP5, EEB Motherboard
- SKU: 19758828
- Manufacturer: ASROCK
- MPN: TURIND8X-2T/500W
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- TDP up to 500W
- EEB (12.63" x 13")
- Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
- 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
- 4 PCIe5.0 / CXL2.0 x16*, 3 PCIe5.0 x16, 1 PCIe5.0 x8**
- 2 MCIO** (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO* (PCIe5.0 x4)
- Supports 1 M.2 (PCIe5.0 x4 or SATA 6Gb/s), 1 M.2* (PCIe5.0 x4)
- Up to 16 SATA 6Gb/s
- 2 RJ45 (10GbE) by Broadcom BCM57416
- Remote Management (IPMI)
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12.63" x 13" |
| Processor System | |
| CPU | Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| Socket | Single Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 500W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB (2Rx4) RDIMM-3DS: 256GB (2Rx4) |
| Max. DIMM Frequency | 6400 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 |
SLOT6: PCIe5.0 / CXL2.0* x16 SLOT5: PCIe5.0 x16 SLOT4: PCIe5.0 / CXL2.0* x16 SLOT3: PCIe5.0 x16 SLOT2: PCIe5.0 / CXL2.0* x16 SLOT1**: PCIe5.0 x16 SLOT0: PCIe5.0 / CXL2.0* x16 *Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors **SLOT1 shared lanes with 1 MCIO and 1 M.2. SLOT1 auto-switch to PCIe5.0 x8 when either 1 MCIO or 1 M.2 populated. |
| PCIe x 8 |
SLOT7***: PCIe5.0 x8 ***SLOT7 share lanes with 2 MCIO. When SLOT7 occupied, 1 MCIO will not function and 1 MCIO can be enabled by jumper setting. When selecting 1 MCIO, SLOT7 will switch to PCIex4. |
| Other PCIe Expansion Connectors | |
| M.2 slot |
1 M-key (PCIe5.0 x4 or 4 SATA 6Gb/s), supports 22110/2280 form factor 1 M-key** (PCIe5.0 x4), supports 22110/2280 form factor |
| Others |
2 MCIO*** (PCIe5.0 x4 or 4 SATA 6Gb/s) 1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s) 1 MCIO** (PCIe5.0 x4) |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC 9005/9004 (16 SATA 6Gb/s): 3 MCIO, 4 SATA via optional M2U2_HD_G4 M.2 device |
| Ethernet | |
| Additional Ethernet Controller | Broadcom BCM57416: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| Dedicated IPMI LAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |

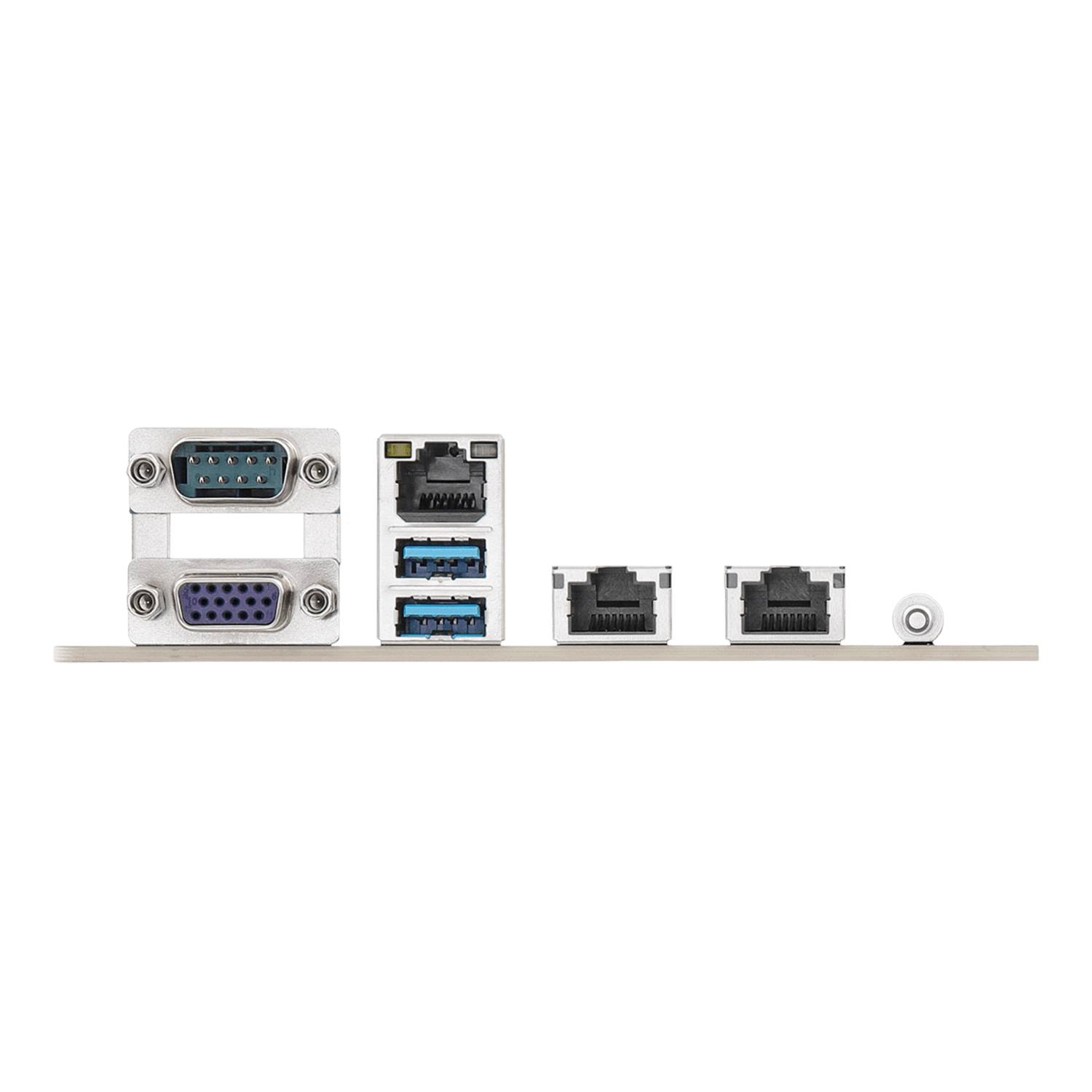

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Video Port | 1 DB15 (VGA) |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 3 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Speaker Header | 1 (4-pin) |
| Fan Header | 8 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 8 |
| BMC Heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, TR1 Temperature sensing |
| Fan |
CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | VCORE,VCCSA,VCCM,3V, 5V, 12V, +1.05V_PCH_AUX,+BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP |
| Supported OS | |
| OS |
Microsoft® Windows: (for EPYC 9004) - Server 2019 (64 bit) - Server 2022 (64 bit) Microsoft® Windows: (for EPYC 9005) - Server 2019 (64 bit) - Server 2022 (64 bit) - Server 2025 (64 bit) Linux: (for EPYC 9004) - RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64 bit) / Server 9.0 (64 bit) / Server 9.1 (64 bit) - SUSE SLES 15.4 (64 bit) - UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit) Linux: (for EPYC 9005) - RedHat Enterprise Linux Server 8.10 (64bit) / Server 9.4 (64 bit) - SUSE SLES 15.6 (64 bit) - UBuntu 22.04.5 (64 bit) / 24.04.2 (64 bit) Hypervisor: (for EPYC 9004) - VMWare® ESXi 8.0 Hypervisor: (for EPYC 9005) - VMWare® ESXi 9.0 |
| Environment | |
| Temperature | Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C |
| Humidity | Non-operating humidity: 20% ~ 90% (non-condensing) |
