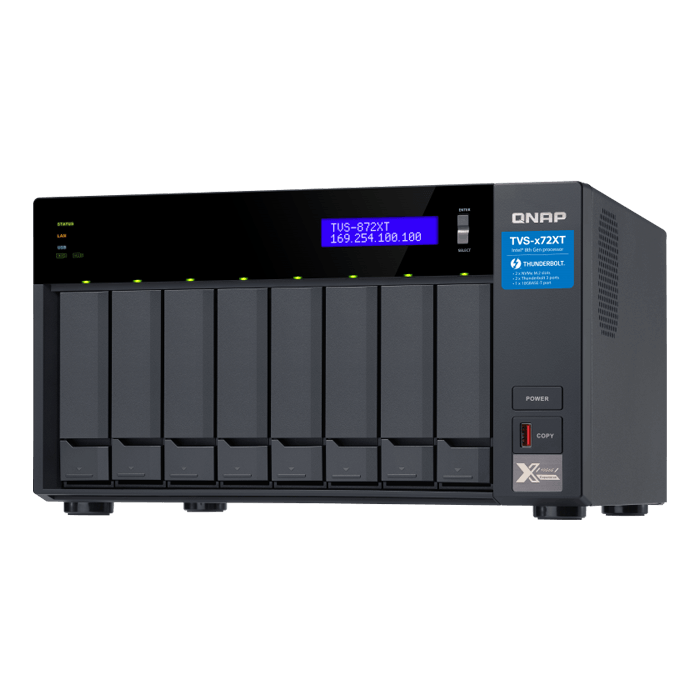

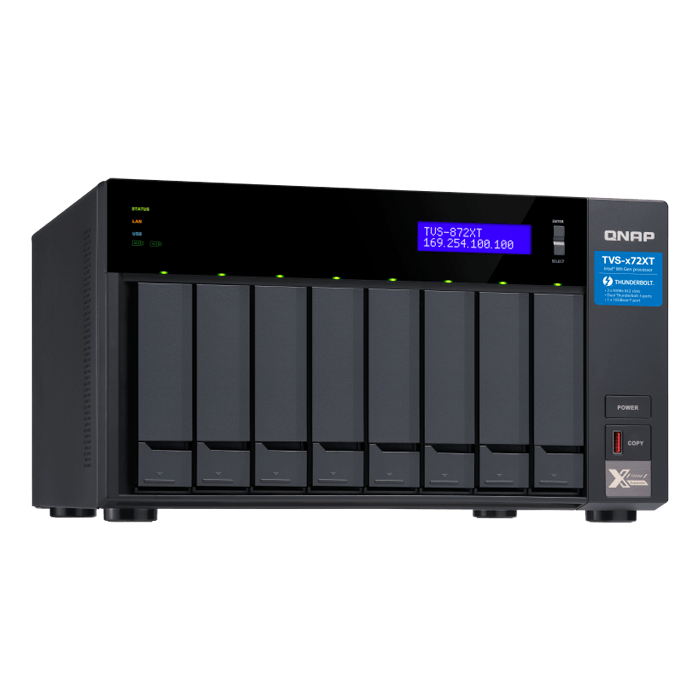

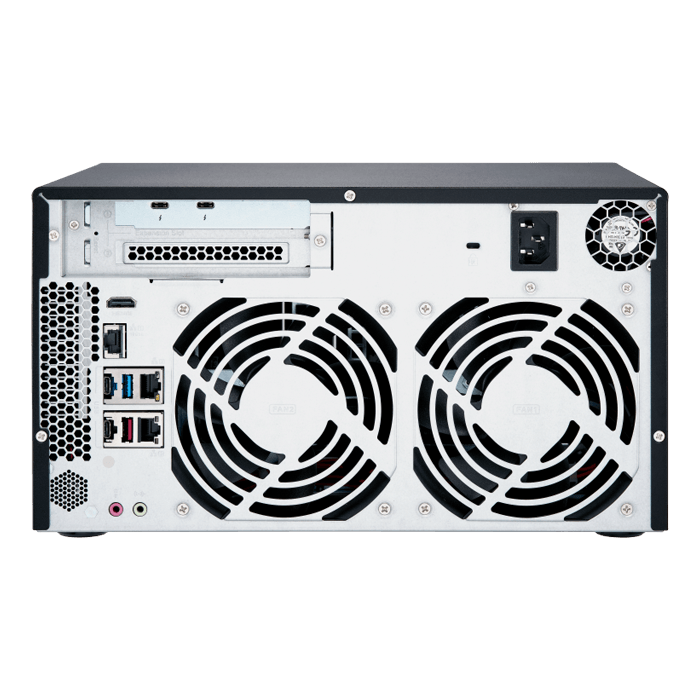

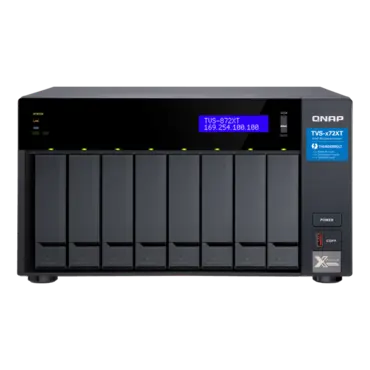

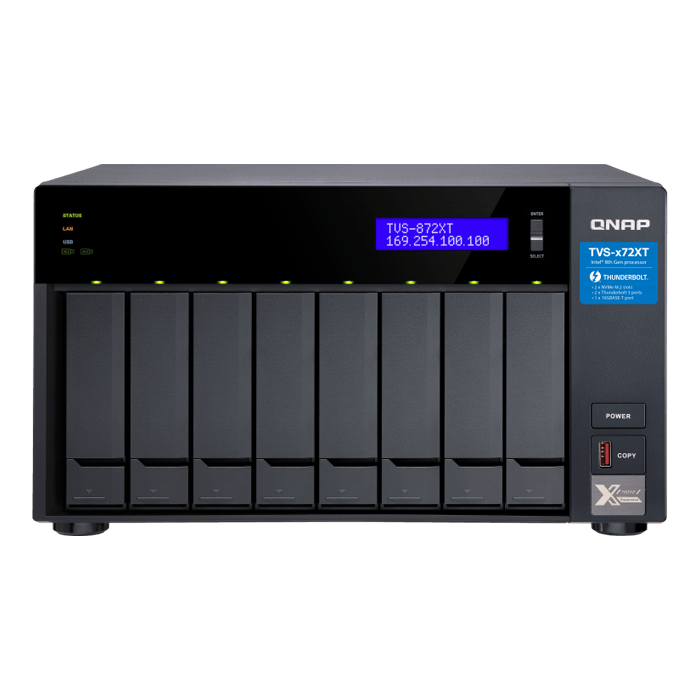

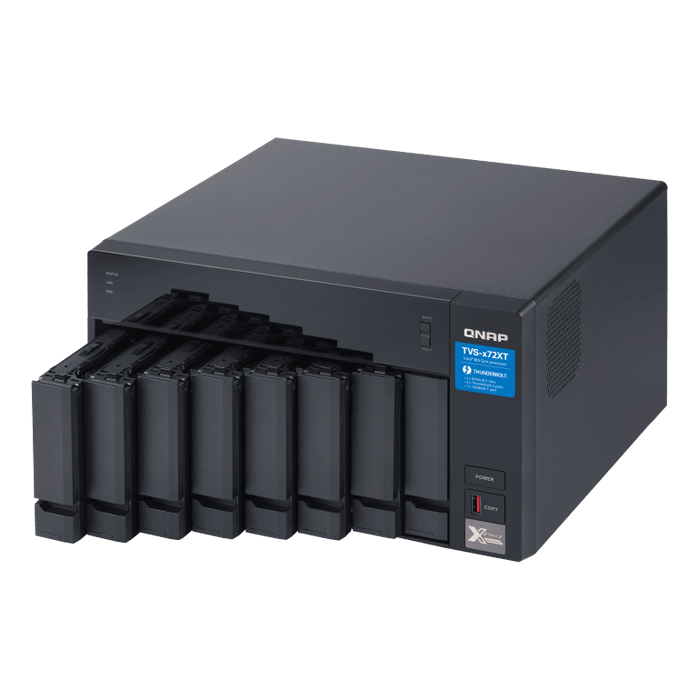

TVS-872XT 8-bay NAS Server, Intel® Core™ i5-8400T 3.3 GHz, 32GB DDR4 RAM (16GB pre-installed), SATA 6Gb/s, M.2 / 2, GbLAN / 2, 10GbLAN / 1, USB 3.1 Gen 2 / 4, Thunderbolt 3 / 2, 250W PSU
Quantity:
- SKU: 12421006
- Manufacturer: QNAP
- MPN: TVS-872XT-I5-16G-US
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$2,058.49
TVS-872XT 8-bay NAS Server, Intel® Core™ i5-8400T 3.3 GHz, 32GB DDR4 RAM (16GB pre-installed), SATA 6Gb/s, M.2 / 2, GbLAN / 2, 10GbLAN / 1, USB 3.1 Gen 2 / 4, Thunderbolt 3 / 2, 250W PSU
Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-872XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-872XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-872XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-872XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-872XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-872XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
| CPU | Intel® Core™ i5-8400T 6-core 1.7 GHz Processor, Max turbo to 3.3 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 630 |
| Floating Point Unit | ✓ |
| Encryption Engine | ✓ (AES-NI) |
| Hardware-accelerated Transcoding | ✓ |
| System Memory | 16 GB SODIMM DDR4 (2 x 8 GB) |
| Maximum Memory | 32 GB ( 2 x 16 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays:
3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✓ |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x2 slots |
| SSD Cache Acceleration Support | ✓ |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Jumbo Frame | ✓ |
| Thunderbolt Port | 2 (Thunderbolt™ 3) |
| PCIe Slot | 2
Slot 1: PCIe Gen 3 x16 (CPU) Slot 2: PCIe Gen 3 x4 (PCH) Slot 1 is preinstalled with a Thunderbolt 3 adapter
|
| USB 3.0 port | 1 |
| USB 3.1 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps |
| IR Sensor | (QNAP RM-IR004 & MCE) |
| HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
| Audio Input | 1 x 3.5mm microphone input jacks |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm line out jack (for ampfliers or speakers) |
| Form Factor | Tower |
| LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | ✓ |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 188.2 × 329.3 × 279.6 mm |
| Weight (Net) | 7.06 kg |
| Weight (Gross) | 9.19 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: HDD Sleep Mode | 41.47 W |
| Power Consumption: Operating Mode, Typical | 65.03 W
With WD10EFRX drives fully populated
|
| Fan | System: 2 x 12cm fan (12V DC)
CPU: 2 x 6cm blower fan |
| Sound Level | 24.2 db(A) |
| System Warning | Voice prompts or Buzzer |
| Kensington Security Slot | ✓ |
