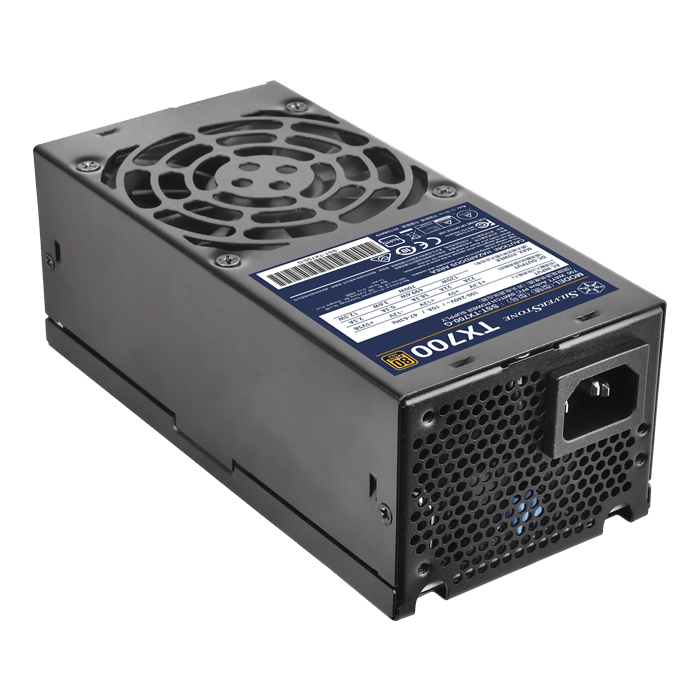

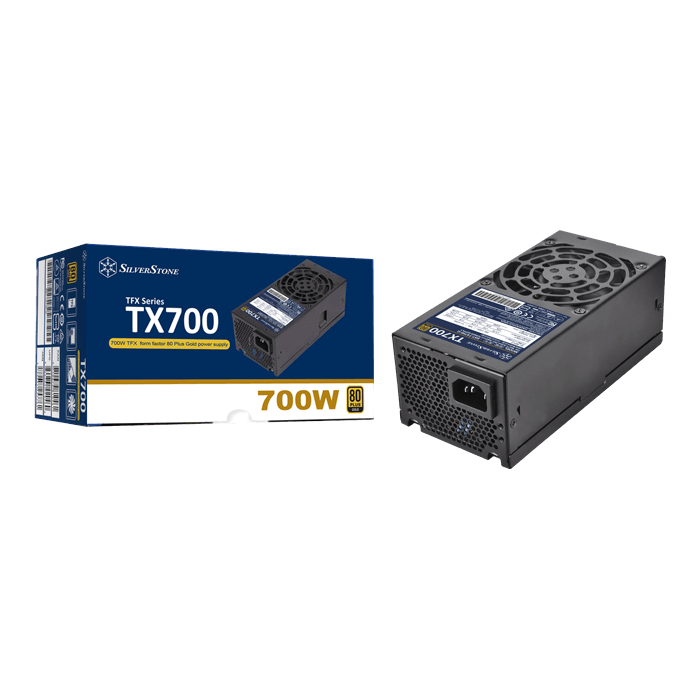

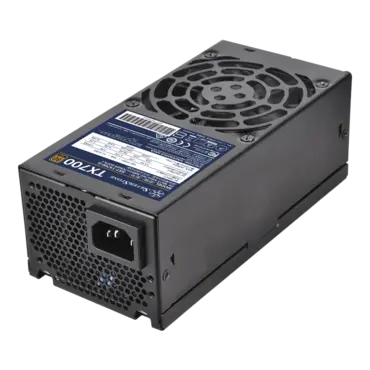

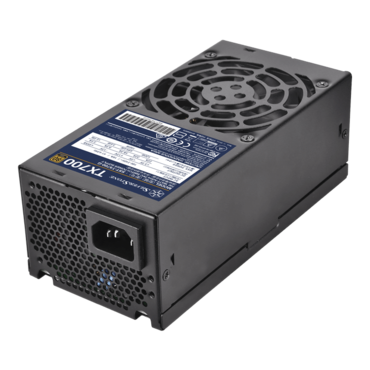

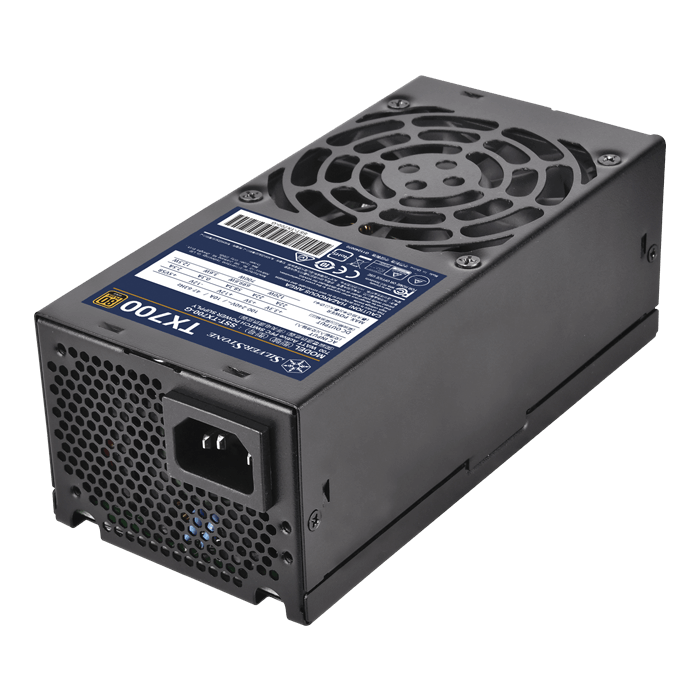

TX700 Gold, 80 PLUS Gold 700W, No Modular, TFX Power Supply
- SKU: 13836643
- Manufacturer: SILVERSTONE
- MPN: SST-TX700-G
- Availability: LOW STOCK
Price
$198.95
- Support standard TFX form factor
- 700W continuous power output at 50°C operating temperature rated for 24/7 operation
- High efficiency with 80 PLUS Gold certification
- Silent running 80mm fan with 18 dBA minimum
- Multiple protection circuitry
- Single PCI-E 6+2pin connectors support
| Product No. | SST-TX700-G | ||||
| Max. DC Output | 700W | ||||
| Power density | 724W per liter | ||||
|
|
|||||
| +3.3V | +5V | +12V | +5VSB | -12V | |
| Max.(Amps) | 22A | 22A | 58.3A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
| Model (on safety) | SST-TX700-G | ||||
| Color | black (lead-free paint) | ||||
| Combined +3.3V & +5V | 120W | ||||
| Combined +12V | 699.6W | ||||
| Input Voltage | 90 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.9 at full load) | ||||
| Efficiency | 87% ~ 90% (at 20% ~ 100% loading) | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0 ~ 50°C | ||||
| Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
||||
| Connectors |
1 x 24 / 20-Pin motherboard connector (350mm) 2 x 8 / 4-Pin EPS / ATX 12V connector (450mm / 150mm) 4 x 8 / 6-Pin PCIE connector ("350mm / 150mm" x 2) 6 x SATA connector ("350mm / 150mm / 150mm" x 2) 2 x 4-Pin Peripheral connector (350mm / 150mm) 2 x 4-Pin Peripheral and 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm) |
||||
| Cooling System | Single 80mm silent HYB fan | ||||
| Form factor | TFX | ||||
| Noise Level | 18 dBA minimum | ||||
| Dimension |
85mm (W) x 65mm (H) x 175mm (D) 3.35" (W) x 2.56" (H) x 6.89" (D) |
||||
| Weight | 1.49 kg | ||||
| Certification | 80 PLUS Gold | ||||
| Other |
GPU Support list Compatible with ATX12V v2.4 |
||||
| * Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. | |||||
