| Processor |
Q'ty / Socket Type |
(1) LGA1700 |
| Supported CPU Series |
Intel Xeon E-2400 |
| Thermal Design Power Wattage |
Max up to 95W (TDP) |
| Chipset |
PCH |
Intel C266 |
| Memory |
Supported DIMM Qty |
(4) DIMM slots |
| DIMM Type / Speed |
DDR5 ECC UDIMM 4800 (1DPC) |
| Capacity |
Up to 128GB UDIMM |
| Memory channel |
2 Channels per CPU |
| Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(1) PCIe Gen.3 x4 slot (w/ x2 link) / (1) PCIe Gen.4 x8 slot ( w/ x4 link) / (1) PCIe Gen.5 x16 slot |
| Others |
(1) MCIO x4 connector (PCIe Gen.4 x4) |
| LAN |
Q'ty / Port |
(2) 25GbE ports ( from LAN Mezzanine card )+ (1) GbE ports + (1) GbE dedicated for IPMI |
| Controller |
Broadcom BCM57502 / Intel I210-AT |
| PHY |
Realtek RTL8211F |
| Storage SATA |
Connector |
(2) SATA-DOM / (2) SATA / (1) Mini-SAS HD for (4) SATA ports |
| Controller |
Intel C266 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe Gen.4 interface) |
| Graphic VGA |
Connector type |
D-Sub 15-pin |
| Chipset |
Aspeed AST2600 |

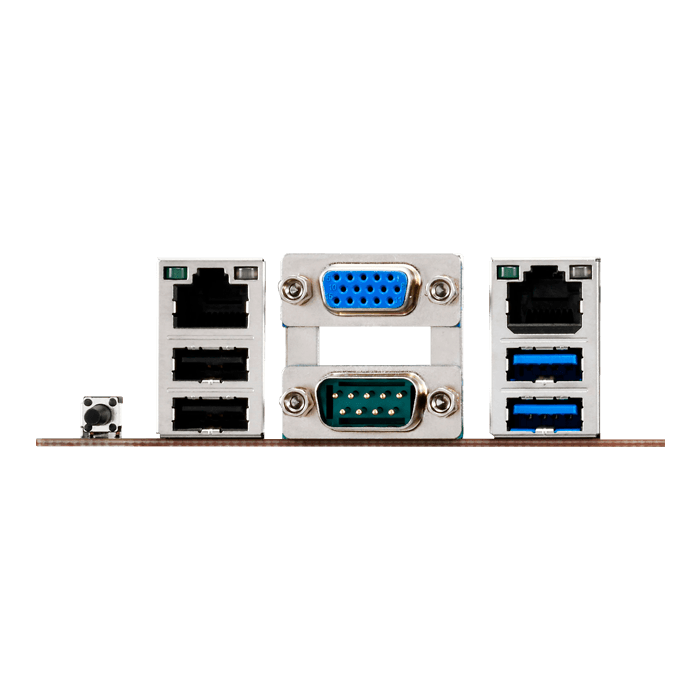

| Input /Output |
USB |
(1) USB2.0 port / (1) Dual Port USB2.0 header / (1) USB2.0 connector ( Type-A ) / (1) USB3.2 Gen.1 header / (1) USB3.2 Gen.1 ports |
| COM |
(1) header |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(1) GbE port + (1) GbE dedicated for IPMI |
| SATA |
(2) SATA-III connectors / (1) Mini-SAS HD (SFF-8643) connector / (2) SATA-DOM connectors |
| Power |
(1) 2x4 Power input connector |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Fan |
Total (6) 4-pin headers |
| Temperature |
Monitors temperature for CPU & memory |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.5.0/PnP/Wake on LAN / ACPI 6.4 |
| Physical Dimension |
Form Factor |
Micro ATX |
| Board Dimension |
9.6" x 9.6" (243.8 x 243.8mm) |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| BSMI |
Yes |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Package Contains |
Motherboard |

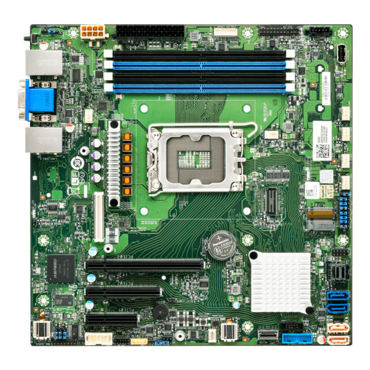

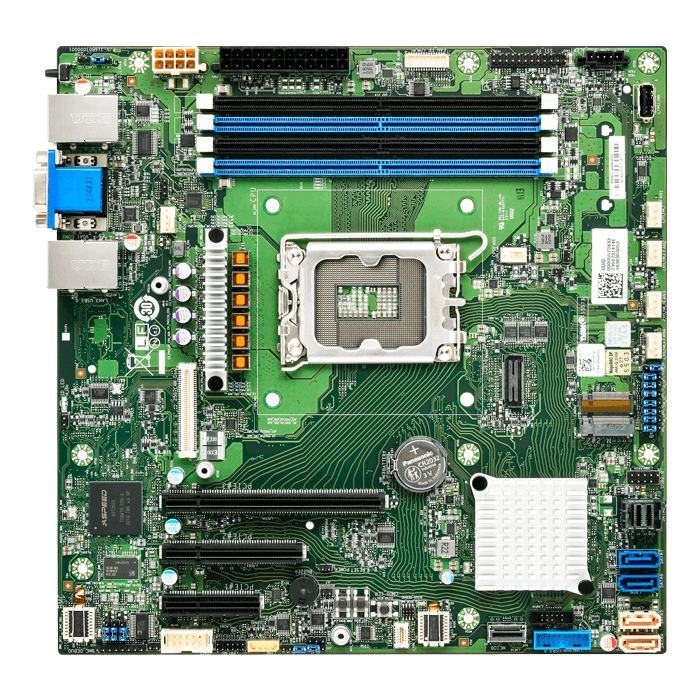

(1) S5573 Motherboard |
| Manual |
(1) Quick Installation Guide |
| I/O Shield |
(1) I/O Shield |
| Cable SATA |
(2) SATA signal cables |
