Processor | Q'ty / Socket Type | (2) LGA4189 | |
Supported CPU Series | Intel Xeon Scalable Processor / 3nd Gen Intel Xeon Scalable Processor | ||
Thermal Design Power (TDP) Wattage | Max up to 220W | ||
System Bus | Up to 11.2/10.4 GT/s with Intel UltraPath Interconnect (UPI) support | ||
Chipset | PCH | Intel C621A | |
Memory | Supported DIMM Qty | (8)+(8) DIMM slots | |
DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | ||
Capacity | Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS | ||
Memory channel | 8 Channels per CPU | ||
Memory voltage | 1.2V | ||
Expansion Slots | PCI-E | (2) PCI-E Gen3/Gen4 x32 slots (slot #6.5, #6) | |
Others | (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) | ||
LAN | Q'ty / Port | (2) GbE ports, (1) GbE dedicated for IPMI | |
Controller | Intel I210-AT | ||
PHY | Realtek RTL8211E | ||
Storage | SATA | Connector | (14) SATA |
Speed | 6Gb/s | ||
RAID | RAID 0/1/10/5 (Intel RSTe) | ||
NVMe | Connector (M.2) | (1) 22110/2280/2242 (by PCI-E interface) | |
Connector (Slim SAS) | (4) SFF-8654 for (8) NVMe ports | ||
Graphic | Connector type | D-Sub 15-pin | |
Resolution | Up to 1920x1200 | ||
Chipset | Aspeed AST2500 | ||

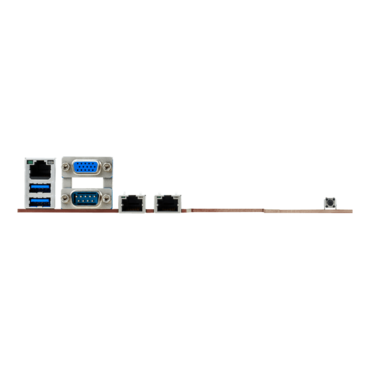

Input /Output | Others | (1) ID button | |
USB | (2) USB3.0 ports (@ rear) / (1) USB3.0 ports (via cable) | ||
COM | (1) DB-9 COM Connector | ||
VGA | (1) D-Sub 15-pin VGA port (@ rear) | ||
RJ-45 | (2) GbE ports, (1) GbE dedicated for IPMI | ||
SATA | (2) SATA-III connectors + (3) Mini-SAS HD (4-in-1) connectors | ||
Power | SSI 24-pin + 8-pin + 8-pin power connectors | ||
TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
System Monitoring | Chipset | Aspeed AST2500 | |
Fan | Total (6) 4-pin headers | ||
Temperature | Monitors temperature for CPU & memory & system environment | ||
Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
Others | Watchdog timer support | ||
Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
BIOS | Brand / ROM size | AMI / 32MB | |
Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / ACPI sleeping states S5 | ||
Physical Dimension | Form Factor | EATX | |
Board Dimension | 13.1” x 12” (333.2 mm X 306.8mm) | ||
Regulation | FCC (DoC) | Class A | |
CE (DoC) | Class A | ||
RCM | Class A | ||
VCCI | Class A | ||
Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
RoHS | RoHS 6/6 Compliant | Yes | |
Operating System | OS supported list | Please refer to our AVL support lists. | |

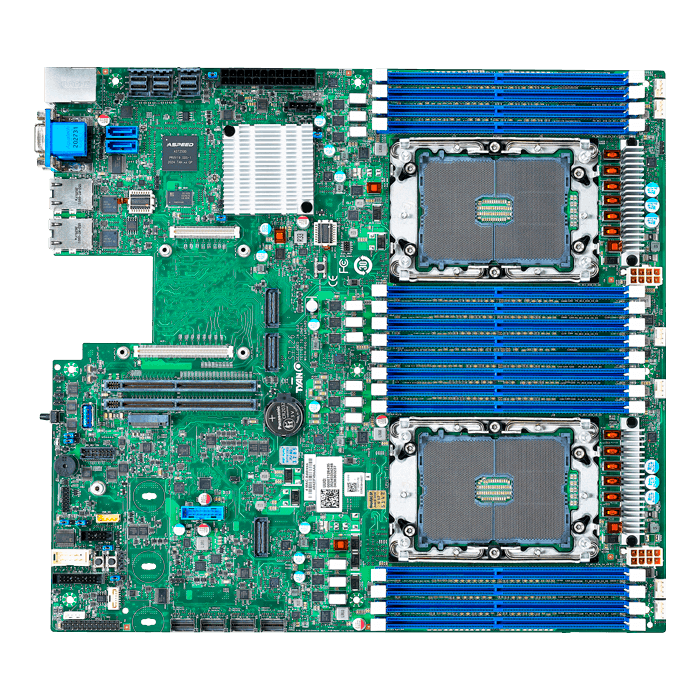

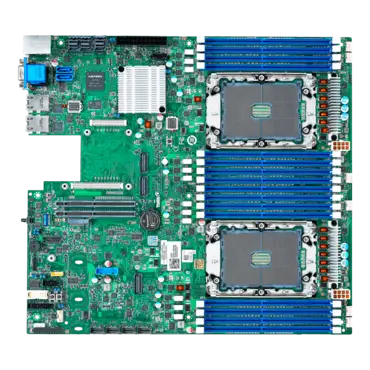

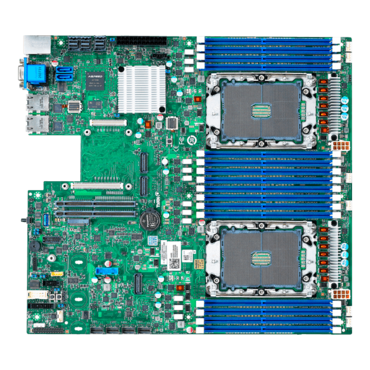

Package Contains | Motherboard | (1) S7126 Motherboard | |
Manual | (1) Quick Installation Guide | ||
I/O Shield | (1) I/O Shield | ||
Others | (1) M.2 latch / (2) CPU carrier | ||
Cable | SATA | (2) SATA signal cables |
