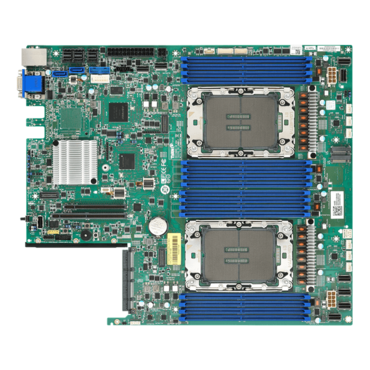

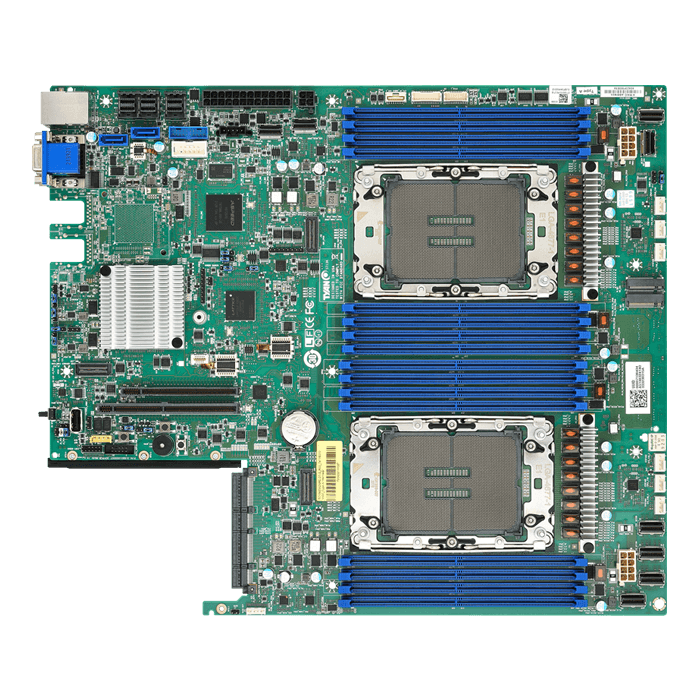

Tempest CX S7136 (S7136GMRE), Intel® C741, 2x LGA 4677, DDR5-4800 2TB ECC LRDIMM / 16, VGA, M.2 / 2, USB 3.2 / 2, U.2 Port / 8, Proprietary Retail

Quantity:
  • SKU: 15699541
  • Manufacturer: TYAN
  • MPN: S7136GMRE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,006.24
Quantity:
Processor Q'ty / Socket Type (2) LGA4677
Supported CPU Series Intel Xeon Scalable Processors
Thermal Design Power Wattage Max up to 350W (TDP)
Chipset PCH Intel C741
Memory Supported DIMM Qty (8)+(8) DIMM slots
DIMM Type / Speed RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / 3DS RDIMM DDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC
Capacity Up to 2,048GB RDIMM / LRDIMM DDR5 4800 *Follow latest Intel DDR5 Memory POR
Memory channel 8 Channels per CPU
Memory voltage 1.1V
Expansion Slots PCIe (1) PCIe Gen.5 x28 slot / (1) PCIe Gen.5 x24 slot
Others (1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot
LAN Q'ty / Port (1) GbE dedicated for IPMI
PHY Realtek RTL8211F
Storage SATA Connector (14) SATA
Controller Intel C741
Speed 6Gb/s
Storage NVMe Connector (M.2) (2) 2280 (by PCIe.4 interface)
Connector (U.2) (8) MCIO x4
Graphic VGA Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
Input /Output USB (2) USB3.2 Gen.1 ports (@rear)
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin port
RJ-45 (1) GbE port dedicated for IPMI
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported list.
Interface SPI
System Monitoring Chipset Aspeed AST2600
Fan Total (6) 4-pin headers
Temperature Monitors temperature for CPU, memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 64MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.0 / ACPI sleeping states S0, S5
Physical Dimension Form Factor Proprietary
Board Dimension 14.18" x 12.16" (360.2 x 308.8mm)
Regulation FCC (SDoC) Class A
CE (DoC) Class A
RCM Class A
VCCI Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S7136 Motherboard
Manual (1) Quick Installation Guide
Cable SATA (2) SATA signal cables
Others (1) OCP 3.0 Slide Rail / (1) M.2 Card Latch / (2) MCC Carrier / (2) XCC Carrier
