| System |
Form Factor |
1U Rackmount |
| Chassis Model |
GX40 |
| Dimension (D x W x H) |
16.1" x 19" x 1.75" (400 x 438.5 x 43.2mm) |
| Motherboard Name |
S5573GMNR-HE |
| Board Dimension |
Micro-ATX, 9.6’’x 9.6’’ |

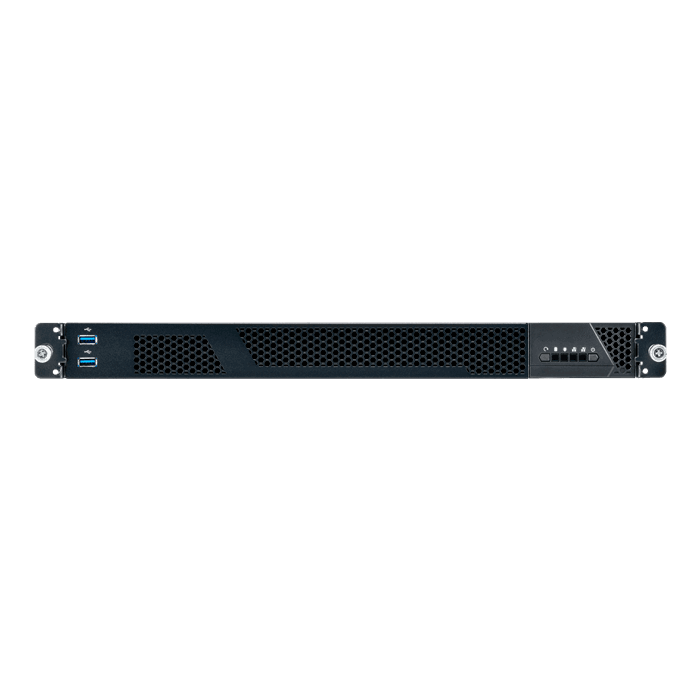

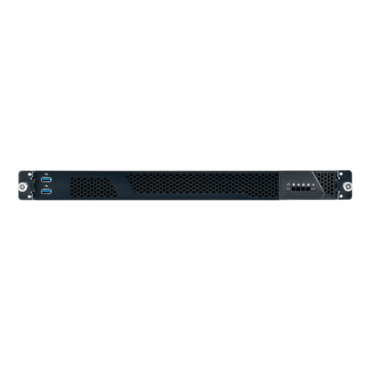

| Front Panel |
Buttons |
(1) PWR / (1) RST |
| LEDs |
(1) PWR / (1) HDD / (2) LAN |
| I/O Ports |
(2) USB 3.2 Gen.1 ports |
| Internal Drive Bay |
Type / Q'ty |
(2) 2.5" Fixed SSDs / (2) 3.5" Fixed HDDs |
| Supported HDD Interface |
(4) SATA 6Gb/s |
| System Cooling Configuration |
Fan |
(3) 4028 fans |
| Power Supply |
Type |
PSU |
| Input Range |
AC 100-240V/6-3A |
| Frequency |
50-60 Hz |
| Output Watts |
300 Watts |
| Efficiency |
80 plus Gold |
| Processor |
Q'ty / Socket Type |
(1) LGA1700 |
| Supported CPU Series |
Intel Xeon E-2400 series Processors |
| Thermal Design Power Wattage |
Max up to 95W (TDP) |
| Chipset |
PCH |
Intel C266 |
| Memory |
Supported DIMM Qty |
(4) DIMM slots |
| DIMM Type / Speed |
DDR5 ECC UDIMM 4800 |
| Capacity |
Up to 128GB UDIMM |
| Memory channel |
2 Channels per CPU |
| Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(1) PCIe Gen.5 x16 slot |
| LAN |
Q'ty / Port |
(1) GbE port + (1) GbE dedicated for IPMI |
| Controller |
Intel I210 |
| PHY |
Realtek RTL8211FD-CG |
| Storage SATA |
Connector |
(4) SATA |
| Controller |
Intel C266 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe Gen.4 interface) |
| Graphic |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920x1200 |
| Chipset |
Aspeed AST2600 |

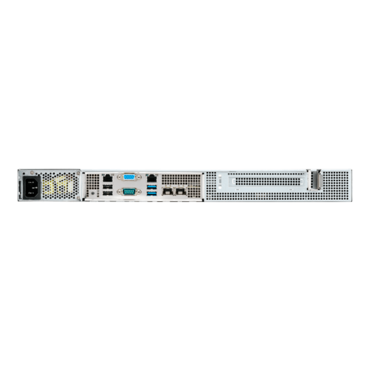

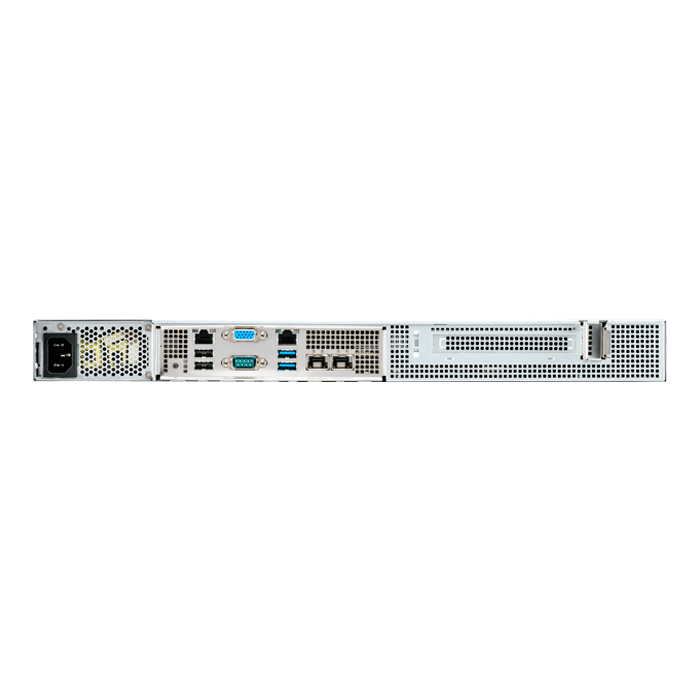

| I/O Ports |
USB |
(2) USB2.0 ports / (4) USB3.2 Gen.1 ports |
| COM |
(1) DB-9 COM port |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(1) GbE ports + (1) GbE dedicated for IPMI |
| Button |
UID Button / Power Button / Reset Button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Temperature |
Monitors temperature for CPU & memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.5/PnP/Wake on LAN / ACPI 6.4 / ACPI sleeping states S0, S5 |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| BSMI |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support list |
| RoHS |
RoHS 2.0 |
Yes |
| Package Contains |
Barebone |
(1) GX40-B5573 Barebone |
| Manual |
(1) Quick Installation Guide |
