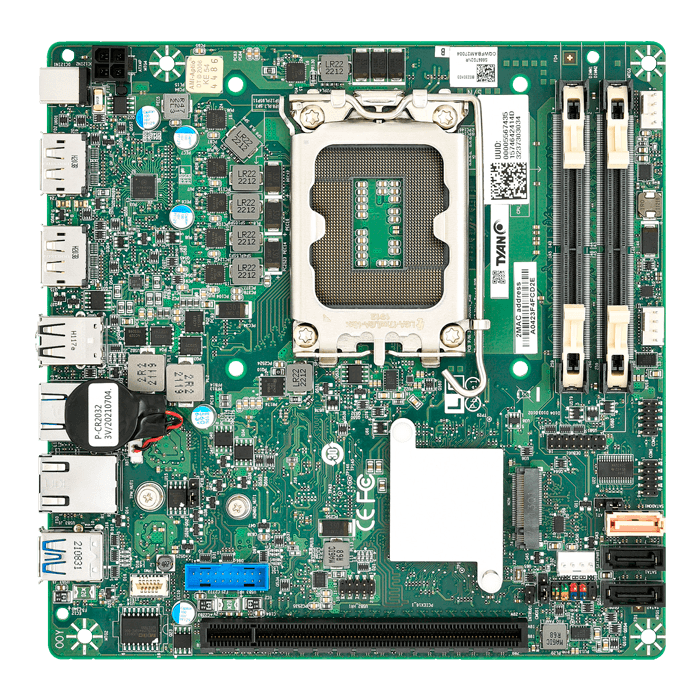

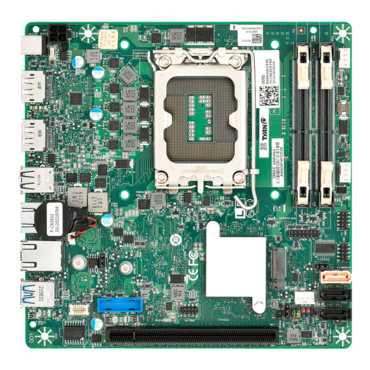

Tempest EX S5567 (S5567G2NR), Intel® H610, LGA 1700, Thin Mini-ITX Motherboard

Quantity:
  • SKU: 17526874
  • Manufacturer: TYAN
  • MPN: S5567G2NR
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$183.42
Quantity:
Processor Q'ty / Socket Type (1) LGA1700
Supported CPU Series Intel Core i9/i7/i5/i3 Processors / 12 Gen.
Thermal Design Power Wattage Max up to 65W (TDP)
Chipset PCH Intel H610
Super I/O NCT6126D
Memory Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed DDR4 SO-DIMM 3200
Capacity Up to 64GB
Memory channel 2 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCIe (1) PCIe Gen.4 x16 slot
LAN Q'ty / Port (1) GbE + (1) 2.5GbE
Controller Intel I219-LM (Intel AMT support) / Intel I225V
Storage SATA Connector (1) SATA-DOM / (2) SATA
Controller Intel H610
Speed 6Gb/s
Storage NVMe Connector (M.2) (1) 2280 (by PCIe 4 interface)
Storage (Optional) VROC Support No
Graphic Display Port Connector type (2) Display ports 1.4
Resolution Up to 4096X2304 @60Hz
Chipset Intel H610
Input /Output USB (2) USB2.0 ports (via cable) / (2) USB2.0 ports (@ rear) / (2) USB3.2 Gen.1 ports (via cable) / (2) USB3.2 Gen.2 ports (@rear)
COM (2) headers
RJ-45 (1) GbE port + (1) 2.5GbE port
SATA (2) SATA-III connectors / (1) SATA-DOM connector
Power DC12V / ATX 4-pin
Display port (2) Display ports 1.4
TPM (Optional) TPM Support Please refer to our TPM supported list.
Interface SPI
System Monitoring Chipset NCT6126D
Fan Total (2) 4-pin headers
Temperature Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Processor fail LED indicator
AMT Feature Support Power on/ Power off/ Restart at remote side
Others Watchdog timer support
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S5
Physical Dimension Form Factor Thin Mini-ITX
Board Dimension 6.69" x 6.69" (170 x 170mm)
Regulation FCC (SDoC) Class B
CE (DoC) Class B
RCM Class B
VCCI Class B
Operating Environment Operating Temp. 0° C ~ 55° C (32° F~ 131° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5567 Motherboard
Manual (1) Quick Installation Guide
I/O Shield (1) I/O Shield
Cable SATA (1) SATA power cable / (2) SATA signal cables
