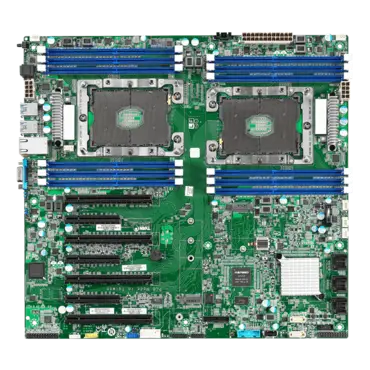

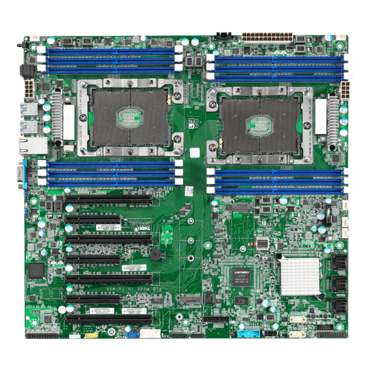

Tempest EX S7100-EX (S7100AGM2NR-EX), Intel C621, LGA 3647 / 2, DDR4-2666 1.5TB 3DS LRDIMM / 12, SATADOM / 2, VGA, GbLAN / 2, SSI EEB Retail
Quantity:
- SKU: 12270381
- Manufacturer: TYAN
- MPN: S7100AGM2NR-EX
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$624.44
- Wide Operating Temperature 0° C ~ 55° C
- 7-year Longevity of Supply
- EMC Class B certification
- 12" x 13" SSI EEB form factor
- Dual socket Xeon Scalable Processor
- 12 DIMM slots supporting up to 1.5TB DDR4 RAM
- 14 SATA 6G ports
- 2 NVMe M.2 ports (one 2280 + one 2242)
- 2 1000Base-T LAN ports
- 4 DW PCIe x16 slots for GPUs
- 7.1 Channel HD Audio
- AST2500 BMC with IPMI 2.0 & Redfish support
| Processor | Q'ty / Socket Type | (2) LGA3647 | |||
| Supported CPU Series | Intel Xeon Scalable Processor | ||||
| Thermal Design Power (TDP) Wattage | Max up to 205W | ||||
| System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | ||||
| Chipset | PCH | Intel C621 | |||
| Memory | Supported DIMM Qty | (6)+(6) DIMM slots | |||
| DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 | ||||
| Capacity | Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||||
| Memory channel | 6 Channels per CPU | ||||
| Memory voltage | 1.2V | ||||
| Expansion Slots | PCI-E | (4) PCI-E Gen3 x16 slots / (3) PCI-E Gen3 x8 slots | |||
| LAN | Q'ty / Port | (2) GbE ports (1 port shared with IPMI) | |||
| Controller | Intel I350-AM2 | ||||
| Storage | SATA | Connector | (2) Mini-SAS HD (8-ports) | ||
| Controller | Intel C621 | ||||
| Speed | 6.0 Gb/s | ||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||||
| sSATA | Connector | (2) SATA-DOM / (1) Mini-SAS HD (4-ports) | |||
| Controller | Intel C621 | ||||
| Speed | 6.0 Gb/s | ||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||||
| NVMe | Connector (M.2) | (1) 2242 (by PCI-E interface) / (1) 2280/2260/2242 (by PCI-E interface) | |||
| Graphic | Connector type | D-Sub 15-pin | |||
| Resolution | Up to 1920x1200 | ||||
| Chipset | Aspeed AST2500 | ||||
| Audio | Chipset | Realtek ALC892-GR | |||
| Feature | High Definition Audio / 7.1 ch | ||||
| Input /Output | Others | (1) ID button | |||
| USB | (3) USB 2.0 ports (2 via cable, 1 Type-A) / (6) USB3.0 ports (4 at rear, 2 via cable) | ||||
| COM | (1) header | ||||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||||
| RJ-45 | (2) GbE ports | ||||
| Audio | (1) SPDIF OUT Connector / (1) 26-pin 7.1 ch HD Connector | ||||
| Front Panel | (1) 2 x 5 header | ||||
| SATA | (2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors | ||||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | ||||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |||
| System Monitoring | Chipset | Aspeed AST2510 | |||
| Fan | Total (6) 4-pin headers | ||||
| Temperature | Monitors temperature for CPU & memory & system environment | ||||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||||
| Others | Watchdog timer support | ||||
| Server Management | AST2510 iKVM Feature | Supports storage over IP and remote platform-flash / 24-bit high quality video compression / 10/100/1000 Mb/s MAC interface | |||
| AST2510 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||||
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||||
| BIOS | Brand / ROM size | AMI / 32MB | |||
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 | ||||
| Physical Dimension | Form Factor | SSI EEB | |||
| Board Dimension | 12"x13" (305x330mm) | ||||
| Regulation | FCC (DoC) | Class B | |||
| CE (DoC) | Class B | ||||
| Operating Environment | Operating Temp. | 0° C ~ 55° C (32° F~ 131° F) | |||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||||
| RoHS | RoHS 6/6 Compliant | Yes | |||
| Operating System | OS supported list | Please refer to our AVL support lists. | |||
| Package Contains | Motherboard | (1) S7100 Motherboard | |||
| Manual | (1) Quick Installation Guide | ||||
| Installation CD | (1) TYAN Device Driver CD | ||||
| I/O Shield | (1) I/O Shield | ||||
| Cable | SATA | (2) SATA signal cables | |||
