| Processor |
Q'ty / Socket Type |
(1) LGA4677 |
| Supported CPU Series |
4th Gen. Intel Xeon Scalable Processors |
| Thermal Design Power Wattage |
Max up to 350W (TDP) |
| Chipset |
PCH |
Intel C741 |
| Memory |
Supported DIMM Qty |
(8) DIMM slots |
| DIMM Type / Speed |
DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) |
| Capacity |
Up to 1,024GB RDIMM/2,048GB 3DS RDIMM 4800/4400 memory *Follow latest Intel DDR5 Memory POR |
| Memory channel |
8 Channels per CPU |
| Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(1) PCIe Gen.5 x8 slot / (4) PCIe Gen.5 x16 slots |
| LAN |
Q'ty / Port |
(1) GbE port + (1) GbE dedicated for IPMI |
| Controller |
Intel I210 |
| PHY |
Realtek RTL8211F |
| Storage SATA |
Connector |
(6) SATA |
| Controller |
Intel C741 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(1) 2280 (by PCIe.3 interface) |
| Connector (U.2) |
(1) MCIO x8 |
| Storage (Optional) |
VROC Support |
Yes |
| Graphic VGA |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920x1200 @60Hz |
| Chipset |
Aspeed AST2600 |

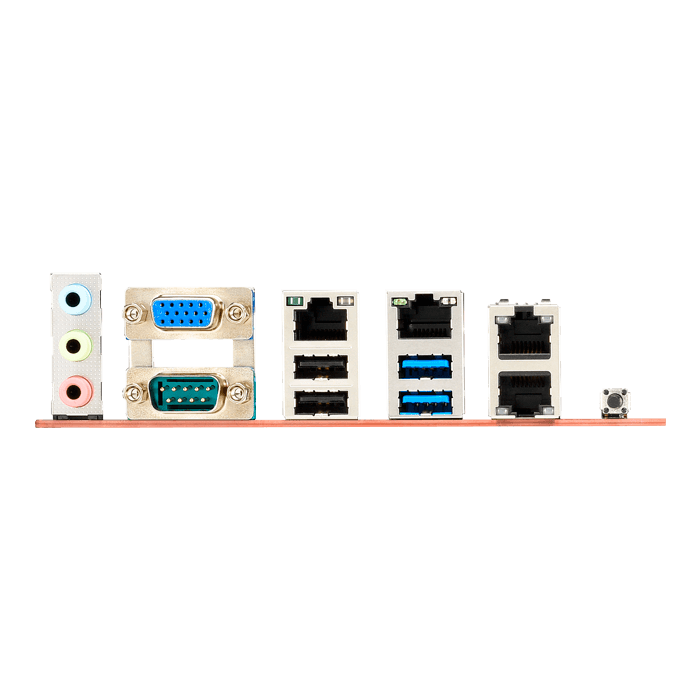

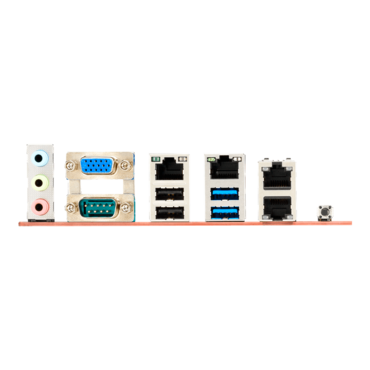

| Input /Output |
USB |
(1) USB2.0 port ( Type-A ) / (2) USB2.0 ports (@ rear) / (2) USB3.2 Gen.1 ports |
| COM |
(1) DB-9 COM Connector (@ rear) |
| VGA |
(1) D-Sub 15-pin VGA port (@ rear) |
| RJ-45 |
(1) GbE port + (1) GbE dedicated for IPMI |
| Front Panel |
(1) 2x12-pin SSI front panel header |
| Audio |
(1) 2x5-pin header / (1) 3 holes Audio Jack connector |
| SATA |
(6) SATA-III connectors |
| Power |
(1) ATX 24-pin + (2) 8-pin + (1) 4-pin power connectors |
| Others |
(1) UID button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Fan |
Total (6) 4-pin headers |
| Temperature |
Monitors temperature for CPU, memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Others |
Watchdog timer support |
| Audio |
Chipset |
Realtek ALC888S |
| Feature |
2.1 ch |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5 |
| Physical Dimension |
Form Factor |
SSI CEB compatible |
| Board Dimension |
12” x 10.5” (305 x 267mm) |
| Regulation |
FCC (SDoC) |
Class B |
| CE (DoC) |
Class B |
| RCM |
Class B |
| VCCI |
Class B |
| Operating Environment |
Operating Temp. |
0° C ~ 40° C (32° F~ 104° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Package Contains |
Motherboard |

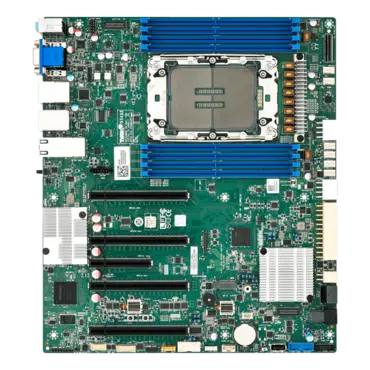

(1) S5652 Motherboard |
| Manual |
(1) Quick Installation Guide |
| I/O Shield |
(1) I/O Shield |
| Cable SATA |
(2) SATA signal cables |
| Others |
(1) M.2 Card Latch / (2) MCC Carrier / (2) XCC Carrier |
