Processor | Q'ty / Socket Type | (2) LGA3647 | |||
Supported CPU Series | Intel Xeon Scalable Processor | ||||
Thermal Design Power (TDP) Wattage | Max up to 205W | ||||
System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | ||||
Chipset | PCH | Intel C621 | |||
Memory | Supported DIMM Qty | (6)+(6) DIMM slots | |||
DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 | ||||
Capacity | Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||||
Memory channel | 6 Channels per CPU | ||||
Memory voltage | 1.2V | ||||
Expansion Slots | PCI-E | (4) PCI-E Gen3 x16 slots / (3) PCI-E Gen3 x8 slots | |||
LAN | Q'ty / Port | (2) GbE ports (1 port shared with IPMI) | |||
Controller | Intel I350-AM2 | ||||
Storage | SATA | Connector | (2) Mini-SAS HD (8-ports) | ||
Controller | Intel C621 | ||||
Speed | 6.0 Gb/s | ||||
RAID | RAID 0/1/10/5 (Intel RSTe) | ||||
sSATA | Connector | (2) SATA-DOM / (1) Mini-SAS HD (4-ports) | |||
Controller | Intel C621 | ||||
Speed | 6.0 Gb/s | ||||
RAID | RAID 0/1/10/5 (Intel RSTe) | ||||
NVMe | Connector (M.2) | (1) 2242 (by PCI-E interface) / (1) 2280/2260/2242 (by PCI-E interface) | |||
Graphic | Connector type | D-Sub 15-pin | |||
Resolution | Up to 1920x1200 | ||||
Chipset | Aspeed AST2500 | ||||
Input /Output | Others | (1) ID button | |||
USB | (3) USB 2.0 ports (2 via cable, 1 Type-A) / (6) USB3.0 ports (4 at rear, 2 via cable) | ||||
COM | (1) header | ||||
VGA | (1) D-Sub 15-pin VGA port (at rear) | ||||
RJ-45 | (2) GbE ports | ||||
Front Panel | (1) 2 x 5 header | ||||
SATA | (2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors | ||||
Power | SSI 24-pin + 8-pin + 8-pin power connectors | ||||
TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |||
System Monitoring | Chipset | Aspeed AST2500 | |||
Fan | Total (6) 4-pin headers | ||||
Temperature | Monitors temperature for CPU & memory & system environment | ||||
Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||||
LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||||
Others | Watchdog timer support | ||||
Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |||
AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||||
AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||||
BIOS | Brand / ROM size | AMI / 32MB | |||
Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 | ||||
Physical Dimension | Form Factor | SSI EEB | |||
Board Dimension | 12"x13" (305x330mm) | ||||
Regulation | FCC (DoC) | Class B | |||
CE (DoC) | Class B | ||||
Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |||
Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||||
In/Non-operating Humidity | 90%, non-condensing at 35° C | ||||
RoHS | RoHS 6/6 Compliant | Yes | |||
Operating System | OS supported list | Please refer to our AVL support lists. | |||

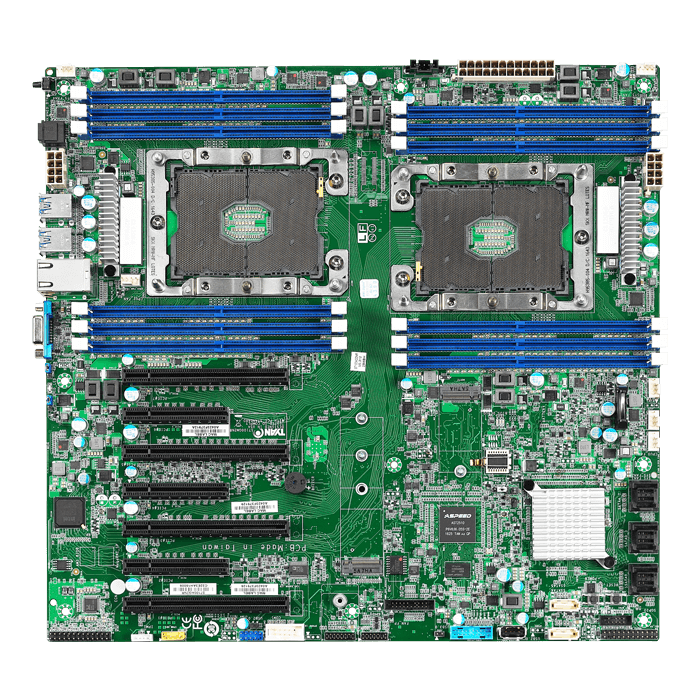

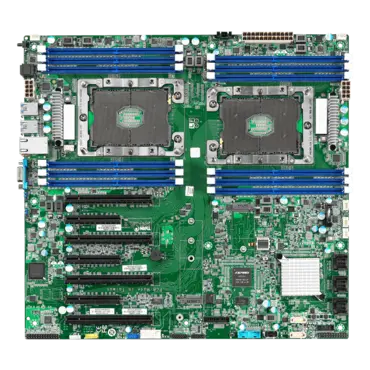

Package Contains | Motherboard | (1) S7100 Motherboard | |||
Manual | (1) Quick Installation Guide | ||||
Installation CD | (1) TYAN Device Driver CD | ||||
I/O Shield | (1) I/O Shield | ||||
Cable | SATA | (2) SATA signal cables |
