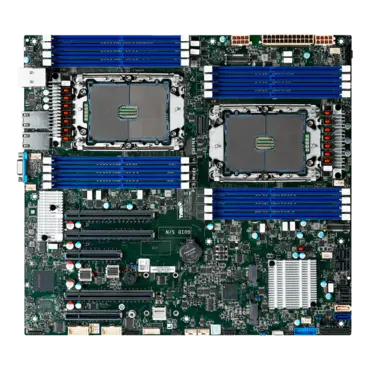

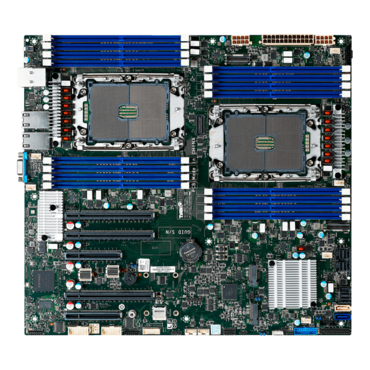

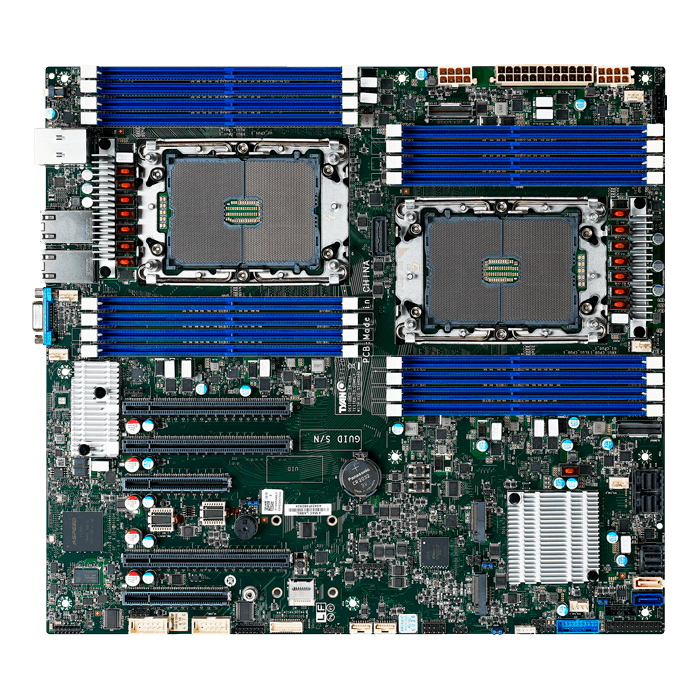

Tempest HX S7120 (S7120GM2NRE-2T), Intel® C621A, LGA 4189 / 2, DDR4-3200 2TB 3DS LRDIMM / 16, VGA, M.2 / 2, 10GbLAN / 2, SSI EEB Retail

SKU: 14516509

Manufacturer: TYAN

MPN: S7120GM2NRE-2T

Availability: Unknown


Price: $918.85
or as low as $30/month
Quantity:
Processor Q'ty / Socket Type (2) LGA4189
Supported CPU Series 3rd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 270W
System Bus Up to 11.2/10.4 GT/s with Intel UltraPath Interconnect (UPI) support
Chipset PCH Intel C621A
Memory Supported DIMM Qty (8)+(8) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Capacity Up to 1,024GB RDIMM/ 2,048GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 8 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCIe (2) PCIe Gen.4 x8 slots / (3) PCIe Gen.4 x16 slots
LAN Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X550
PHY Realtek RTL8211E
Storage SATA Connector (2) SATA / (3) Mini-SAS (12 ports) / (totally support 14 ports)
Controller Intel C621A
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Storage NVMe Connector (M.2) (2) 22110/2280 (by PCIe interface)
Storage (Optional) VROC Support Yes
Graphic VGA Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600

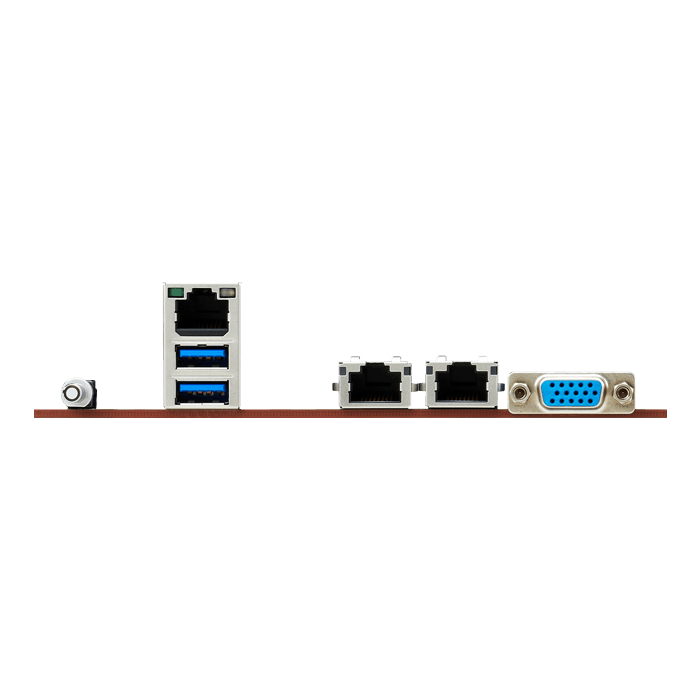

Input /Output USB (2) USB3.0 ports ( @ rear)
COM (2) headers
VGA (1) D-Sub 15-pin VGA port (@ rear)
RJ-45 (2) GbE ports + (1) GbE dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (3) Mini-SAS HD from PCH SATA-III
Power SSI 24-pin + 8-pin + 8-pin power connectors
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2600
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU, memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5
Physical Dimension Form Factor SSI EEB compatible
Board Dimension 12.2” x 13.04” (309.8 x 331.2mm)
Regulation FCC (SDoC) Class A
CE (DoC) Class A
RCM Class A
VCCI Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S7120 Motherboard
Manual (1) Quick Installation Guide
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
