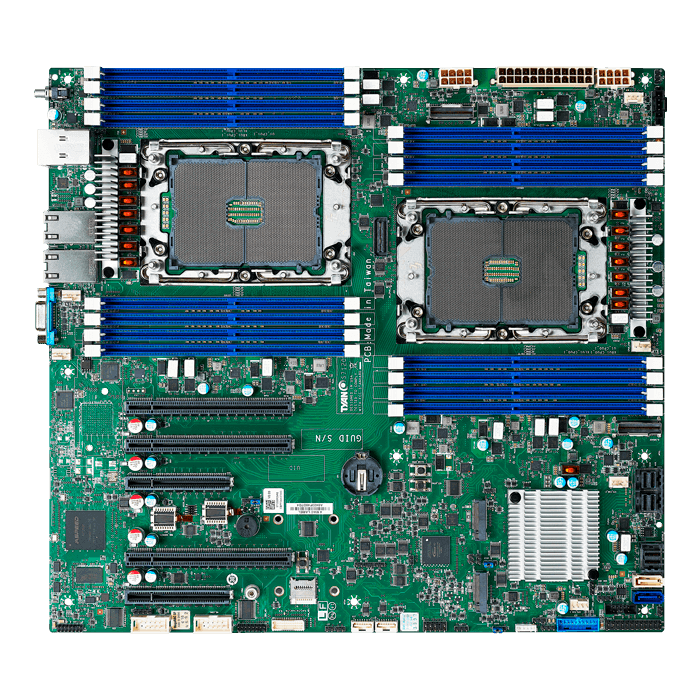

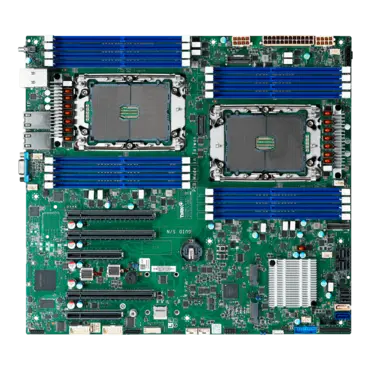

Tempest HX S7120 (S7120GM2NRE), Intel® C621A, LGA 4189 / 2, DDR4-3200 2TB 3DS LRDIMM / 16, VGA, M.2 / 2, 1GbLAN / 2, SSI EEB Retail
Quantity:
- SKU: 14516268
- Manufacturer: TYAN
- MPN: S7120GM2NRE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$750.95
| Processor | Q'ty / Socket Type | (2) LGA4189 |
| Supported CPU Series | 3rd Gen Intel Xeon Scalable Processor | |
| Thermal Design Power (TDP) Wattage | Max up to 270W | |
| System Bus | Up to 11.2/10.4 GT/s with Intel UltraPath Interconnect (UPI) support | |
| Chipset | PCH | Intel C621A |
| Memory | Supported DIMM Qty | (8)+(8) DIMM slots |
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | |
| Capacity | Up to 1,024GB RDIMM/ 2,048GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | |
| Memory channel | 8 Channels per CPU | |
| Memory voltage | 1.2V | |
| Expansion Slots | PCIe | (2) PCIe Gen.4 x8 slots / (3) PCIe Gen.4 x16 slots |
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI |
| PHY | Realtek RTL8211E | |
| Storage SATA | Connector | (2) SATA / (3) Mini-SAS (12 ports) / (totally support 14 ports) |
| Controller | Intel C621A | |
| Speed | 6Gb/s | |
| RAID | RAID 0/1/10/5 (Intel RSTe) | |
| Storage NVMe | Connector (M.2) | (2) 22110/2280 (by PCIe interface) |
| Storage (Optional) | VROC Support | Yes |
| Graphic VGA | Connector type | D-Sub 15-pin |
| Resolution | Up to 1920x1200 | |
| Chipset | Aspeed AST2600 | |

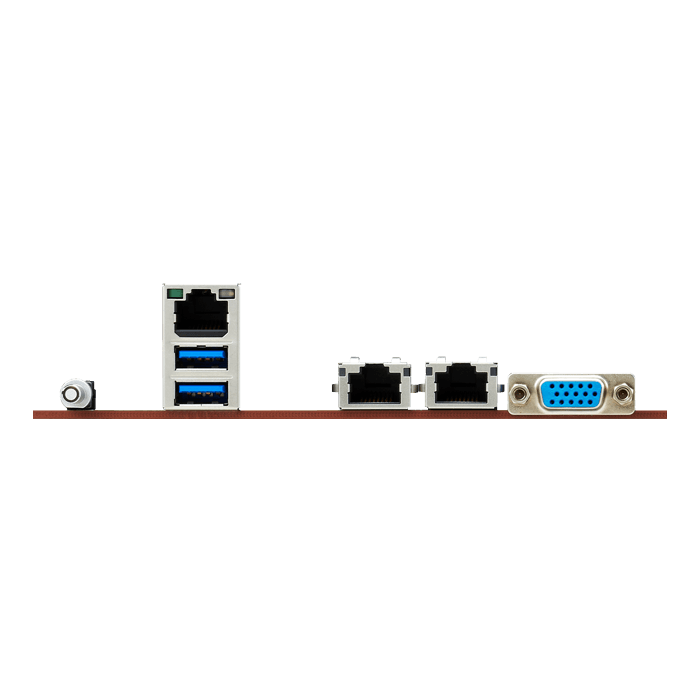

| Input /Output | USB | (2) USB3.0 ports ( @ rear) |
| COM | (2) headers | |
| VGA | (1) D-Sub 15-pin VGA port (@ rear) | |
| RJ-45 | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Front Panel | (1) 2x12-pin SSI front panel header | |
| SATA | (3) Mini-SAS HD from PCH SATA-III | |
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | |
| Others | (1) ID button | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| System Monitoring | Chipset | Aspeed AST2600 |
| Fan | Total (5) 4-pin headers | |
| Temperature | Monitors temperature for CPU, memory & system environment | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |
| Others | Watchdog timer support | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 32MB |
| Feature | Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5 | |
| Physical Dimension | Form Factor | SSI EEB compatible |
| Board Dimension | 12.2” x 13.04” (309.8 x 331.2mm) | |
| Regulation | FCC (SDoC) | Class A |
| CE (DoC) | Class A | |
| RCM | Class A | |
| VCCI | Class A | |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS supported list | Please refer to our AVL support lists. |
| Package Contains | Motherboard | (1) S7120 Motherboard |
| Manual | (1) Quick Installation Guide | |
| I/O Shield | (1) I/O Shield | |
| Cable SATA | (2) SATA signal cables |
