| Processor |
Q'ty / Socket Type |
(2) LGA4677 |
| Supported CPU Series |
4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors |
| Thermal Design Power Wattage |
Max up to 270W (TDP) |
| Chipset |
PCH |
Intel C741 |
| Memory |
Supported DIMM Qty |
(8)+(8) DIMM slots |
| DIMM Type / Speed |
DDR5 5600 MHz (1DPC) - 5th Gen. / DDR5 4800 MHz (1DPC) - 4th Gen. |
| Capacity |
Up to 2,048GB RDIMM/RDIMM-3DS DDR5 5600/4800 *Follow latest Intel DDR5 Memory POR |
| Memory channel |
8 Channels per CPU |
| Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(2) PCIe Gen.5 x8 slots / (3) PCIe Gen.5 x16 slots |
| LAN |
Q'ty / Port |
(2) 10GbE ports + (1) GbE dedicated for IPMI |
| Controller |
Intel X710-AT2 |
| PHY |
Realtek RTL8211F |
| Storage SATA |
Connector |
(10) SATA |
| Controller |
Intel C741 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(1) 2280 (by PCIe 4 interface) |
| Graphic VGA |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920x1200 |
| Chipset |
Aspeed AST2600 |

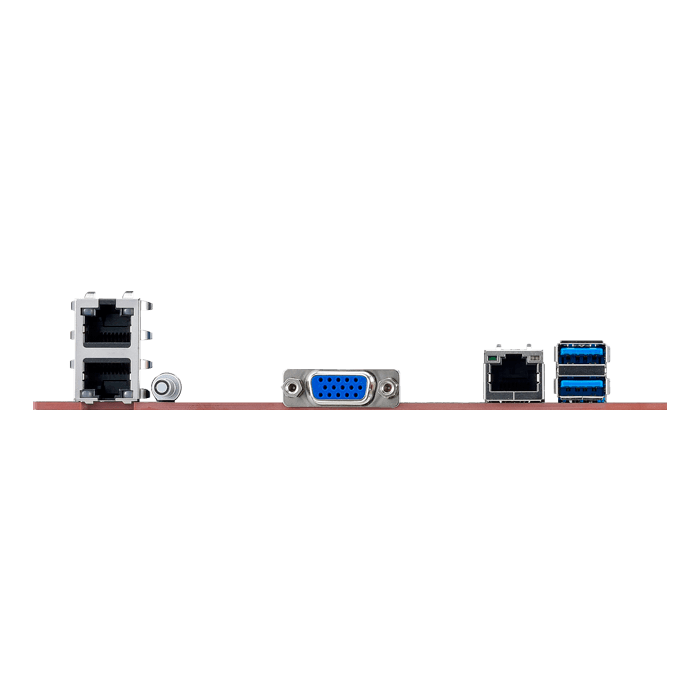

| Input /Output |
USB |
(1) USB2.0 port ( Type-A ) / (1) USB3.1 Gen.1 port / (1) USB3.1 Gen.1 header |
| COM |
(1) DB-9 COM Connector |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(2) 10GbE ports + (1) GbE dedicated for IPMI |
| Front Panel |
(1) 2x12-pin SSI front panel header |
| Power |
(1) ATX 24-pin + (2) 8-pin + (1) 4-pin power connectors |
| PSMI |
(1) 1x5-pin header |
| Others |
(1) ID button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Temperature |
Monitors temperature for CPU, memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0,S1,S5 |
| Physical Dimension |
Form Factor |
EATX |
| Board Dimension |
12" x 13" (305 x 330mm) |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| RCM |
Class A |
| VCCI |
Class A |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Package Contains |
Motherboard |

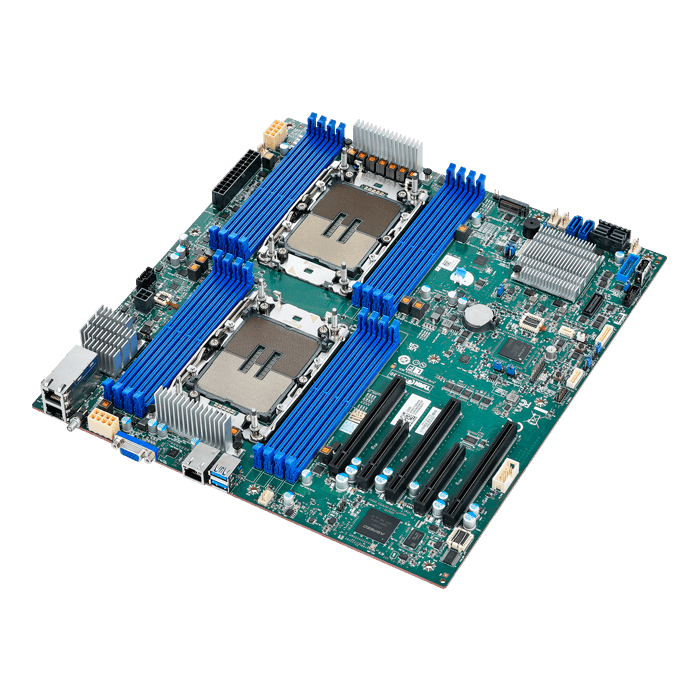

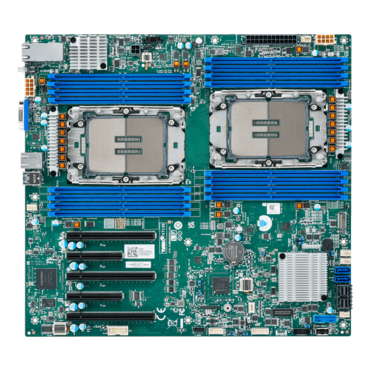

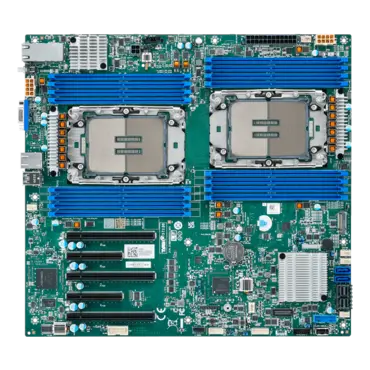

(1) S7130 Motherboard |
| Manual |
(1) Quick Installation Guide |
| Cable SATA |
(2) SATA signal cables |
| Others |
(2) MCC Carrier / (2) XCC Carrier |
