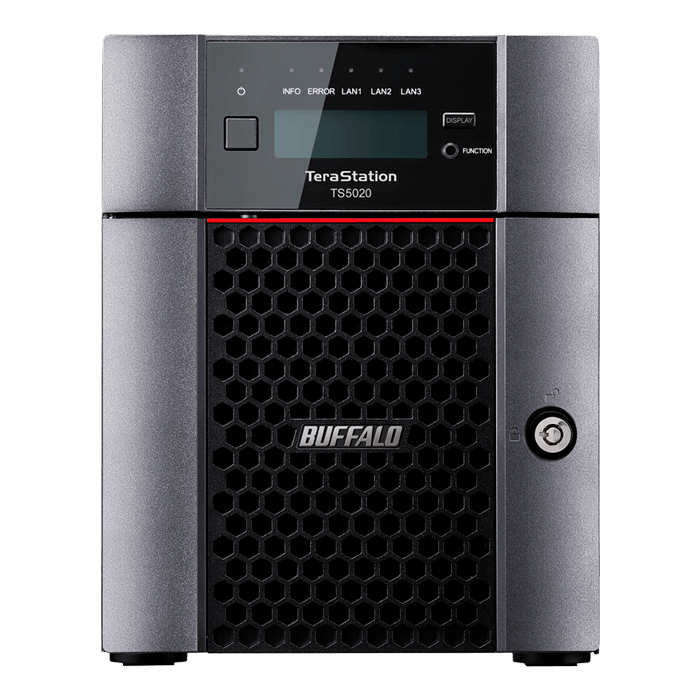

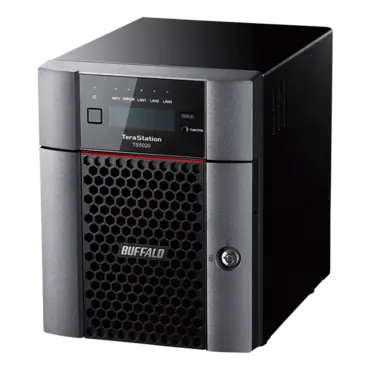

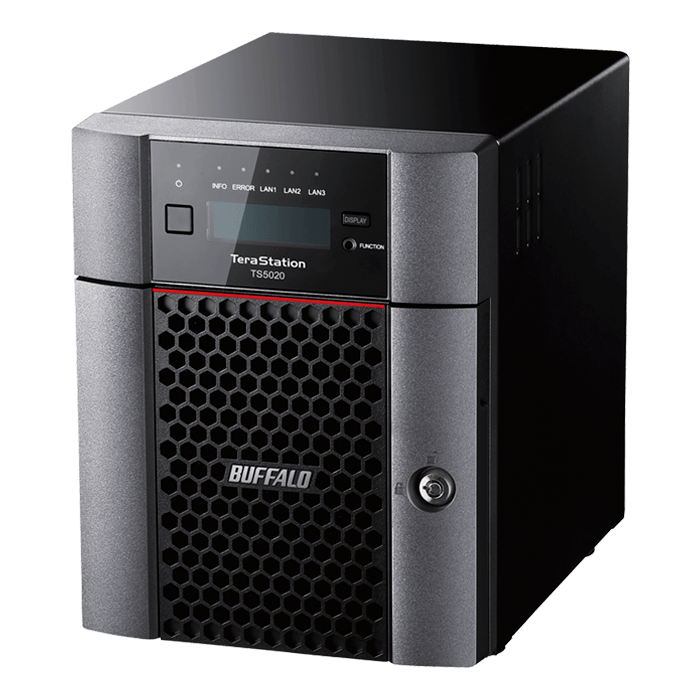

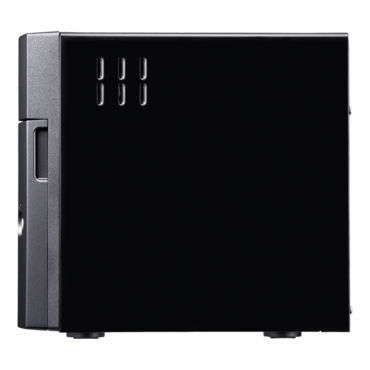

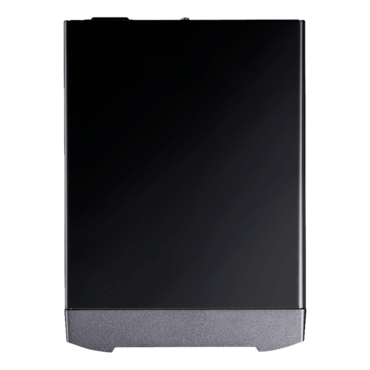

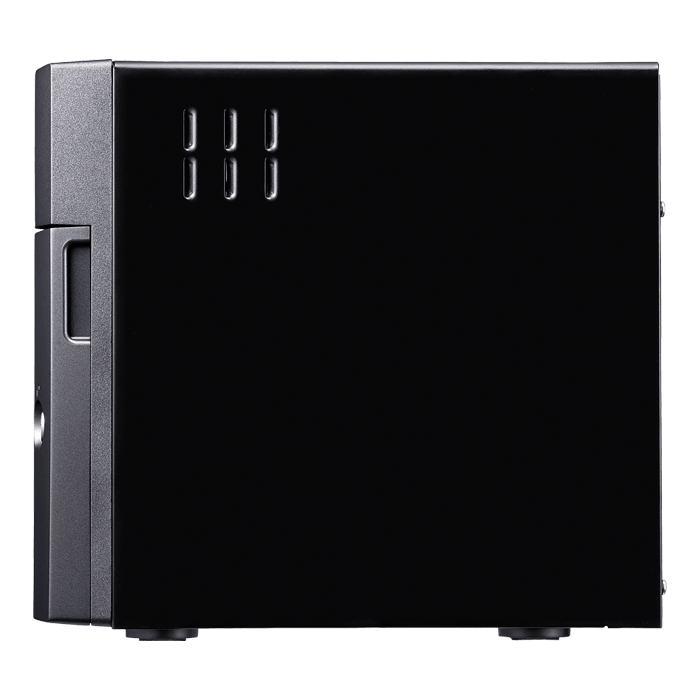

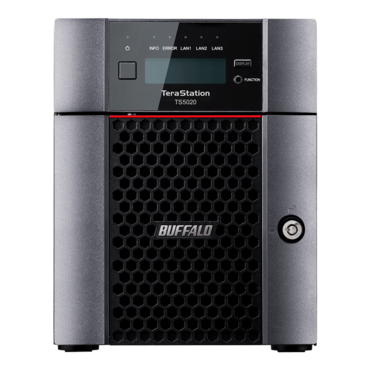

TeraStation™ 5420DN TS5420DN1602 (8TBx2 HDDs included), 4-bay NAS Server, Alpine AL524, 4-core 2.04GHz processor, 8GB DDR4 RAM, SATA 6Gb/s, 10GbLAN, 1GbLAN/ 2, USB 3.2 / 2, 100W PSU

Quantity:
  • SKU: 15386996
  • Manufacturer: BUFFALO
  • MPN: TS5420DN1602
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,180.33
Quantity:
MODELS
Model Name TS5420
Part Number TS5420DN1602 (8TBx2)
Configuration Desktop
Country of Origin Japan
INTERNAL HARD DRIVES
Number of Drive Bays 4
Number of Included Drives 2 or 4
Capacity Range 8, 16, 24, 32, 40, 48, 64, 80TB
Drive Type NAS-grade HDD (CMR)
Supported RAID 0/1/5/6/10/JBOD
Hot Spares Yes, with hot swapping supported
USB INTERFACE
Standards Compliance USB 3.0
Connector Type A type
Number of Ports 2x USB 3.0; 2x USB 2.0
PERFORMANCE
CPU Annapurna Labs® Alpine Processor
AL524 (2.04 GHz Quad-Core)
Memory 8 GB DDR4
ENVIRONMENTAL & POWER
Power Consumption

Max 100W

Data Transfer 72W

Idling 56W

Power Supply Internal AC 100-240V, Universal 50/60Hz
Operating Temperature 32° - 104°F (0° - 40°C)
Operating Humidity 10 - 85% non-condensing
SHIPPING
Unit Dimensions (L x W x H) 9.06 x 6.69 x 8.46 in
Unit Weight 12.41 lbs
Package Dimensions (L x W x H) 14.1 x 12.2 x 14.3 in
Package Weight 16 lbs
Warranty 3 Years

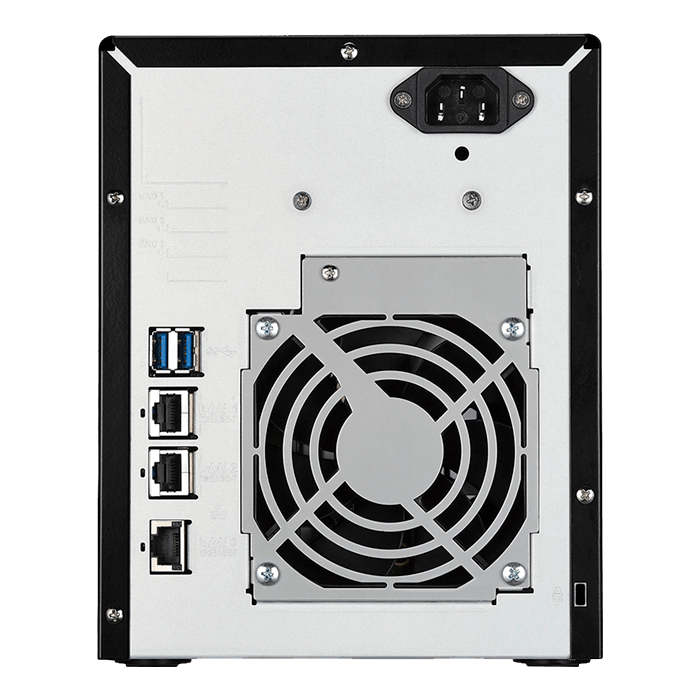

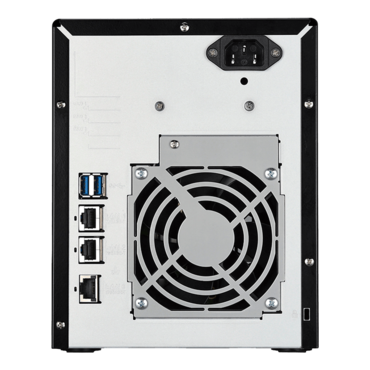

LAN INTERFACE
Standards Compliance IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 1 (10GBASE-T), 2 (1000BASE-T)
Data Transfer Rates 10 Gbps/1000 Mbps/100 Mbps/10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS
Connector Type RJ-45
PRODUCT FEATURES
Email Notifications Yes
Btrfs Filesystem Yes
Port Trunking Yes
Rapid RAID change Yes
Replication Yes
Failover Yes
UPS Yes (USB/Network)
Active Directory Yes
Cloud Service Integration Yes (Dropbox, AMazon S3, Microsoft Azure and OneDrive)
Boot Authentification N/A
SNMP Yes
Snapshots Yes
Snapshot Backup Yes
Settings Migration from Old TeraStations Yes
Remote Monitoring Services Yes
iSCSI Yes
iSCSI Backup Yes
CLIENT OS SUPPORT
Client OS Support

Windows® 11 (32-bit/64-bit), Windows® 10, Windows® 8.1 (32-bit/64-bit)

Windows Server® 2019, Windows Server® 2016, Windows Server® 2012R2, Windows Server® 2012

Mac® OS® X 10.13 or later

ACCESSORIES
Remote Management Service Available for Free
Compatible Hard Drives OP-HDN Series
Optional Warranty Service Extended options available
BOX CONTENTS
Included Materials TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement
Included Software NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration)
Additional For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact [email protected].
