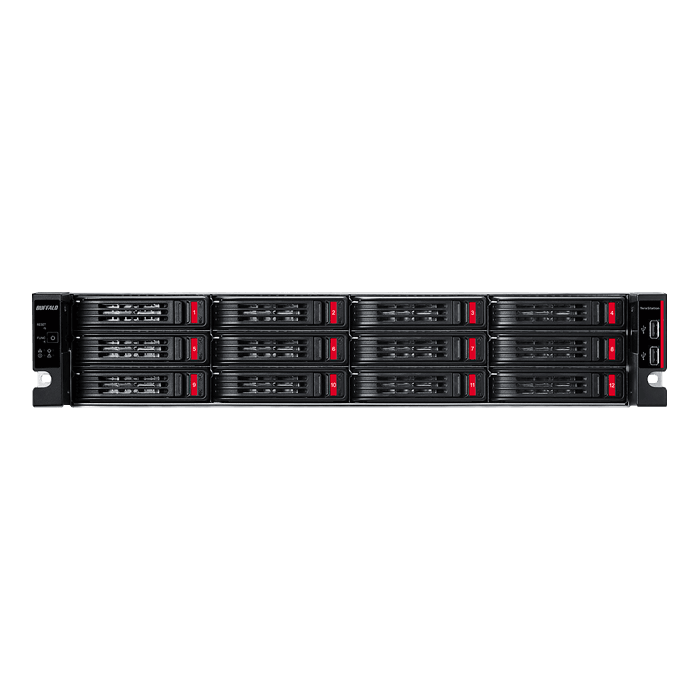

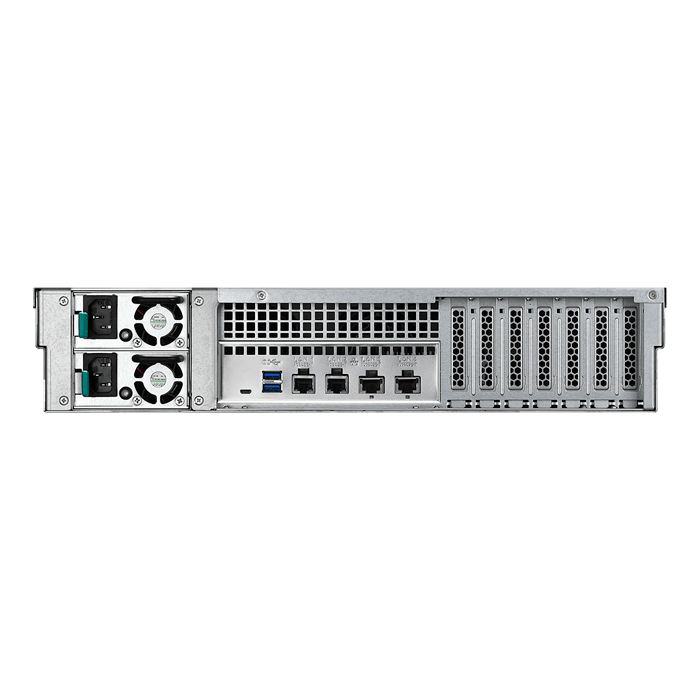

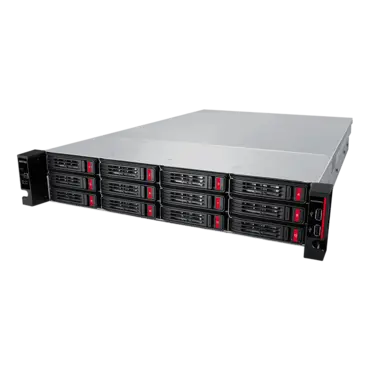

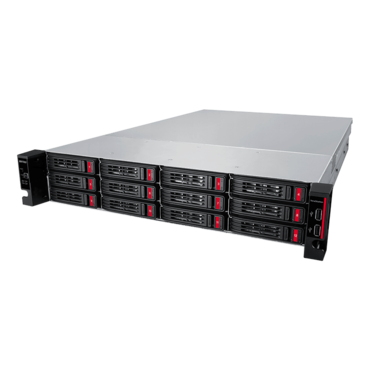

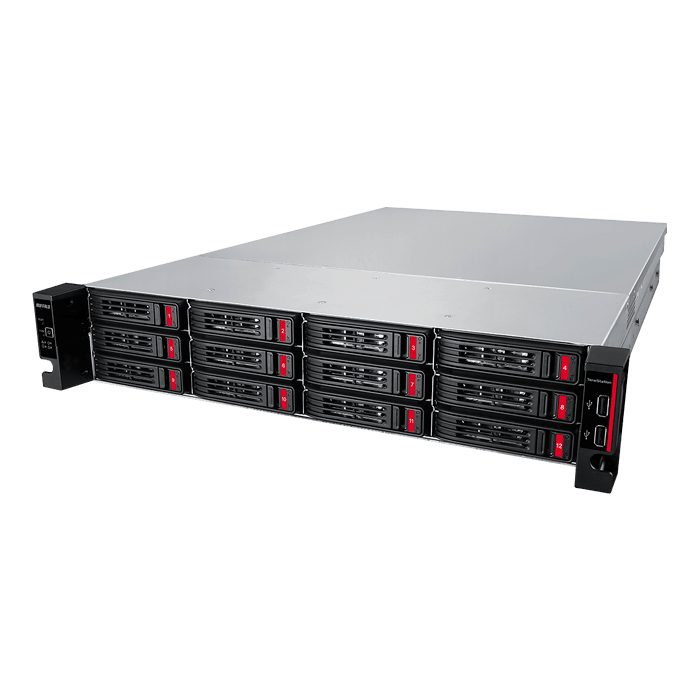

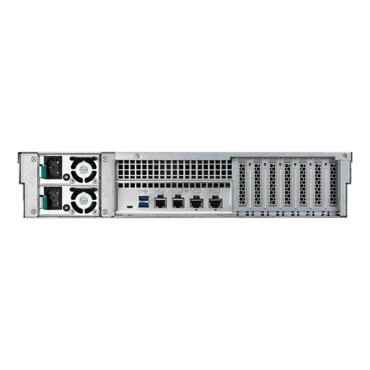

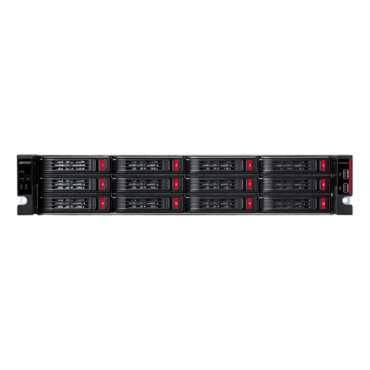

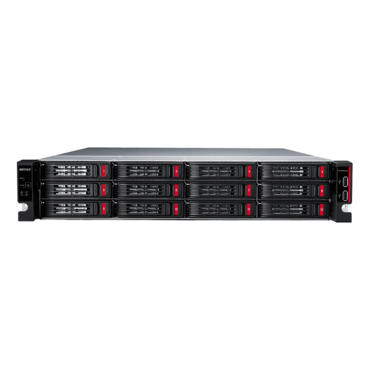

TeraStation™ TS51220RH TS51220RH9612 (8TBx12 HDDs included), 12-bay 2U NAS Server, Alpine AL524, 4-core 2.04GHz processor, 16GB DDR4 RAM, SATA 6Gb/s, 10GbLAN / 2, 1GbLAN/ 2, USB 3.2 / 2, 500W PSU

Quantity:
  • SKU: 15386984
  • Manufacturer: BUFFALO
  • MPN: TS51220RH9612
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$8,444.59
Quantity:
MODELS
Model Name TS5420
Part Number TS51220RH9612 (8TBx12)
Configuration Rackmount
Country of Origin Japan
INTERNAL HARD DRIVES
Number of Drive Bays 12
Number of Included Drives 4 or 12
Capacity Range 32, 48, 64, 80, 96, 144, 192, 240TB
Drive Type Enterprise-grade HDD (CMR)
Supported RAID 0/1/5/6/10/JBOD
Hot Spares Yes, with hot swapping supported
USB INTERFACE
Standards Compliance USB 3.0
Connector Type A type
Number of Ports 2x USB 3.0; 2x USB 2.0
PERFORMANCE
CPU Annapurna Labs® Alpine Processor
AL524 (2.04 GHz Quad-Core)
Memory 16 GB DDR4
ENVIRONMENTAL & POWER
Power Consumption

Max 500W

Data Transfer 177W

Idling 135W

Power Supply

Internal AC 100-240V, Universal 50/60Hz

Optional dual power supply available

Operating Temperature 32° - 104°F (0° - 40°C)
Operating Humidity 10 - 85% non-condensing
SHIPPING
Unit Dimensions (L x W x H) 29.0 x 18.9 x 3.4 in
Unit Weight 55.37 lbs
Package Dimensions (L x W x H) 38.5 x 22.9 x 10.2 in
Package Weight 66.5 lbs
Warranty 5 Years (with product registration)
LAN INTERFACE
Standards Compliance IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 2 (10GBASE-T), 2 (1000BASE-T)
Data Transfer Rates 10 Gbps/1000 Mbps/100 Mbps/10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS
Connector Type RJ-45
PRODUCT FEATURES
Email Notifications Yes
Btrfs Filesystem Yes
Port Trunking Yes
Rapid RAID change Yes
Replication Yes
Failover Yes
UPS Yes (USB/Network)
Active Directory Yes
Cloud Service Integration Yes (Dropbox, AMazon S3, Microsoft Azure and OneDrive)
Boot Authentification N/A
SNMP Yes
Snapshots Yes
Snapshot Backup Yes
Settings Migration from Old TeraStations Yes
Remote Monitoring Services Yes
iSCSI Yes
iSCSI Backup Yes
CLIENT OS SUPPORT
Client OS Support

Windows® 11 (32-bit/64-bit), Windows® 10, Windows® 8.1 (32-bit/64-bit)

Windows Server® 2019, Windows Server® 2016, Windows Server® 2012R2, Windows Server® 2012

Mac® OS® X 10.13 or later

ACCESSORIES
Remote Management Service Available for Free
Compatible Hard Drives OP-HDN Series
Additional Power Supply OP-PU-10R2UWR (TS51220RH ONLY)
Optional Warranty Service Extended options available
BOX CONTENTS
Included Materials TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement
Included Software NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration)
Additional For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact sales@buffaloamericas.com.
