The Tower 100, Tempered Glass, No PSU, Mini-ITX, Turquoise, Mini Tower Case

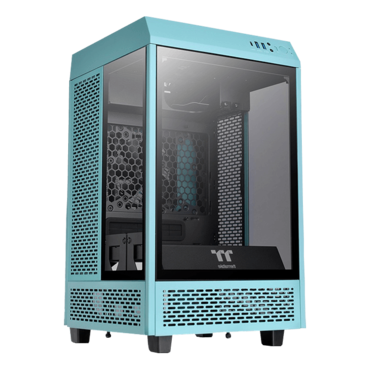

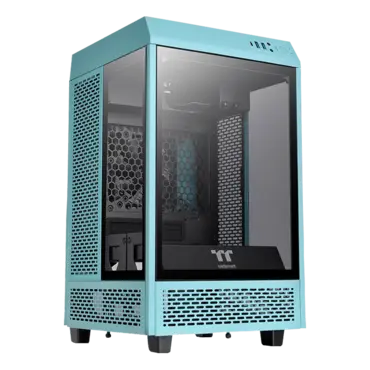

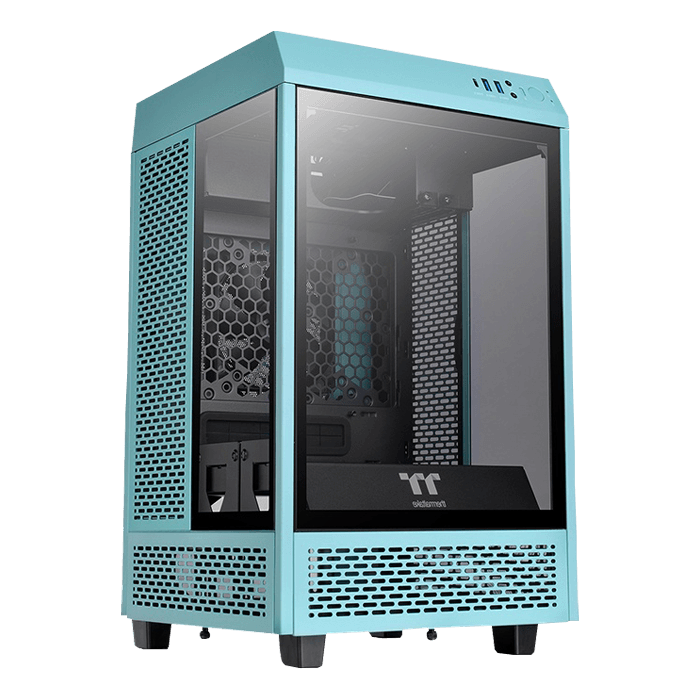

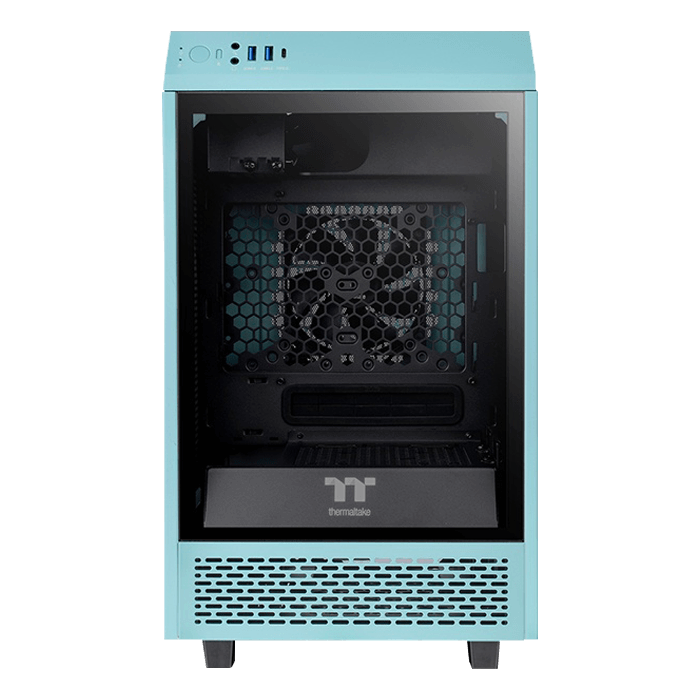

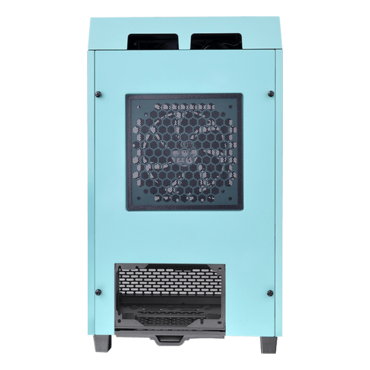

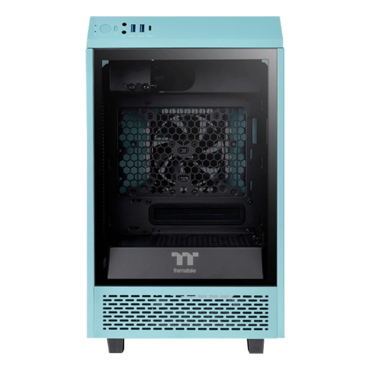

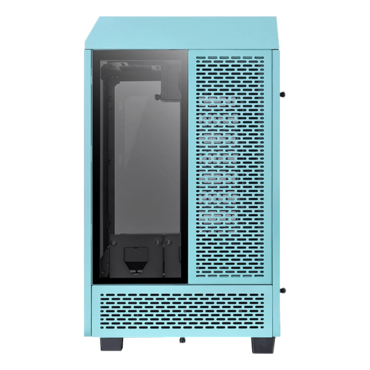

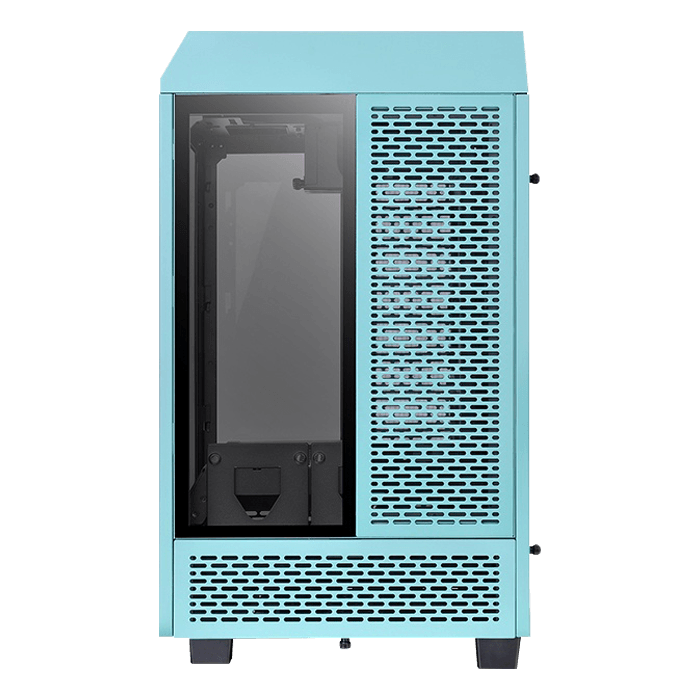

The Tower 100 Turquoise is a vertically designed mini-ITX chassis with panoramic viewing. It comes with two preinstalled 120mm standard fans and three 4mm tempered glass windows at the front, on left and right side.
P/N | CA-1R3-00SBWN-00 |
Series | tde Tower |
Model | The Tower 100 Turquoise |
Case Type | Mini Tower |
Dimension (H x W x D) | 462.8 x 266 x 266 mm (18.2 x 10.5 x 10.5 inch) |
Net Weight | 6.1 kg / 13.45 lbs. |
Side Panel | Tempered Glass x 3 (4mm tdickness) |
Color | Turquoise |
Material | SPCC |
Cooling System | Top(exhaust): 120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1 |
Drive Bays -Accessible -Hidden |
- 2 x 2.5“(witd side bracket); 2 x 2.5“ or 2 x 3.5” (witdout rear fan) |
Expansion Slots | 2 |
Motderboards | 6.7” x 6.7” (Mini ITX) |
I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 2 |
PSU | Standard PS2 PSU (optional) |
Fan Support | Top: 1 x 120mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm Top of tde PSU Cover: 1 x 120mm, 1 x 140mm |
Radiator Support | Top: 1 x 120mm |
Clearance | CPU cooler height limitation: 190mm VGA lengtd limitation: 330mm PSU lengtd limitation: 180mm |
