The Tower 500, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case

Quantity:
  • SKU: 15031175
  • Manufacturer: THERMALTAKE
  • MPN: CA-1X1-00M6WN-00
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$150.10
Quantity:
The Tower 500, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case

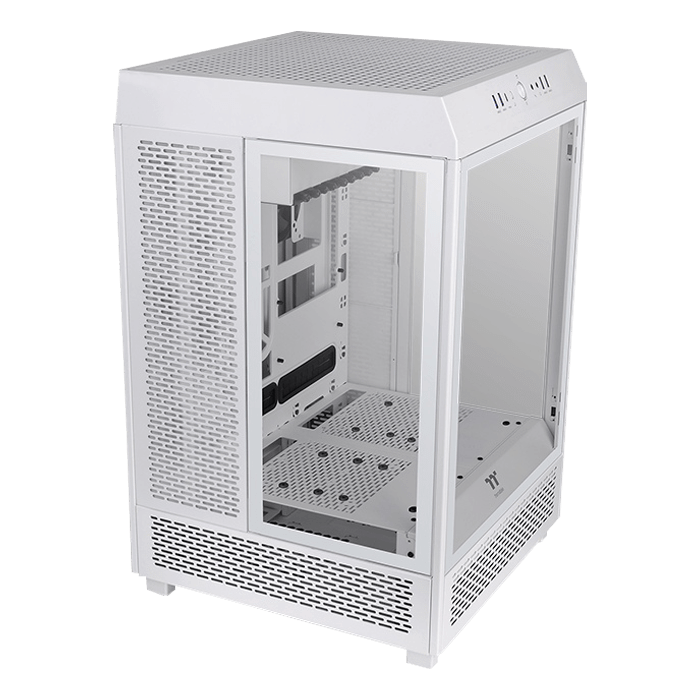

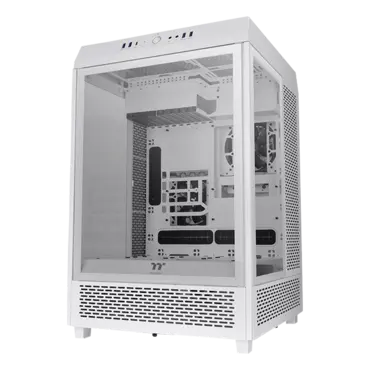

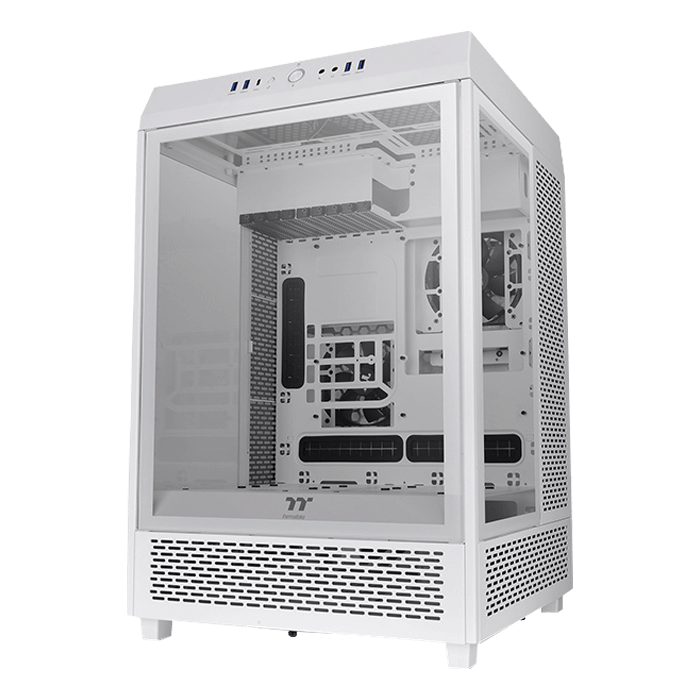

The Tower 500 is a vertically designed case with three 4mm tempered glass panels for panoramic viewing, along with two pre-installed 120mm standard fans. This chassis supports up to 12" x 12" E-ATX motherboards giving you comprehensive flexibility for enhanced expansion options. It can also be paired with a separately sold LCD panel kit with a 3.9" LCD Display for maximizing the PC's visual effects

P/N CA-1X1-00M6WN-00
Series The Tower
CASE TYPE Mid Tower
Dimension (H x W x D) 608 x 388 x 398 mm
(23.9 x 15.3 x 15.3 inch)
NET WEIGHT 14.8 kg / 32.6 lbs.
SIDE PANEL 4mm Tempered Glass x 3
Color White
MATERIAL SPCC
COOLING SYSTEM Rear(exhaust):
120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 2
Drive Bays 4 x 3.5”, 8 x 2.5”
or 8 x 3.5”
EXPANSION SLOTS 9
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 12” (E-ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right Side:
3 x 120mm, 2 x 120mm, 1 x 120mm
Rear:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Power Cover:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Bottom(Vertical/Horizontal):
2 x 120mm, 1 x 120mm
RADIATOR SUPPORT Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right Side:
1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mm
Bottom(Vertical/Horizontal):
1 x 240mm, 1 x 120mm
CLEARANCE CPU cooler height limitation:
275mm
VGA length limitation:
325mm(With power cover)
355mm(Without power cover)
PSU length limitation:
200mm
