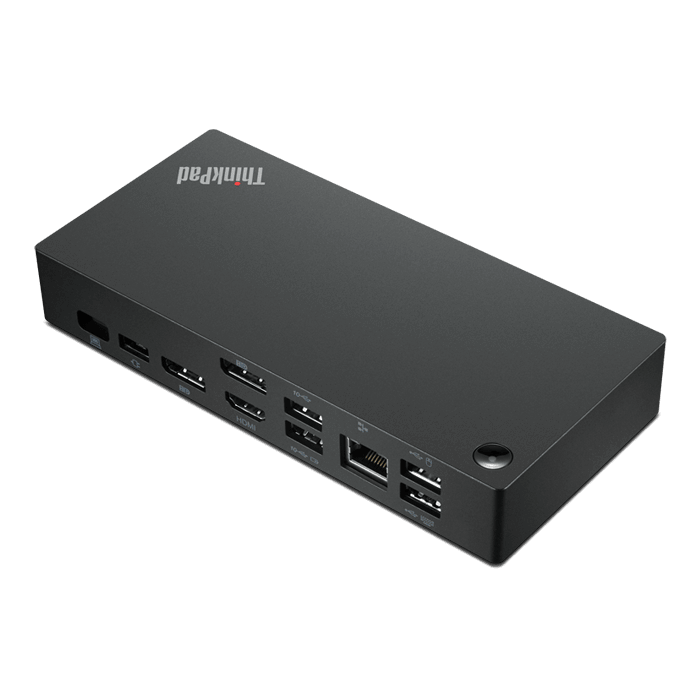

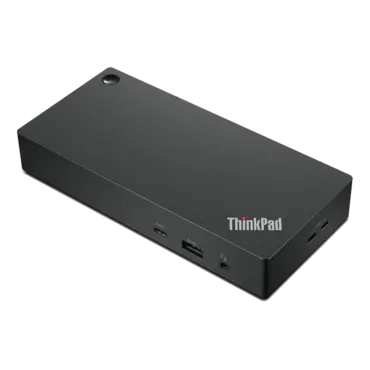

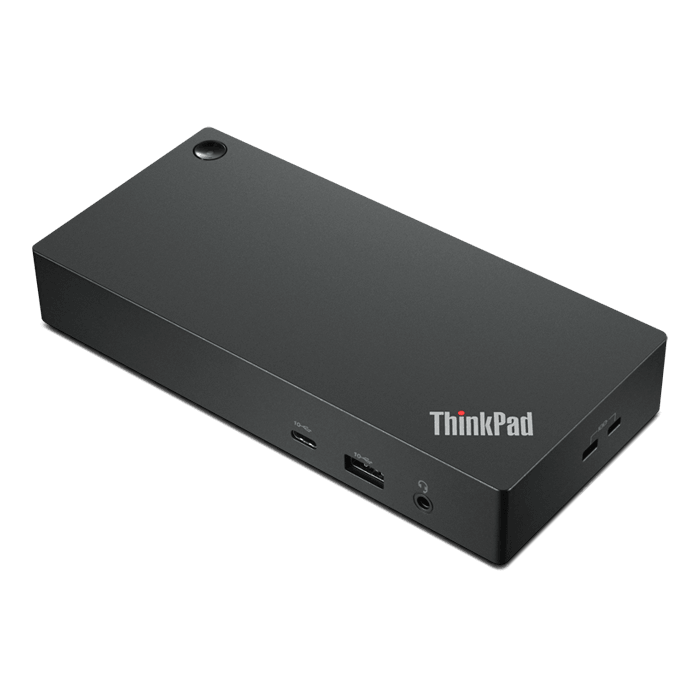

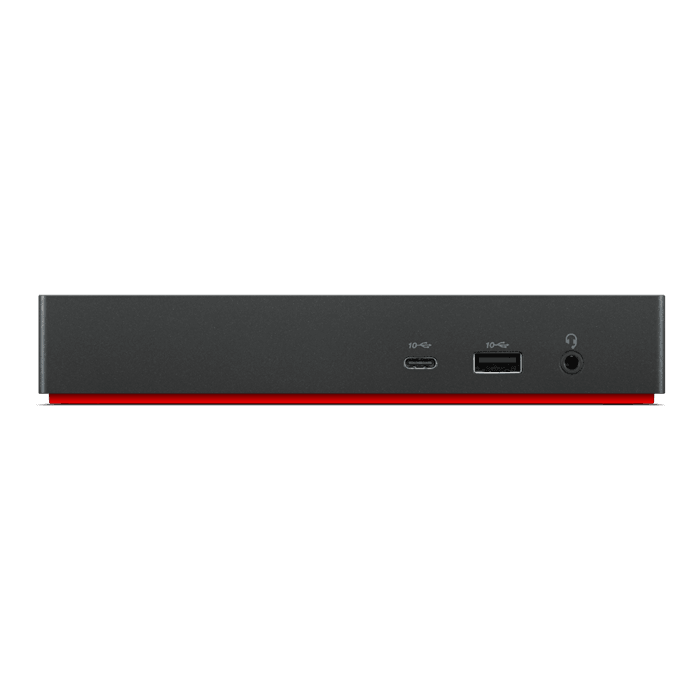

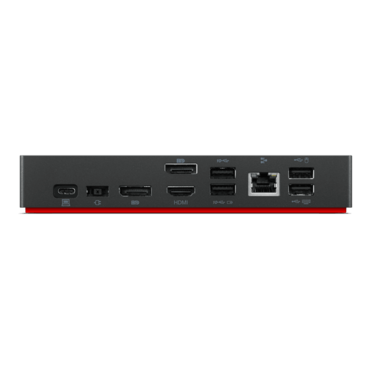

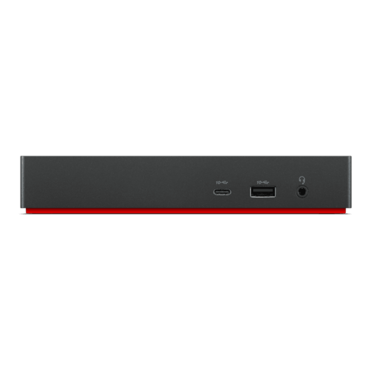

ThinkPad 40AY0090US Universal USB-C Dock Station
Quantity:
- SKU: 14496774
- Manufacturer: LENOVO
- MPN: 40AY0090US
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$213.02
ThinkPad 40AY0090US Universal USB-C Dock Station
THE SMARTER WAY TO WORK Introducing the ThinkPad Universal USB-C Dock. This advanced, universally compatible one-cable docking solution lets you work smarter, not harder. It comes with a vast array of ports, next-gen plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks*). Smart enough to install critical firmware updates automatically, it’s ideal for any mixed-PC environment and home-based working, and gives you the freedom and power to do more.
- One Dock. No Limits.
- Ideal for both office-based and remote working, it’s an IT manager’s dream—critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported.
- One Cable. No Clutter.
- ThinkPad Universal USB-C Dock lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories. What’s more, this advanced one-cable docking solution gives you more desk-space to work and play with.
- One Remote Workforce. No Problem.
- Whether end users are in the office, hot-desking, or working from home, IT managers can remotely and securely gather key information about the dock and its attached devices—with minimal interruption to the user’s workflow.
| Physical Security Feature | 2 x Security lock slot |
| Video Ports |
2 x Display Port 1x HDMI Port |
| USB Ports |
3 x USB 3.2 Gen 2 2 x USB 2.0 1 x USB-C |
| Minimum Operating Temperature | 0? |
| Supported OS |
Windows 11 Windows 10 Windows 7 |
| JAN | 4580551301376 |
| EAN | 0195348191999 |
| UPC | 195348191999 |
| Warranty Type | CRU |
| Warranty Period | 3years |
| Maximum Relative Humidity (%) | 95% ( no Condensation) |
| Minimum Relative Humidity (%) | 20% |
| Maximum Operating Temperature | 35? |
| Packed Weight | 955g |
| Packed Dimensions (L x D x H) | 210*158*75mm |
| Package Type | Brown Box |
| Shipment Group |
ThinkPad Universal USB-C Dock 90W AC Power adapter Power cord Pubs Cable |
| Product Weight | 340g |
| Height | 30.75 mm |
| Depth | 80mm |
| Length | 171mm |
| Driver Needed | Yes |
| Agency Approvals |
FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark Serbia Kvalitet LoA Israel SII Ukraine DoC NOM |
| Color | Black |
| Power Plug | Slim-tip |
| Power Button | Yes |
| Output Power |
65W with 90W power adapter connected 100W with 135W power adapter connected |
| Power Delivery | Yes |
| Input Power | 90W |
| Charging Port | DC-IN |
| Maximum Resolution/Refresh Rate |
2x 3840x2160 @60Hz 1x 3840x2160 @30Hz |
| Max Number of External Monitors | 3 |
| Ethernet | 1 x Gigabit Ethernet |
| Audio Ports | 1 x Combo Audio Jack |
| Brand | ThinkPad |
