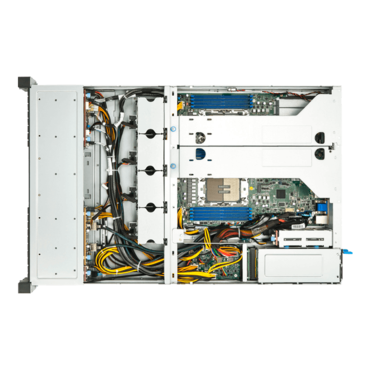

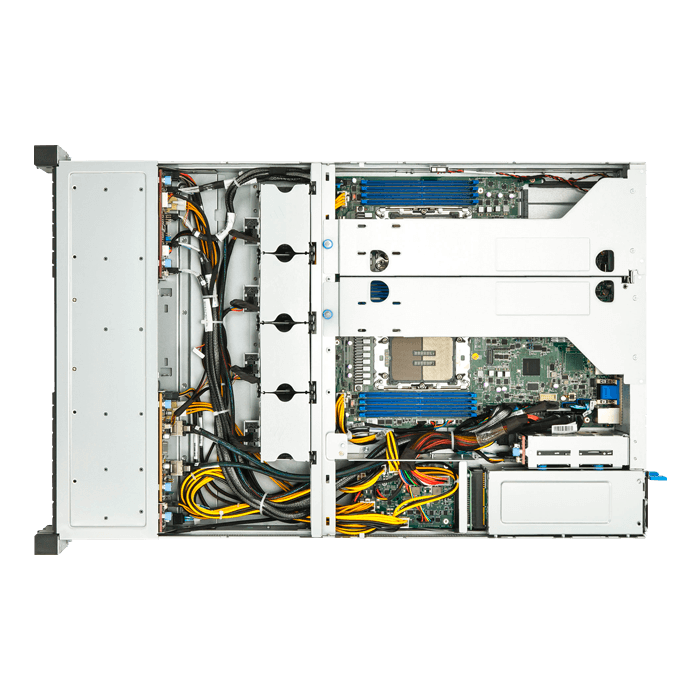

| System |
Form Factor |
2U Rackmount |
| Chassis Model |
TS70A |
| Dimension (D x W x H) |
27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm) |

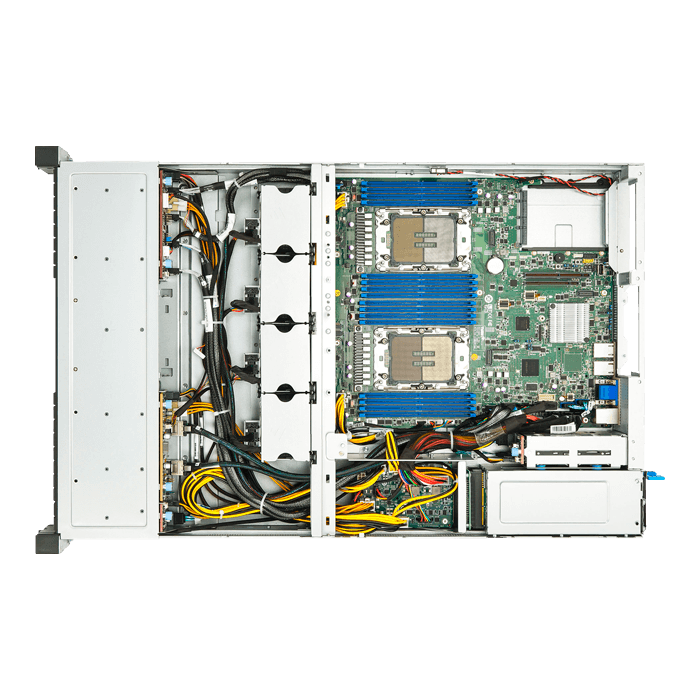

| Motherboard Name |
S7136GMRE |
| Gross Weight |
28 kg (61.7 lbs) |
| Net weight |
16.5 kg (36.5 lbs) |

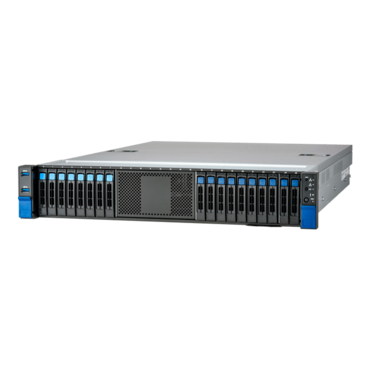

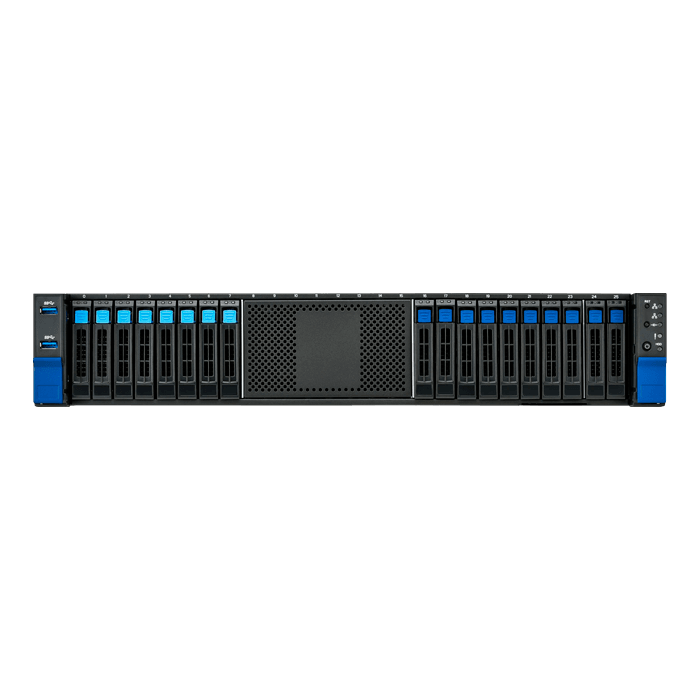

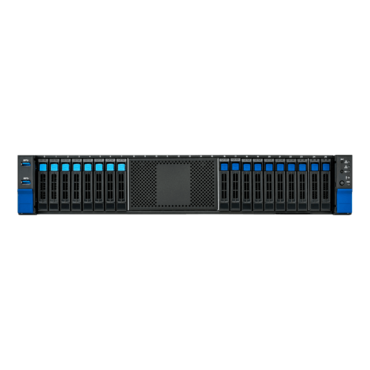

| Front Panel |
Buttons |
(1) ID / (1) PWR w/ LED / (1) RST |
| LEDs |
(1) HDD / (1) ID / (2) LAN / (1) BMC event |

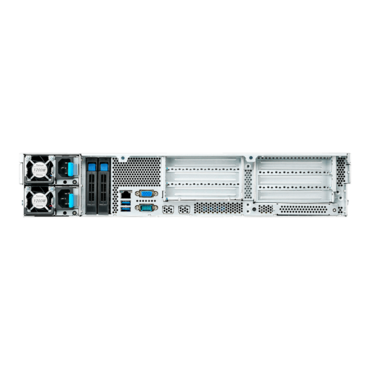

| I/O Ports |
(1) USB 3.2 Gen.1 port + (1) RJ-45 / (1) COM Port / (1) VGA port / (2) Standalone RJ-45 |
| External Drive Bay |
Q'ty / Type |
(8) NVMe / (12) 3.5"/2.5" Hot-Swap SAS/SATA HDDs |
| Front Drive Bay Interface |
(8) NVMe U.2 / (10) SATA 6Gb/s / SAS 12Gb/s |
| Front HDD Backplane Support |
SAS 12Gb/s /SATA 6Gb/s /NVMe |
| Rear Drive Bay Interface |
(2) SATA SSD 6Gb/s |
| Rear HDD Backplane Support |
SATA 6Gb/s |
| System Cooling Configuration |
FAN |
(4) 8cm fans |
| Power Supply |
Type |
CRPS |
| Input Range |
AC 100-127V/13A / AC 200-240V/10A |
| Frequency |
50/60 Hz |
| Output Watts |
1,000 Watts (100-127V AC input) / 1,200Watts (200-240V AC input) |
| Efficiency |
80 plus Platinum |
| Redundancy |
1+1 |
| Processor |
Q'ty / Socket Type |
(2) LGA4677 |
| Supported CPU Series |
4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors |
| Thermal Design Power Wattage |
Max up to 350W (TDP) |
| Chipset |
PCH |
Intel C741 |
| Memory |
Supported DIMM Qty |
(8)+(8) DIMM slots |
| DIMM Type / Speed |
RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) - 4th Gen. / RDIMM / RDIMM-3DS DDR5 5600 MHz (1DPC) / 4400MHz (2DPC) - 5th Gen. |
| Capacity |
Up to 2,048GB RDIMM/3DS RDIMM DDR5 4800/4400 *Follow latest Intel DDR5 Memory POR |
| Memory channel |
8 Channels per CPU |
| Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(2) PCIe Gen.5 x16 slots / (3) PCIe Gen.5 x8 slots (1x w/ x4 link) |
| Pre-installed TYAN Riser Card (PCIe Gen.5) |
(1) M7136T70-R24-2F riser card for for (1) FH/HL PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x8 slots / (1) M7136T70-L28-3F riser card for (1) FH/HL PCIe 5.0 x16 + (2) FH/HL PCIe 5.0 x8(1x w/ x4 link) slots |
| Others |
(1) PCIe Gen.5 x16 OCP 3.0 mezzanine slot |
| LAN |
Q'ty / Port |
(1) GbE dedicated for IPMI |
| PHY |
Realtek RTL8211F |
| Storage SATA |
Connector |
(12) SATA |
| Controller |
Intel C741 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(2) 2280 (by PCIe 4.0 interface) |
| Connector (U.2) |
(8) MCIO x4 |
| Graphic |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920x1200 |
| Chipset |
Aspeed AST2600 |

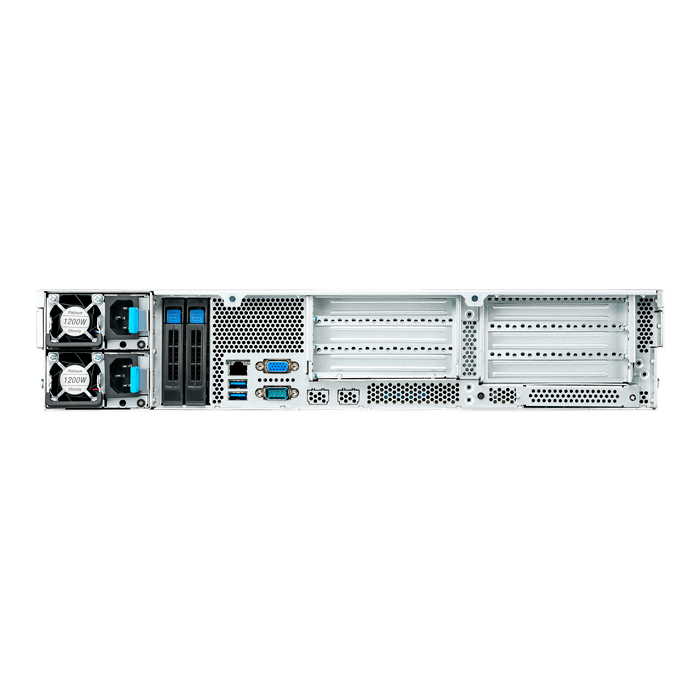

| I/O Ports |
USB |
(2) USB3.2 Gen.1 ports (@ rear) |
| COM |
(1) DB-9 COM port |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(1) GbE port dedicated for IPMI |
| Button |
ID Button |
| Others |
(1) ID LED / (1) ID button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Temperature |
Monitors temperature for CPU & memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 64MB |
| Feature |
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.0 / ACPI sleeping states S0, S5 |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| CB/LVD |
Yes |
| RCM |
Yes |
| VCCI |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Package Contains |
Barebone |
(1) TS70A-B7136 Barebone |
| Manual |
(1) Quick Installation Guide |
