| Processor |
Q'ty / Socket Type |
(1) AMD Socket SP5 |
| Supported CPU Series |
(1) AMD EPYC™ 9004 Series Processor |
| Thermal Design Power Wattage |
Max up to 400W (cTDP) |
| Memory |
Supported DIMM Qty |
(24) DIMM slots |
| DIMM Type / Speed |
RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / 3DS RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC |
| Capacity |
Up to 3,072GB RDIMM/3DS RDIMM DDR5 4800/4400/4000 memory |
| Memory channel |
12 Channels per CPU |
| Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(1) PCIe Gen.5 x24 slot / (1) PCIe Gen.5 x28 slot (w/ x16 link) |
| Others |
(1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot |
| LAN |
Q'ty / Port |
(1) GbE dedicated for IPMI |
| PHY |
Realtek RTL8211F |
| Storage SATA |
Connector |
(16) SATA |
| Controller |
Direct from AMD EPYC CPU |
| Speed |
6Gb/s |
| RAID |
N/A |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe Gen.4 interface) |
| Connector (U.2) |
(1) MCIO x4 / (8) MCIO x8 |
| Graphic VGA |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920X1080 @60Hz |
| Chipset |
Aspeed AST2600 |
| Input /Output |
NVMe |
(1) MCIO x4 / (8) MCIO x8 |
| USB |
(1) USB3.2 Gen.1 header / (1) USB3.2 Gen.1 conn. ( Type-A ) / (2) USB3.2 Gen.1 ports |
| COM |
(1) DB-9 COM Connector |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(1) GbE port dedicated for IPMI |
| Front Panel |
(1) 2x12-pin SSI front panel header |
| IPMB |
(1) 1x4-pin header |
| Others |
(1) Reset button/ (1) Power button / (1) ID button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Fan |
Total (6) 4-pin headers |
| Temperature |
Monitors temperature for CPU, memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 64MB |
| Feature |
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5 |
| Physical Dimension |
Form Factor |
Proprietary |
| Board Dimension |
14.18" x 12.16" (360.2 x 308.8mm) |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| RCM |
Class A |
| VCCI |
Class A |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Package Contains |
Motherboard |

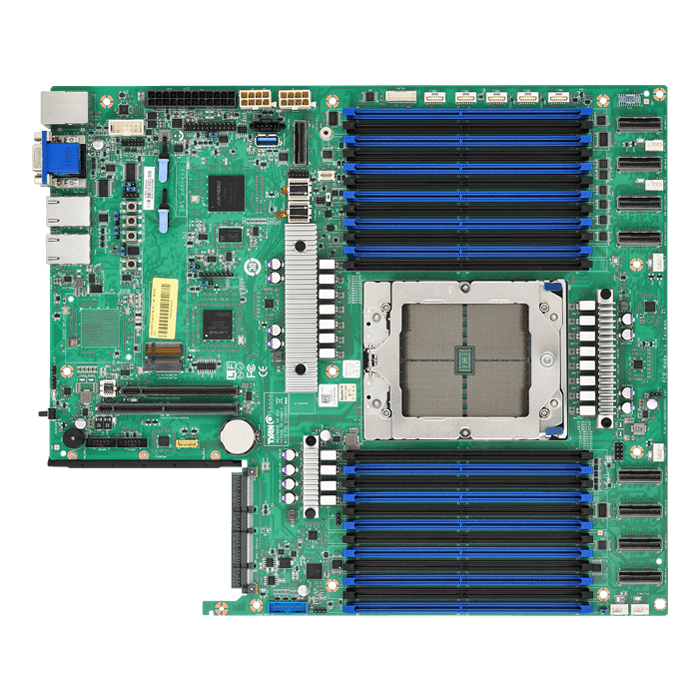

(1) S8056 Motherboard |
| Manual |
(1) Quick Installation Guide |
| Cable SATA |
(2) SATA signal cables |
| Others |
(1) OCP 3.0 Slide Rail / (1) M.2 Card Latch |
