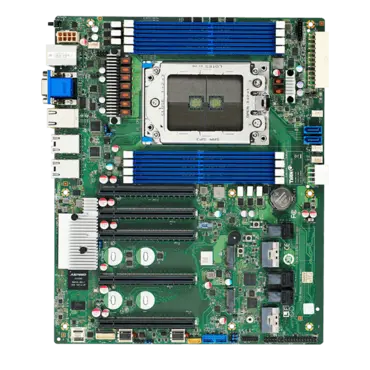

Tomcat HX S8030 (S8030GM2NE), AMD SoC, SP3, DDR4-3200 2TB 3DS LRDIMM / 8, VGA, GbLAN / 2, ATX Retail
Quantity:
- SKU: 13225593
- Manufacturer: TYAN
- MPN: S8030GM2NE
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$703.80
As low as $58.65/ Month*
- 12" x 9.8" ATX form factor
- 8 DIMM slots
- 14 SATA 6G ports
- 2 PCIe x8 SlimSAS connectors for 4 NVMe
- 2 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
- 5 PCIe Gen.4 x16 slots
- 2 NVMe M.2 22110/2280
- AST2500 BMC with IPMI v2.0 & Redfish support
| Processor | Q'ty / Socket Type | (1) AMD Socket SP3 | |
| Supported CPU Series | (1) AMD EPYC™ 7002 Series Processor | ||
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 240W | ||
| Memory | Supported DIMM Qty | (8) DIMM slots | |
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | ||
| Capacity | Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS *Follow latest AMD DDR4 Memory POR | ||
| Memory channel | 8 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (5) PCI-E Gen4 x16 slots | |
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Controller | Intel I210 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (2) SATA / (3) SFF-8643 for (12) SATA ports |
| Controller | Direct from AMD EPYC CPU | ||
| Speed | 6Gb/s | ||
| RAID | N/A | ||
| NVMe | Connector (M.2) | (2) 22110/2280 (by PCI-E Gen4 interface) | |
| Connector (Slim SAS) | (2) SFF-8654 for (4) NVMe ports | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| Input /Output | USB | (2) USB3.1 Gen1 ports (@ rear) | |
| COM | (1) header | ||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||
| RJ-45 | (2) GbE ports, (1) GbE dedicated for IPMI | ||
| Front Panel | (1) 2x12-pin SSI front panel header / (3) 2 x 4 header | ||
| SATA | (2) SATA-III connectors / (12) SATA ports from (3) Mini SAS connectors | ||
| Power | ATX 24-pin + 8-pin power connectors | ||
| System Monitoring | Chipset | Aspeed AST2500 | |
| Fan | Total (6) 4-pin headers | ||
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / ACPI sleeping states S0,S1,S5 | ||
| Physical Dimension | Form Factor | ATX | |
| Board Dimension | 12" x 9.9" (305 x 250.8mm) | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Motherboard | (1) S8030 Motherboard | |
| Manual | (1) Quick Installation Guide | ||
| I/O Shield | (1) I/O Shield | ||
| Cable | SATA | (2) SATA signal cables | |
