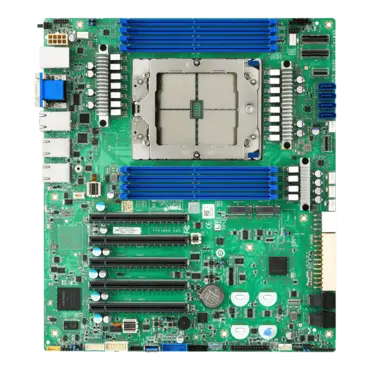

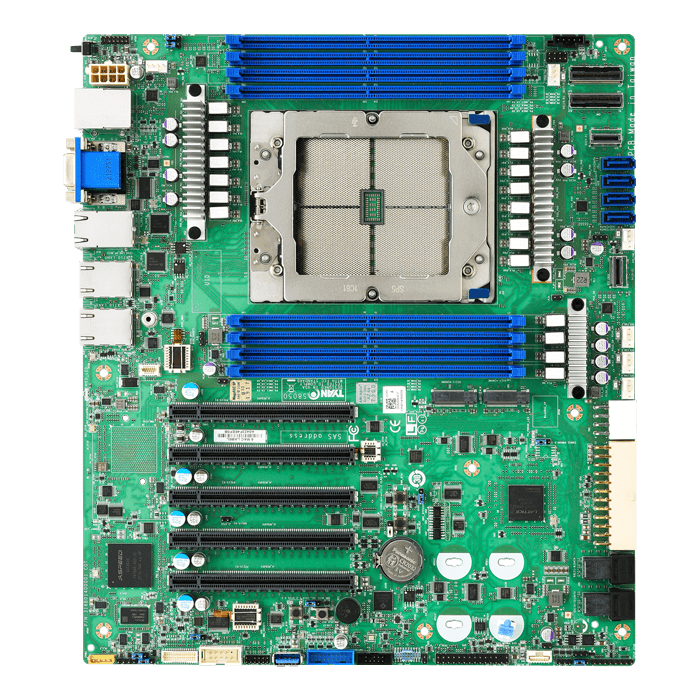

Tomcat HX S8050 (S8050GM2NE), AMD SoC, SP5, DDR5-4800 2TB ECC RDIMM / 8, VGA, M.2 / 2, USB 3.2 / 2, U.2 Port / 4, 1GbLAN / 2, CEB Retail
Quantity:
- SKU: 15697314
- Manufacturer: TYAN
- MPN: S8050GM2NE
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$582.26
| Processor | Q'ty / Socket Type | (1) AMD Socket SP5 |
| Supported CPU Series | (1) AMD EPYC™ 9004 Series Processor | |
| Thermal Design Power Wattage | Max up to 400W (cTDP) | |
| Memory | Supported DIMM Qty | (8) DIMM slots |
| DIMM Type / Speed | RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / 3DS RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC | |
| Capacity | Up to 2,048GB RDIMM / 3DS RDIMM DDR5 4800 | |
| Memory channel | 8 Channels per CPU | |
| Memory voltage | 1.1V | |
| Expansion Slots | PCIe | (5) PCIe Gen.5 x16 slot |
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI |
| Controller | Intel I210-AT | |
| PHY | Realtek RTL8211F | |
| Storage SATA | Connector | (12) SATA |
| Controller | Direct from AMD EPYC CPU | |
| Speed | 6Gb/s | |
| RAID | N/A | |
| Storage NVMe | Connector (M.2) | (2) 22110/2280 (by PCIe Gen.4 interface) |
| Connector (U.2) | (2) MCIO x4 / (2) MCIO x8 | |
| Graphic VGA | Connector type | D-Sub 15-pin |
| Resolution | Up to 1920X1080 @60Hz | |
| Chipset | Aspeed AST2600 | |
| Input /Output | NVMe | (2) MCIO x4 / (2) MCIO x8 |
| USB | (2) USB3.2 Gen.1 ports | |
| COM | (1) DB-9 COM Connector | |
| VGA | (1) D-Sub 15-pin port | |
| RJ-45 | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Front Panel | (1) 2x12-pin SSI front panel header | |
| SATA | (2) Mini-SAS HD (SFF-8643) connectors / (4) 7-pin SATA connectors | |
| Power | (2) 2x4 Power input connectors / (1) 2x12 Power input connectors | |
| Others | (1) ID button | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| Interface | SPI | |
| System Monitoring | Chipset | Aspeed AST2600 |
| Fan | Total (6) 4-pin headers | |
| Temperature | Monitors temperature for CPU & system environment | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| LED | Fan fail LED indicator / Over temperature warning indicator | |
| Others | Watchdog timer support | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 256MB |
| Feature | Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S0, S5 | |
| Physical Dimension | Form Factor | CEB |
| Board Dimension | 12” x 10.5” (305 x 267mm) | |
| Regulation | FCC (SDoC) | Class A |
| CE (DoC) | Class A | |
| C-Tick | Class A | |
| VCCI | Class A | |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS supported list | Please refer to our AVL support lists. |
| Package Contains | Motherboard | (1) S8050 Motherboard |
| Manual | (1) Quick Installation Guide | |
| I/O Shield | (1) I/O Shield | |
| Cable SATA | (2) SATA signal cables |
