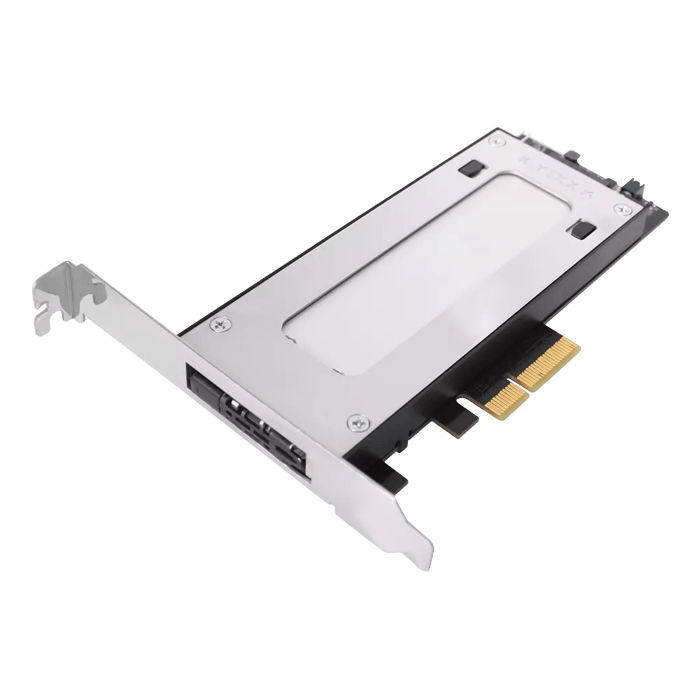

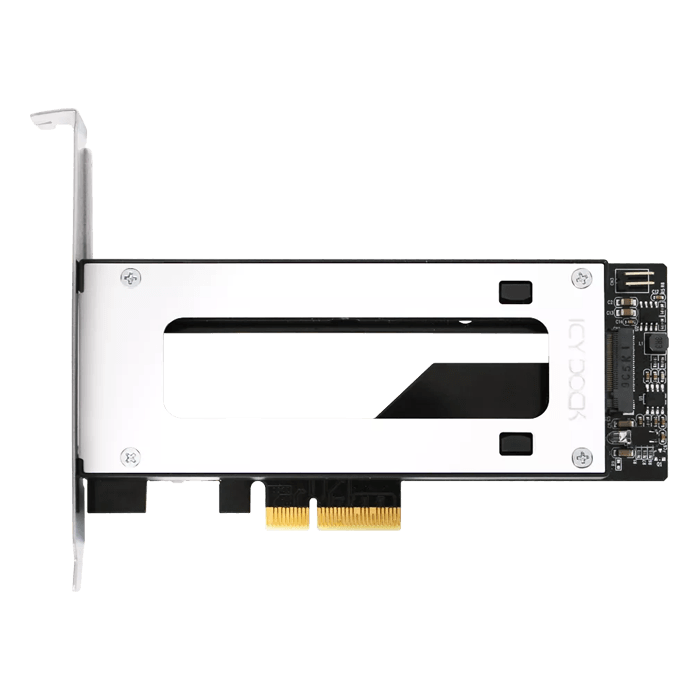

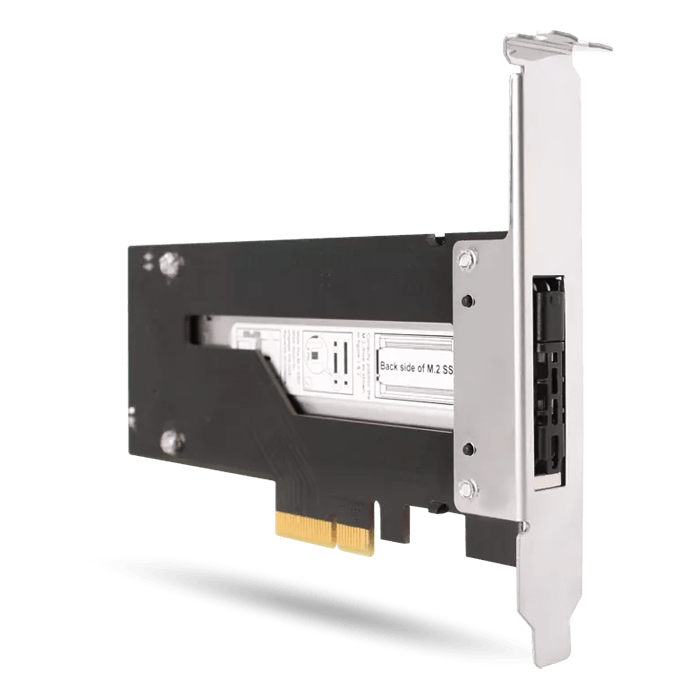

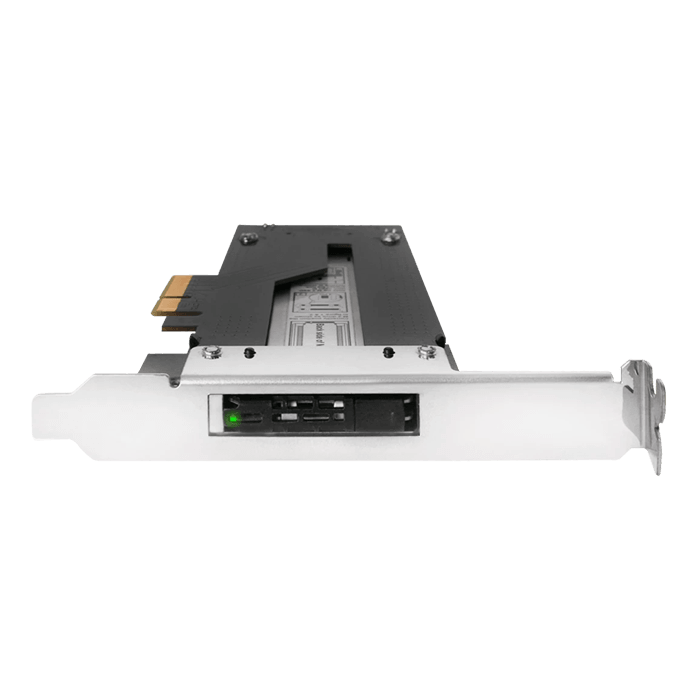

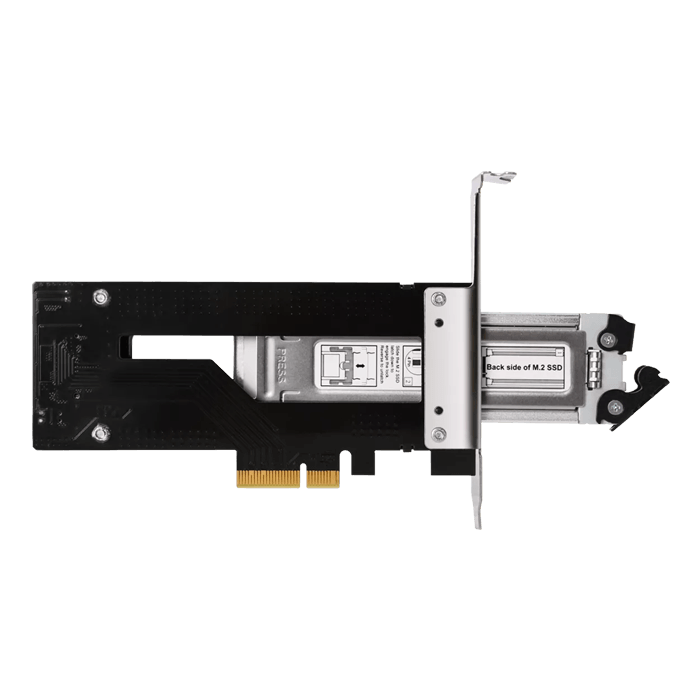

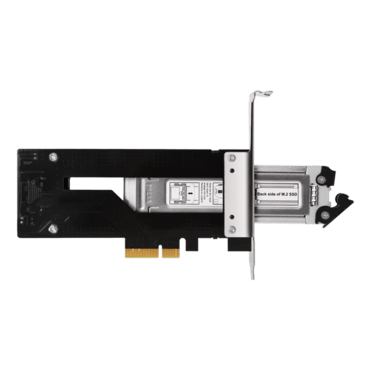

ToughArmor MB840M2P-B, M.2 NVMe SSD to PCIe 3.0/4.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

  • SKU: 13779128
  • Manufacturer: ICY DOCK
  • MPN: MB840M2P-B
Starting At
  • Fits 1x M.2 PCIe NVMe SSD with all drive length including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm)
  • Use 1x PCIe 3.0/4.0x4 interface, also supports installation into PCIe 3.0/4.0 x8 and x16 slots
  • Install into a single-width full-height/half-height PCIe expansion slot

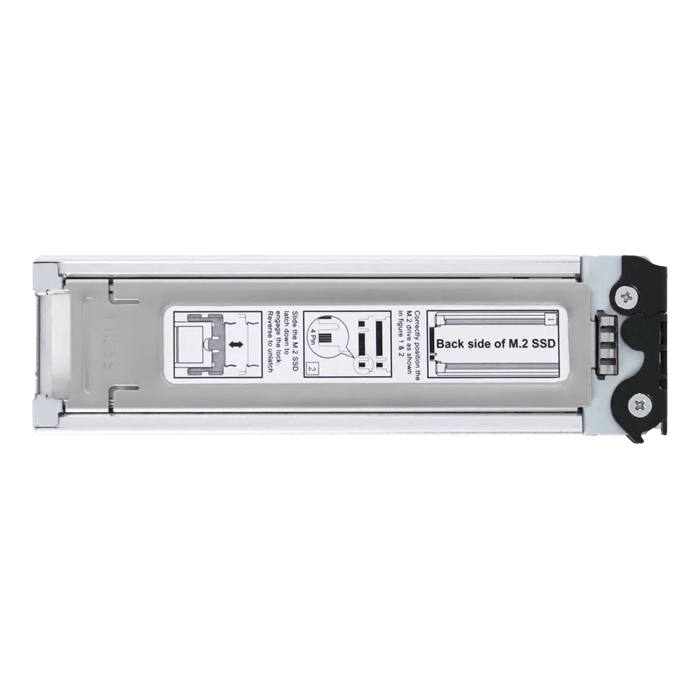

  • Removable drive tray with tool-less drive installation design for easy drive maintenance
  • Low profile design allows for multiple bays to be installed side-by-side in a modular design
  • Eagle-hook lock system keeps the drive secure in the enclosure
  • EMI Grounding – protects hard drives from electrical damage
  • Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
  • Active Power Technology (APT) saves power by shutting the device down when no drive is install
  • PCIe interface provides both power and data transfer which ultimately reduce cable clutter
  • Built-in thermal pad conducts the heat from the drive to the metal tray
  • Optional HDD activity signal output lets you transfer the drive activity signal to computer case
  • Industry leading 3-year warranty against all defects
  • Complimentary support from professionally trained US-based technical support agents
Product Name: M.2 NVMe SSD to PCIe 3.0/4.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot
Model Number: MB840M2P-B
Color: Black & Silver
Support Drive Size: 1x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
Compatible Drive Type: M.2 PCIe 3.0/4.0 NVMe SSD
Number of Drives: 1
Support Drive Length: 30mm – 110mm
Drive Bay: 1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot
Host Interface: PCIe 3.0/4.0 x4
Power Input: Via PCIe
Transfer Rate: Up to 64Gbps (Depending on hard drive speed)
Support SDD Capacity: No Limitation
Drive Cooling: Metal heat dispersion with passive cooling
Structure / Material: Metal with partial ABS plastic
Dimension (W x H x D): 160 x 122 x 22mm
Product Net Weight: 181.5g
Package Net Weight: 260g
Drive Activity LED Indication: Drive power: solid green; HDD access: flashing green
Package contents: Device, user manual, screw, I/O Faceplate
 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Opertating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
Warranty : 5 years
