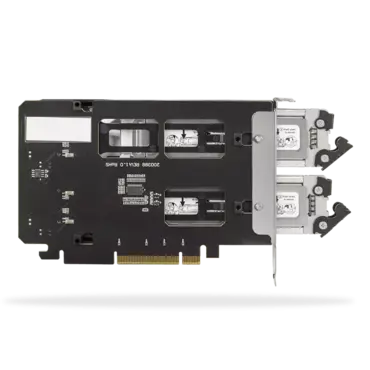

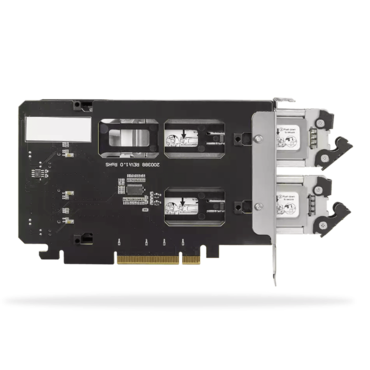

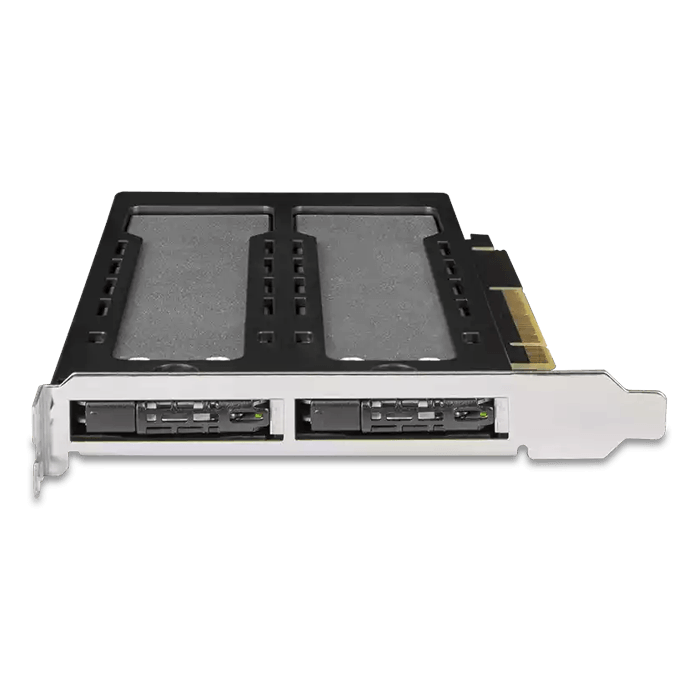

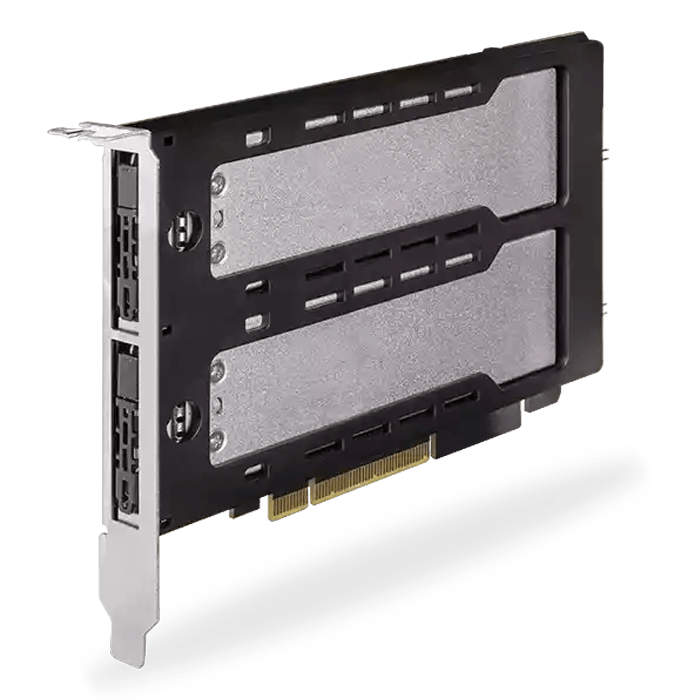

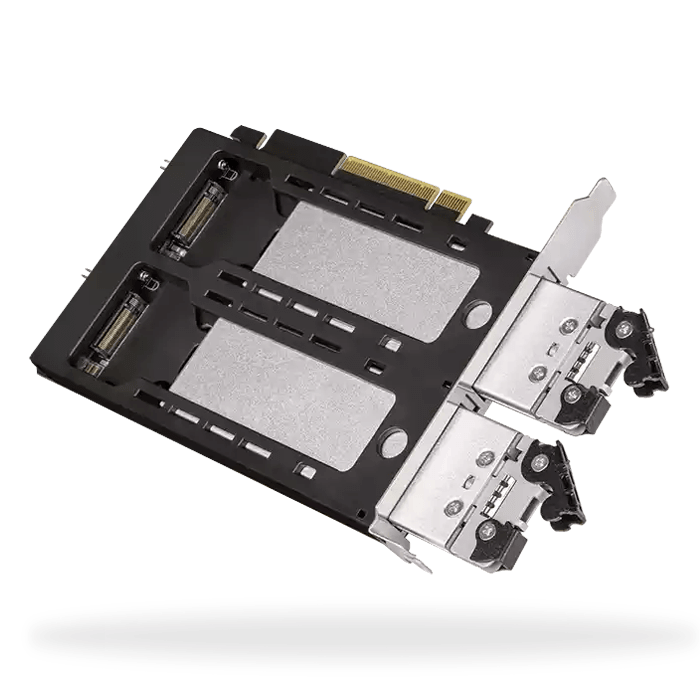

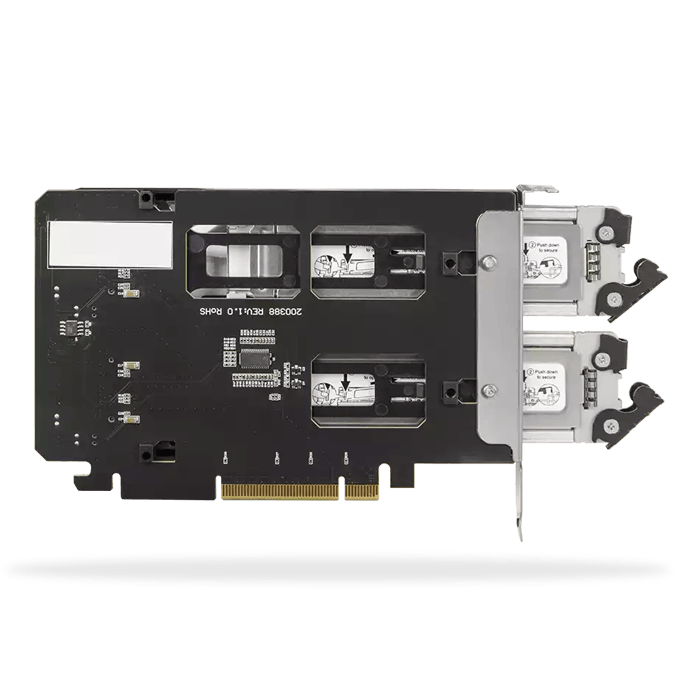

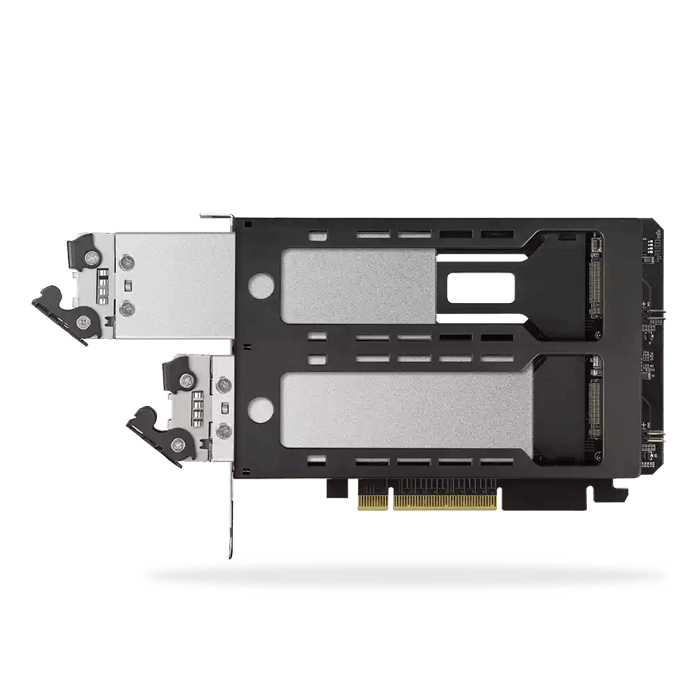

ToughArmor MB842MP-B, 2 Bay Removable M.2 NVMe SSD Mobile Rack for PCI Express Slot (PCIe Bifurcation required)

Quantity:
  • SKU: 16063899
  • Manufacturer: ICY DOCK
  • MPN: MB842MP-B
  • Availability: CONTACT US
Starting At
$200.67
  • Fits 2x M.2 PCIe NVMe SSD from 30-110mm (2230, 2243, 2260, 2280, 22110)
  • Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
  • Installs to a single-width full-height PCIe express slot
  • Removable drive tray with tool-less drive installation for easy drive maintenance
  • Eagle-hook lock system keeps the drive secured in the enclosure
  • EMI- Grounding – protects the hard drive from electrical damage
  • Active-Power Technology (APT) – saves power by shutting the device when no drive is installed
  • PCIe interface provides power and data transfer to reduce cable clutter
  • The included thermal pad conducts heat from the drive to the metal drive tray
  • Optional HDD activity signal output lets you transfer the drive activity signal to the computer case
  • Industry-leading 5-year limited warranty against all defects
  • Complimentary support from a professionally trained US-based technical support agent
Model Number: MB842MP-B
Color: Black & Silver
Support Drive Size: 2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
Compatible Drive Type: M.2 PCIe 3.0/4.0 NVMe SSD
Number of Drives: 2
Support Drive Length: 30mm – 110mm
Drive Bay: 1 x PCIe 3.0 or 4.0 x8 / x16 expansion slot (Motherboard required PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4)
Host Interface: PCIe 3.0/4.0 x8
Power Input: Via PCIe
Transfer Rate: Up to 64Gbps (Depending on dirve Speed)
Support SSD Capacity: No Limitation
Drive Cooling: Metal heat dispersion with passive cooling
Structure / Material: Metal with partial ABS plastic
Product Dimension (L x W x H) : 171 x 120.8 x 21.6 mm
Product Net Weight: 232.5g
Package GrossWeight: 336.8g
Drive Activity LED Indication: Drive power: solid green; HDD access: flashing green
Package contents: Device, User Manual, Screw, Thermal Pads
 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
Warranty: 5 years limited warranty
