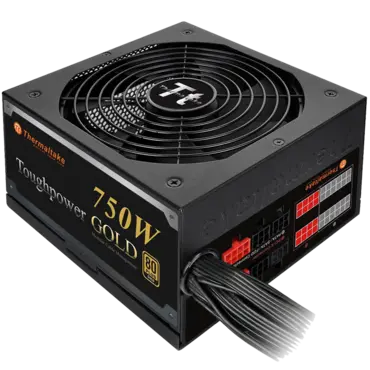

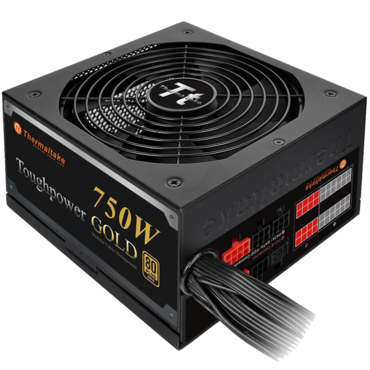

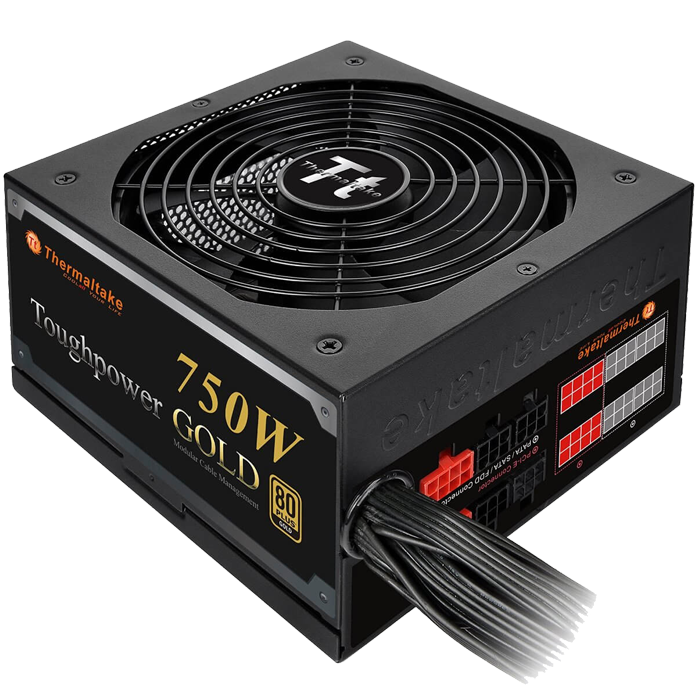

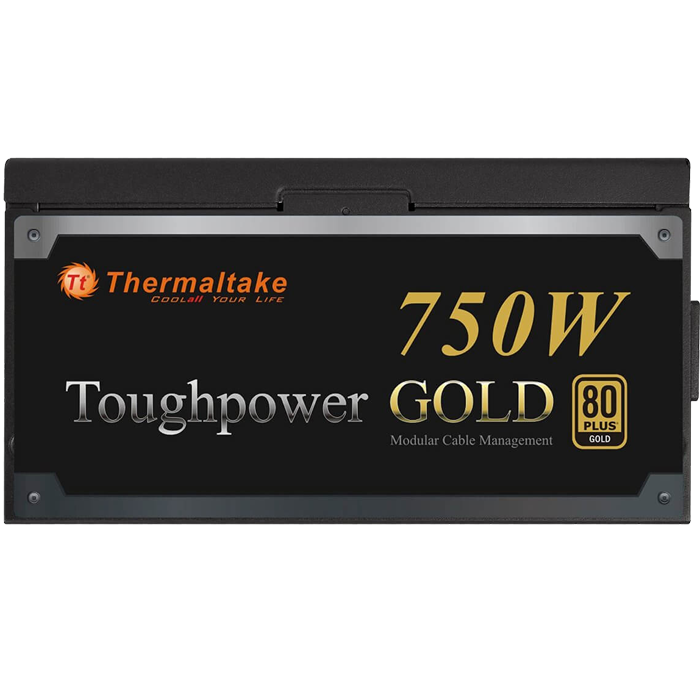

Toughpower, 80 PLUS Gold 750W, Semi Modular, ATX Power Supply
Quantity:
- SKU: 8472716
- Manufacturer: THERMALTAKE
- MPN: PS-TPD-0750MPCGUS-1
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$120.54
Toughpower, 80 PLUS Gold 750W, Semi Modular, ATX Power Supply
The Thermaltake Toughpower series is a premium 80 PLUS GOLD certified power supply that uses the highest quality components for stable performance, exvellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions. With the 80Plus Gold certification for its high power efficiency, and a single strong 12V rail flexibly routes the maximum available power to your CPU and graphics card, offering maximized power usage and easy setup. Toughpower 750W GOLD (Modular) comes with modular design to reduce cable clutter; and ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate at its peak moment.
- Maximum Power: 750 Watts
- Form Factor: Intel ATX 12V 2.3 & EPS 12V 2.92
- Efficiency: 87-92% efficiency at 20-100% load
- Power Factor Correction: Active PFC

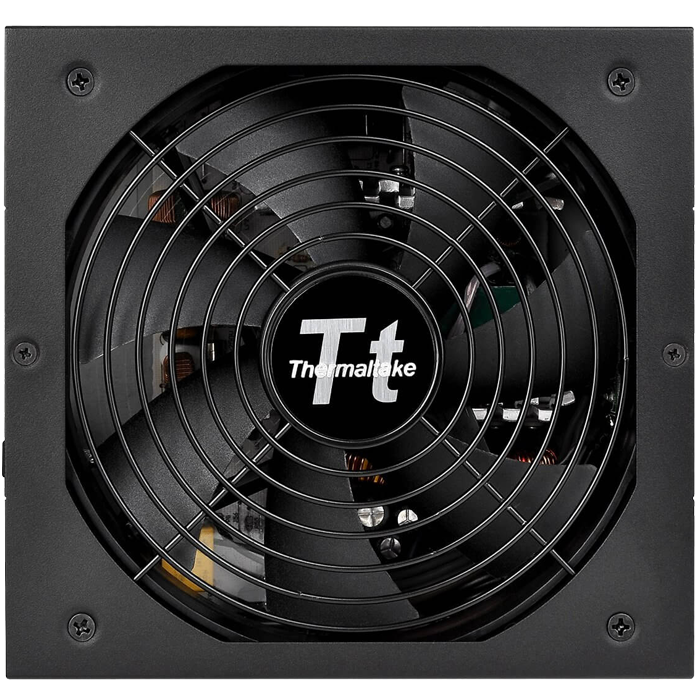

- Fan: 140mm Fan (2400 RPM A 10%)

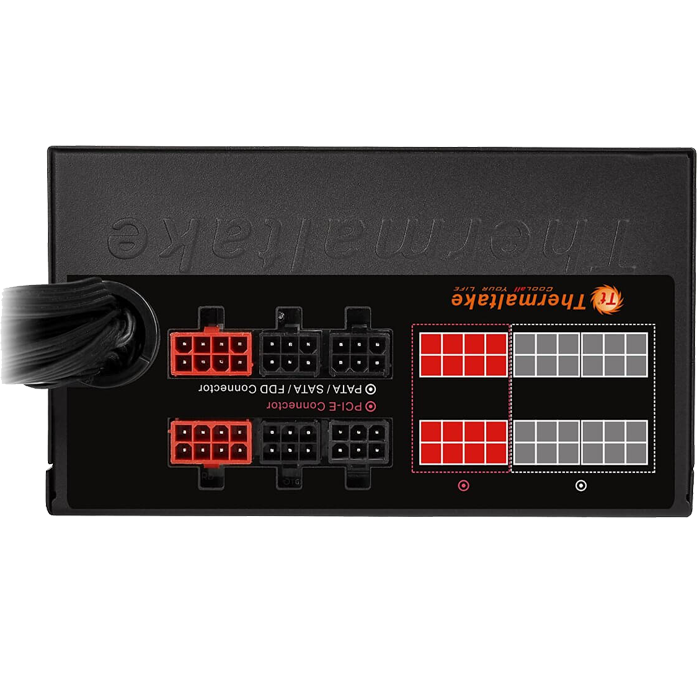

- Connectors: 1x 24pin Main Connector, 1x 4+4pin ATX 12V Connector, 4x 6+2pin PCI-Express Connectors, 12x 5pin SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
| P/N | PS-TPD-0750MPCGUS-1 |
| Short P/N | TPD-0750M |
| Model | TP-750AH2NFG |
| Type | Intel ATX 12V 2.3 & EPS 12V 2.92 |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| Dimension (H x W x D) | 86mm x 150mm x 160mm |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 17msec (minimum) @ full load at 115Vac/ 60Hz input |
| Input current | 10A – 5A |
| Input Frequency Range | 47 Hz - 63 Hz |
| Input Voltage | 100 Vac- 240 Vac |
| Operating Temperature | +0 °C to +40 °C |
| Operating Humidity | To 85% relative humidity,non-condensing |
| Storage Temperature | -40 °C to +70 °C |
| Storage Humidity | To 95% relative humidity, non-condensing |
| Cooling System | 140mm Fan: 2400 R.P.M. ± 10% |
| Efficiency | 87-92% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | UL/CUL, CE, FCC, TUV, CB, GOST and BSMI certified |
| PCI-E Connector | PCI-E 6+2pin x 4 |
