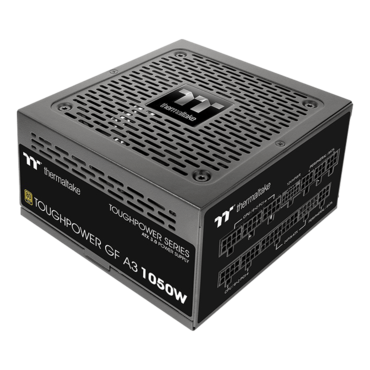

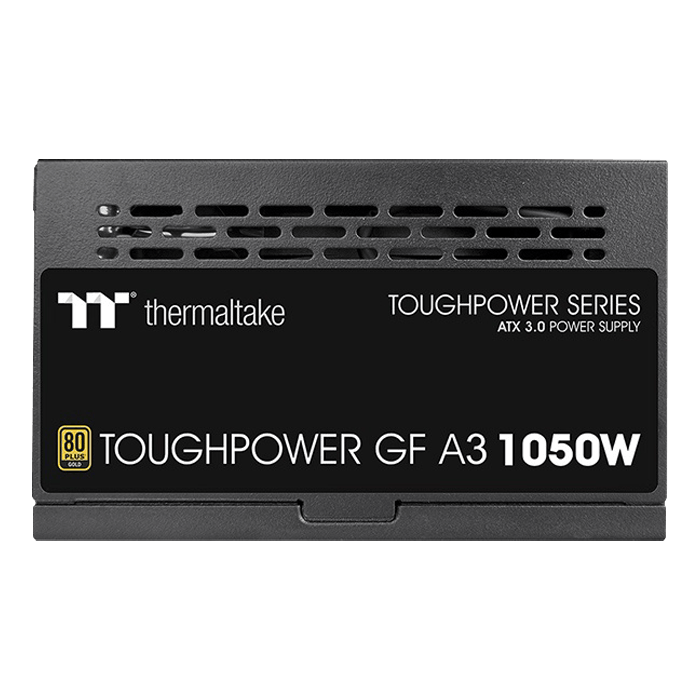

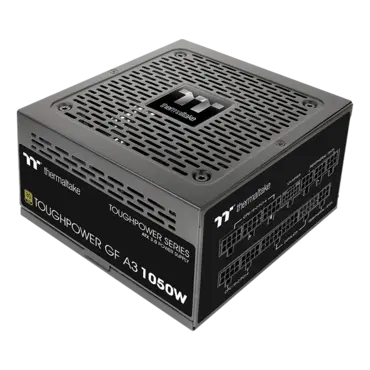

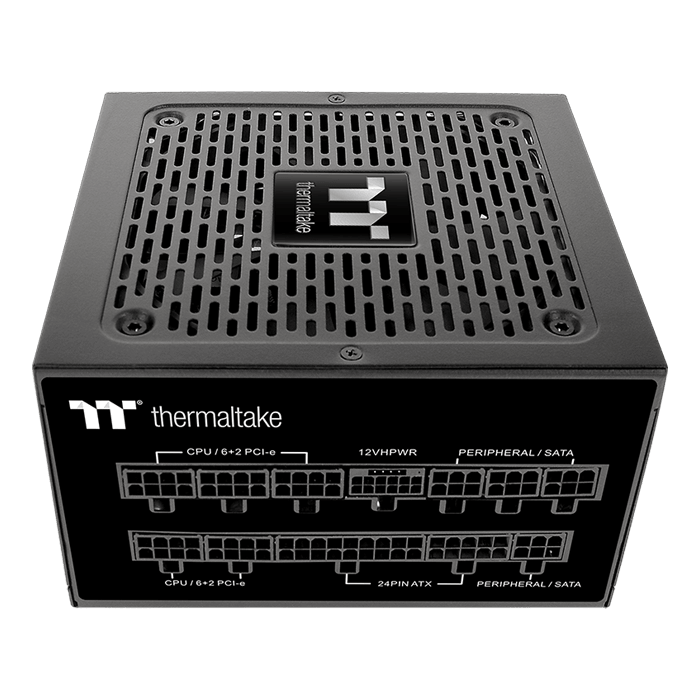

Toughpower GF A3 TTP-1050AH2FLG, 80 PLUS Gold 1050W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16022760
- Manufacturer: THERMALTAKE
- MPN: PS-TPD-1050FNFAGU-L
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$175.20
Toughpower GF A3 TTP-1050AH2FLG, 80 PLUS Gold 1050W, Fully Modular, ATX Power Supply
oughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.
| P/N | PS-TPD-1050FNFAGU-L |
| watts | 1050W |
| Model | TTP-1050AH2FLG |
| Max. Output Capacity | 1050W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec |
| Input Current | 16A-8A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100 - 240V~ |
| Operating Temperature | 5°C to + 45°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | FCC/ICES/CB/cTUVus |
| PCI-E 6+2pin | 5 |
| PCIe 12+4pin | 1(600W) |
