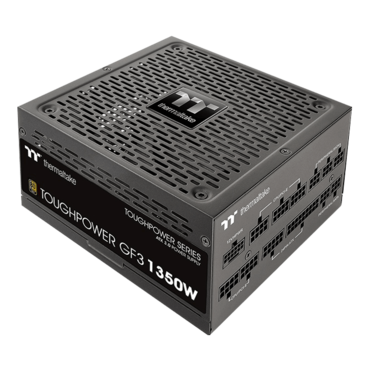

Toughpower GF3, 80 PLUS Gold 1350W, PCIe 5.0, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 15143233
  • Manufacturer: THERMALTAKE
  • MPN: PS-TPD-1350FNFAGU-4
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$285.19
Quantity:
Toughpower GF3, 80 PLUS Gold 1350W, PCIe 5.0, Fully Modular, ATX Power Supply
Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series (TPD-1350AH3FSG) is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. It can pipe up to 600W of power to PCIe 5.0 graphics cards
P/N PS-TPD-1350FNFAGU-4
WATTS 1350W
MODEL TPD-1350AH3FSG
MAX. OUTPUT CAPACITY 1350W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
WEIGHT 1.83 KG
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-250 msec
HOLD UP TIME > 17msec at 100% of full load
INPUT CURRENT 16 - 8A
INPUT FREQUENCY RANGE 50-60Hz
INPUT VOLTAGE 100 - 240V~
OPERATING TEMPERATURE 0°C to + 50°C
OPERATING HUMIDITY 20% to 90%, non-condensing
STORAGE TEMPERATURE -40°C to + 70°C
STORAGE HUMIDITY 20% to 95%, non-condensing

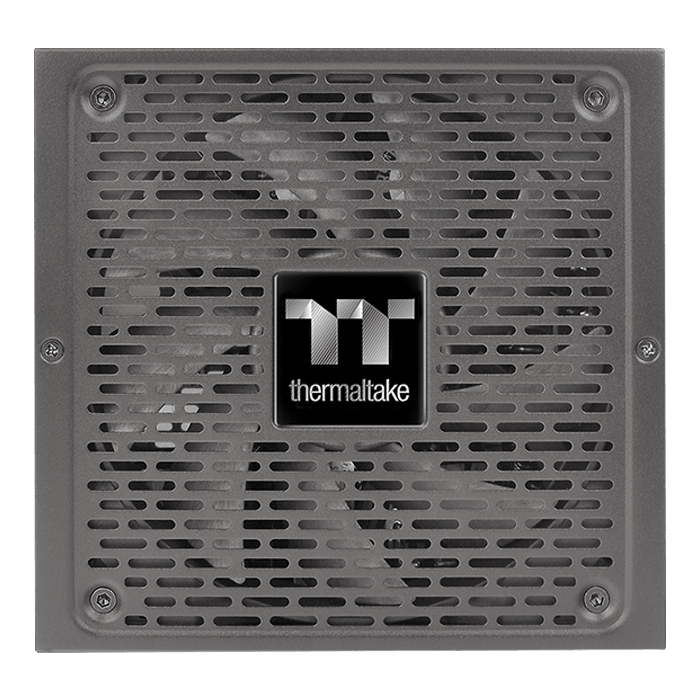

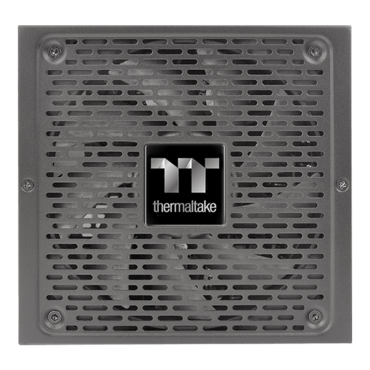

COOLING SYSTEM 14cm hydraulic bearing fan
EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/S-Mark/BIS/KCC

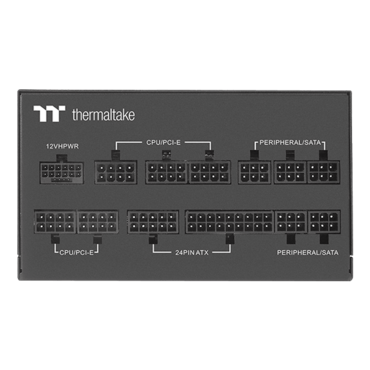

PCI-E 6+2PIN 6
PCIE 12+4PIN 1
