Toughpower GF3, 80 PLUS Gold 750W, PCIe 5.0, Fully Modular, ATX Power Supply
Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series (TPD-0750AH3FCG) is compatible with Intel‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.
Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series (TPD-0750AH3FCG) is compatible with Intel‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.
P/N | PS-TPD-0750FNFAGU-4 |
WATTS | 750W |
MODEL | TPD-0750AH3FCG |
MAX. OUTPUT CAPACITY | 750W |
COLOR | Black |
DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
WEIGHT | 1.63 KG |
PFC (POWER FACTOR CORRECTION) | Active PFC |
POWER GOOD SIGNAL | 100-150 msec |
HOLD UP TIME | > 17msec at 100% of full load |
INPUT CURRENT | 10.0A / 5.0A |
INPUT FREQUENCY RANGE | 50/60Hz |
INPUT VOLTAGE | 100V – 240V~ |
OPERATING TEMPERATURE | 0°C to + 40°C |
OPERATING HUMIDITY | 20% to 90%,non-condensing |
STORAGE TEMPERATURE | -20°C to + 70°C |
STORAGE HUMIDITY | 5% to 95%, non-condensing |
COOLING SYSTEM | 13.5cm fluid bearing fan |
EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
MTBF | 100,000 hrs minimum |
SAFETY APPROVAL | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC |

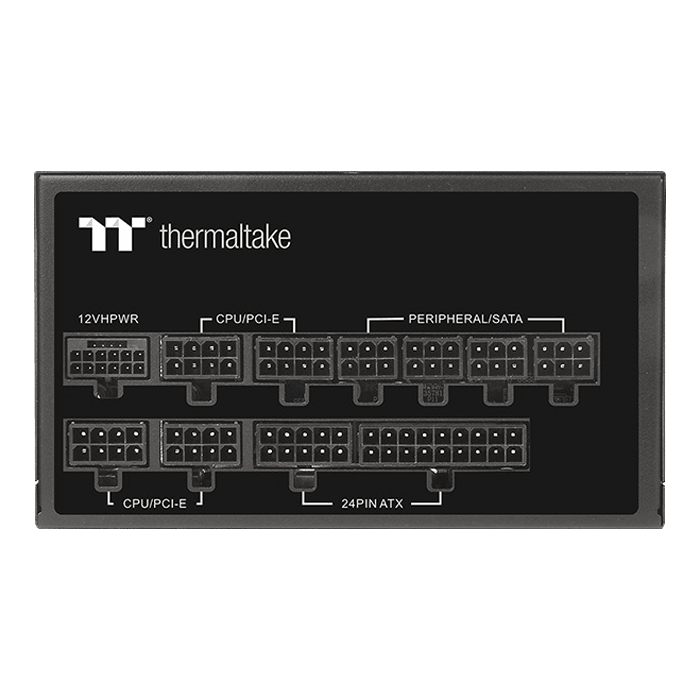

PCI-E 6+2PIN | PCIe 6+2Pin X 4 PCIe 12+4Pin X 1 |
PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
