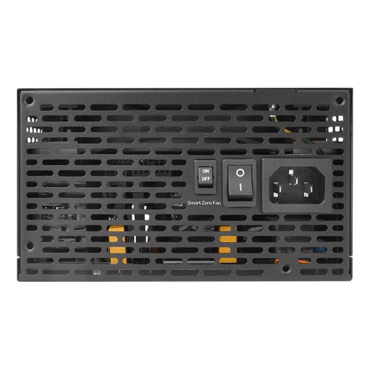

Toughpower GF3, 80 PLUS Gold 850W, PCIe 5.0, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 15143238
  • Manufacturer: THERMALTAKE
  • MPN: PS-TPD-0850FNFAGU-4
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$132.64
Quantity:
Toughpower GF3, 80 PLUS Gold 850W, PCIe 5.0, Fully Modular, ATX Power Supply
Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series (TPD-0850AH3FCG) is compatible with Intel‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.
P/N PS-TPD-0850FNFAGU-4
WATTS 850W
MODEL TPD-0850AH3FCG
MAX. OUTPUT CAPACITY 850W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
WEIGHT 1.69 KG
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-150 msec
HOLD UP TIME > 17msec at 100% of full load
INPUT CURRENT 10.0A / 5.0A
INPUT FREQUENCY RANGE 50/60 Hz
INPUT VOLTAGE 100V – 240V~
OPERATING TEMPERATURE 0°C to + 40°C
OPERATING HUMIDITY 20% to 90%,non-condensing
STORAGE TEMPERATURE -20°C to + 70°C
STORAGE HUMIDITY 5% to 95%, non-condensing
COOLING SYSTEM 13.5cm fluid bearing fan
EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
PROTECTION OCP, OVP, UVP, OPP, SCP, OTP
CONNECTOR PCIe 6+2Pin X 4
PCIe 12+4Pin X 1
