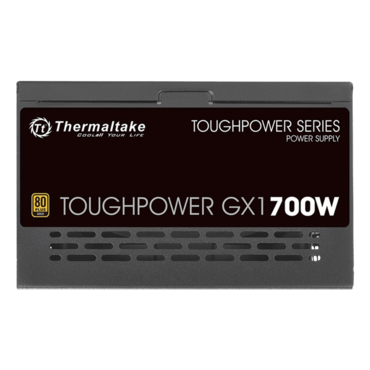

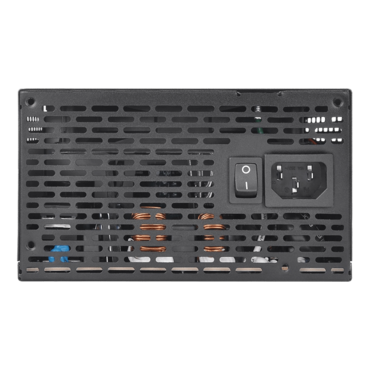

Toughpower GX1, 80 PLUS Gold 700W, No Modular, ATX Power Supply

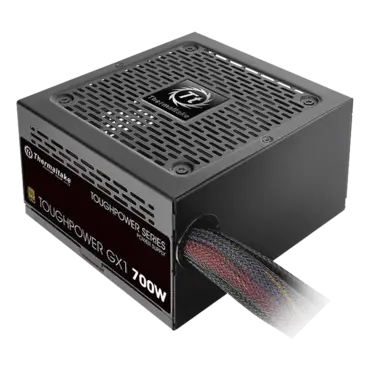

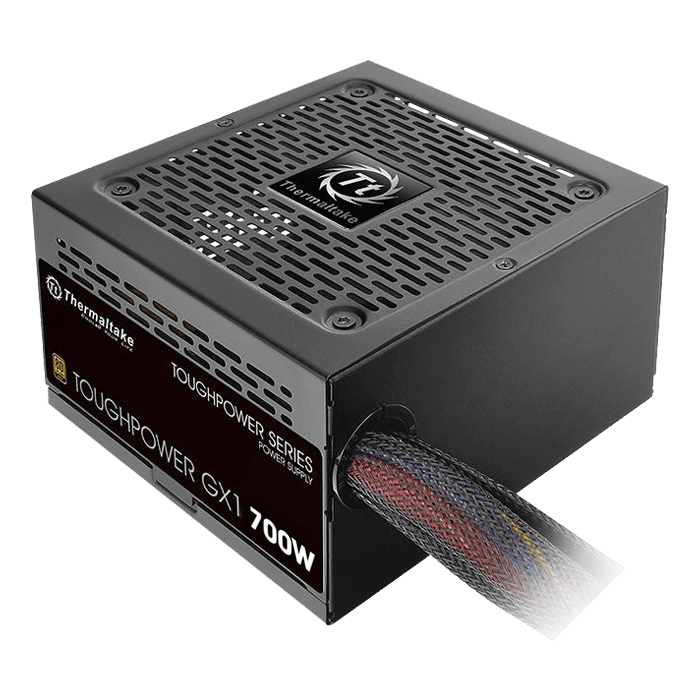

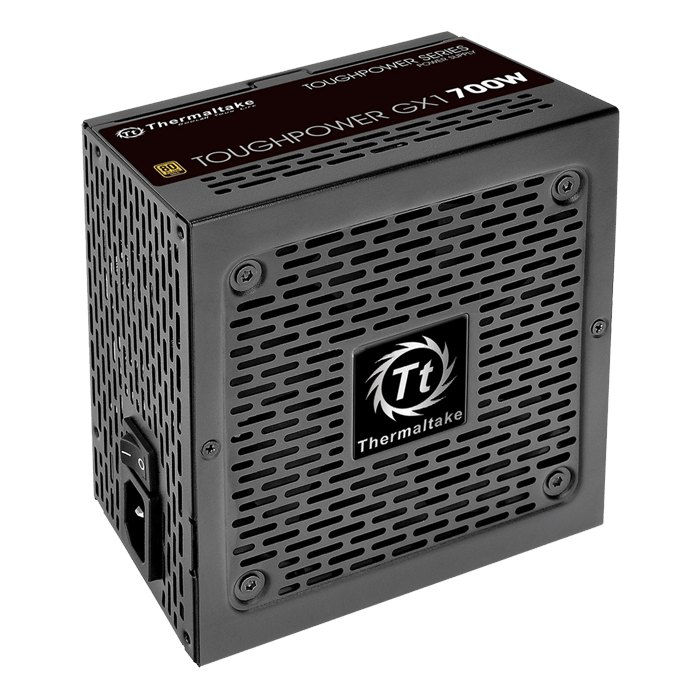

Thermaltake Toughpower GX1 700W
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 comes with capacities ranging from 500W to 700W, and the application of 120mm Fluid Dynamic Bearing Fan, <±3% tight voltage regulation, Japanese 105°C/221°F main capacitors and premium components. Its near silent operation, trouble free installation and reliable performance are making itself one of the best values for basic system upgrades.
P/N | PS-TPD-0700NNFAGx-1 |
Model | SP-700AH2NCG |
Type | ATX 12V v2.4 and EPS v2.92 |
Max. Output Capacity | 700W |
Peak Output Capacity | 840W |
Color | Black |
Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | > 12msec at 80% of full load |
Input current | 10A max. |
Input Frequency Range | 47Hz - 63Hz |
Input Voltage | 100V – 240V~ |
Operating Temperature | 0°C to + 40°C |
Operating Humidity | 20% to 90%, non-condensing |
Storage Temperature | -20°C to + 70°C |
Storage Humidity | 5% to 95%, non-condensing |

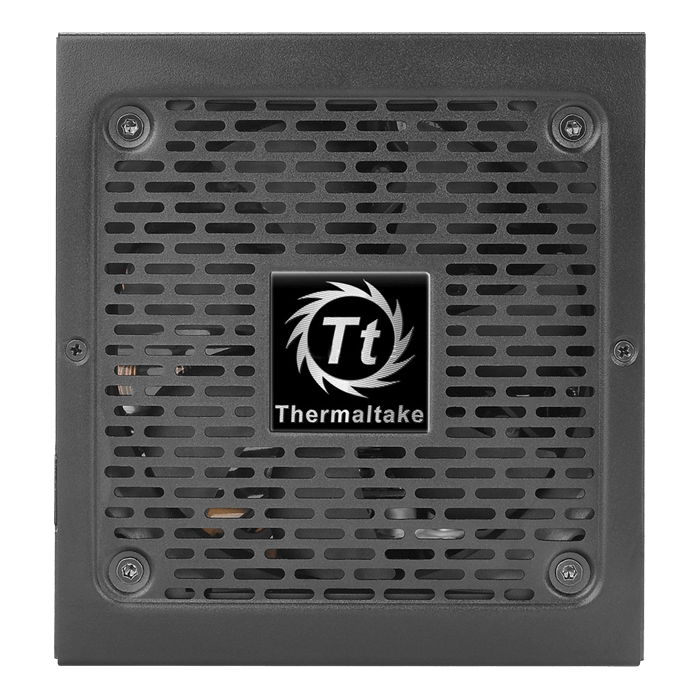

Cooling System | 12cm fluid dynamic bearing fan |
Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
MTBF | 100,000 hrs minimum |
Safety Approval | CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark |
PCI-E 6+2pin | 4 |
