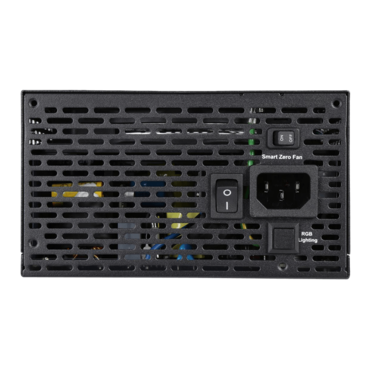

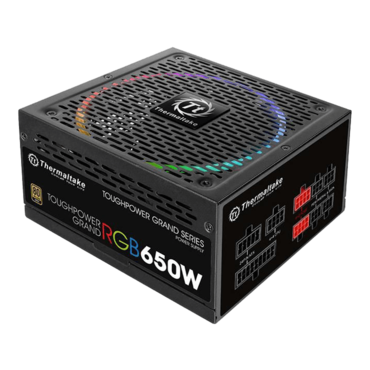

Toughpower Grand RGB, 80 PLUS Gold 650W, Fully Modular, ATX Power Supply
- SKU: 10969573
- Manufacturer: THERMALTAKE
- MPN: PS-TPG-0650FPCGUS-R
- Availability: TEMPORARILY OUT OF STOCK
Price
$121.88
- Compliance with Intel ATX 12V 2.4 & SSI EPS 12V 2.92 standards
- 80 PLUS GOLD certified - 90% efficiency under typical load
- Single +12V rail Design offers 62.5A of power and includes (4x) PCI-E 6+2 power connectors

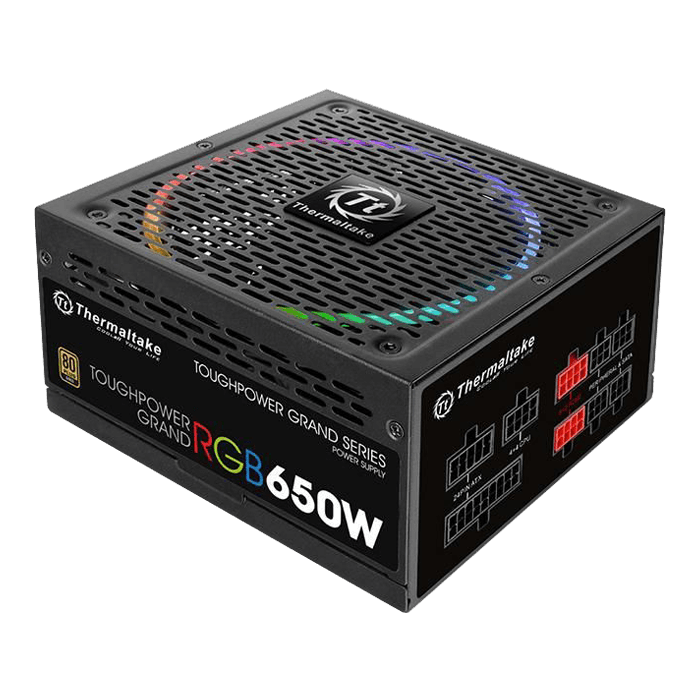

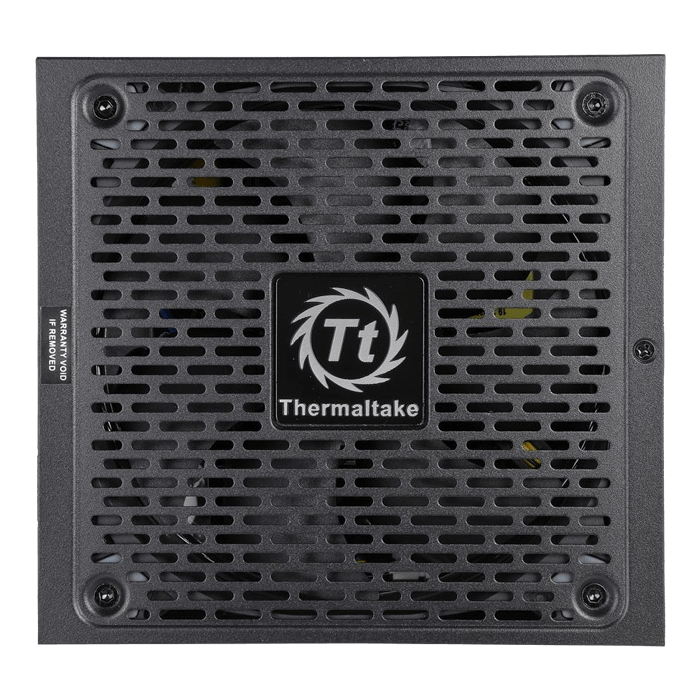

- Patented 256 color Riing 14 (140mm) RGB fan with multiple lighting modes and built-in memory

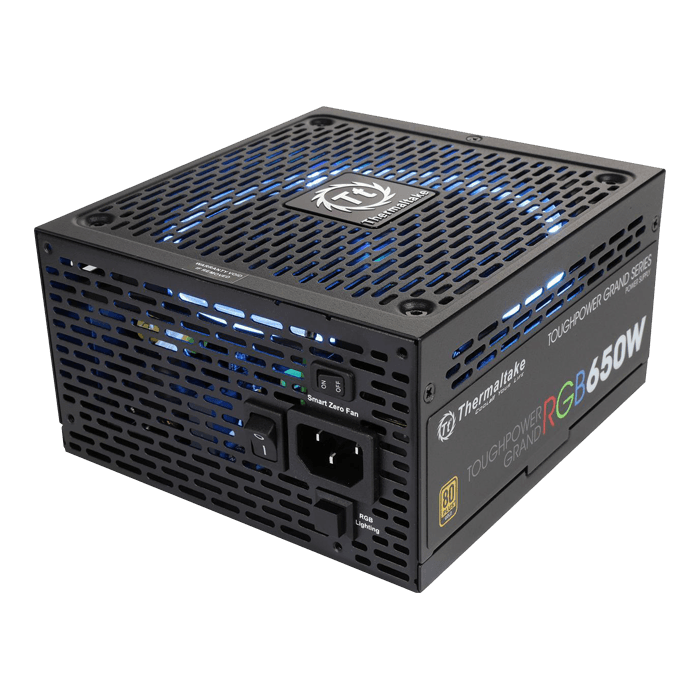

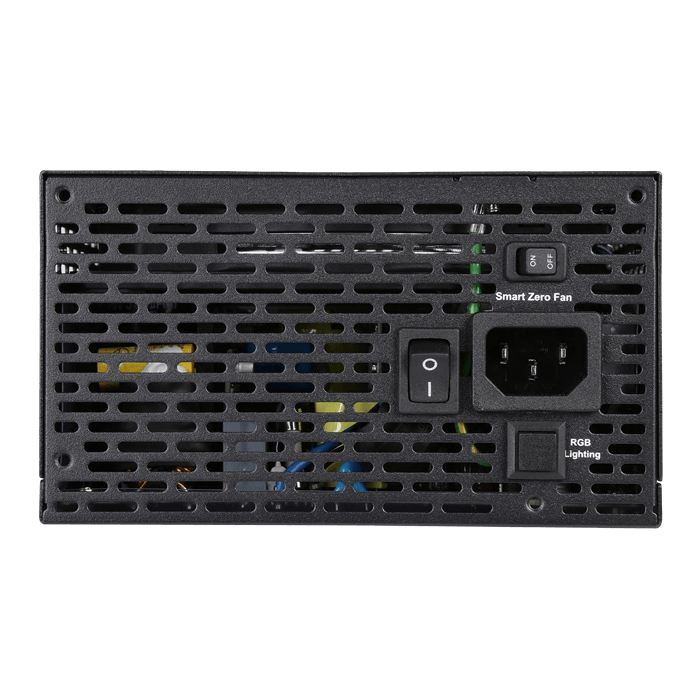

- Smart Zero Fan: Minimizes undesired noise with 0dB options available
- Full modular design with low profile black flat cables
- 100% 105 degree C / 221 degree F High quality Japanese capacitors.
- Intel Skylake’s C6/C7 states & ErP ready
- Improvements in Ripple Noise and Extremely Strict Voltage Regulation provides exceptional steady clean power.
- Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit protection
| Model | |
| Brand | Thermaltake |
| Model | PS-TPG-0650FPCGUS-R |
| Series | Toughpower Grand RGB Gold |
| Details | |
| Type | Intel ATX 12V 2.4 & SSI EPS 12V 2.92 |
| Maximum Power | 650W |
| Fans | 1 x 140mm Hydraulic Bearing Fan |
| Fan LED | RGB |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 9 |
| Modular | Full Modular |
| Efficiency | 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50 - 60 Hz |
| Input Current | 10A |

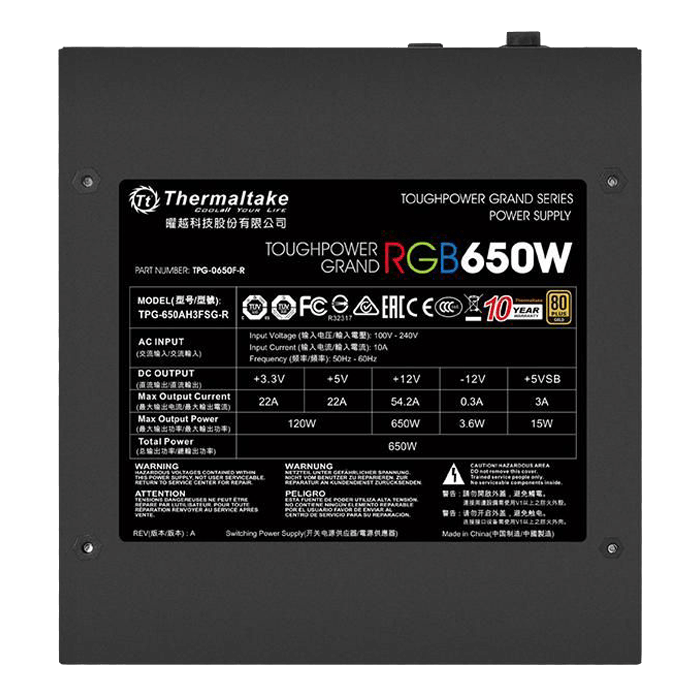

| Output | +3.3V@22A, +5V@22A, [email protected], [email protected], +5VSB@3A |
| MTBF | >120,000 Hours |
| Approvals | CE, cTUVus, TUV, SUD, FCC, CCC, BSMI, EAC |
| Dimensions | 3.39" x 5.91" x 6.29" |
| Max PSU Length | 160 mm |
| Weight | 7.20 lbs. |
| Features | |
| Connectors |

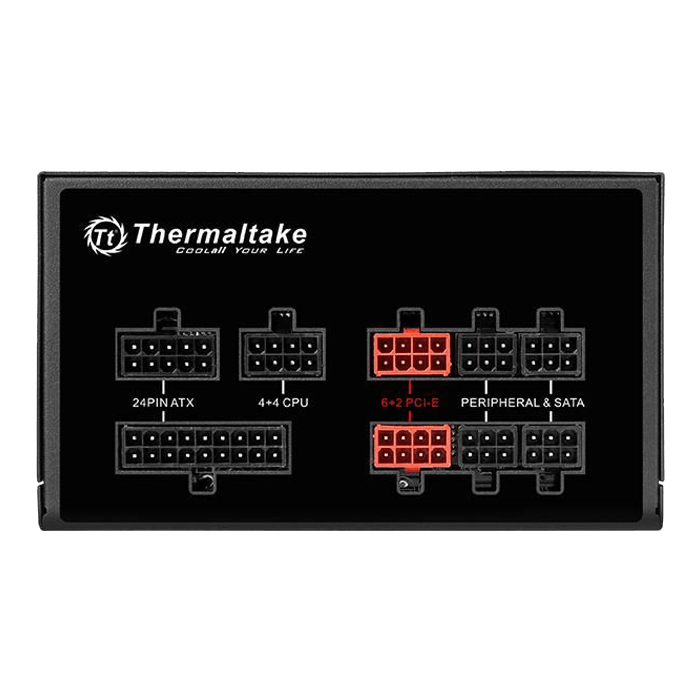

1 x 24-pin ATX 1 x 4+4pin EPS 4 x 6+2 PCI-E 9 x SATA 4 x Peripheral 1 x Floppy |
