- Compliance with Intel ATX 12V 2.4 & SSI EPS 12V 2.92 standards
- 80 PLUS GOLD certified - 90% efficiency under typical load
- Single +12V raial Design offers 70.9A of power and includes (4 x) PCI-E 6+2 power connectors

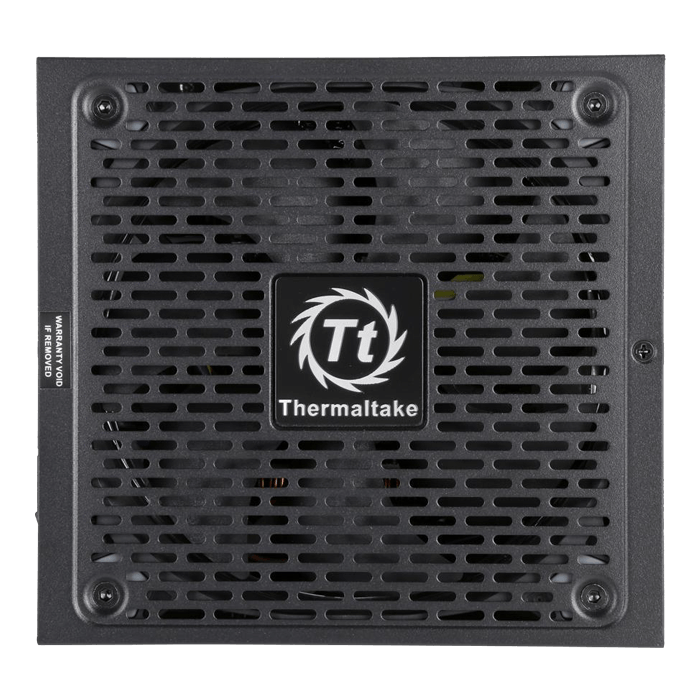

- Patented 256 color Ring 14 (140mm) RGB fan with multiple lighting modes and built-in memory

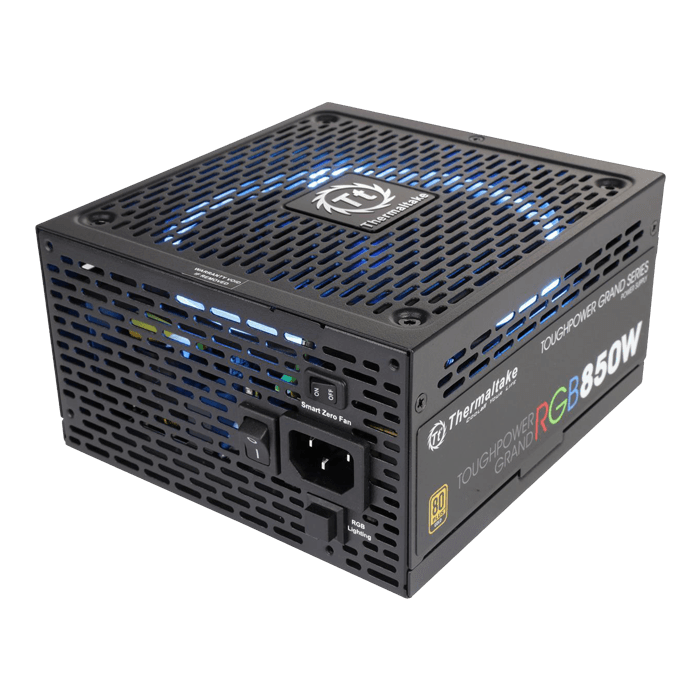

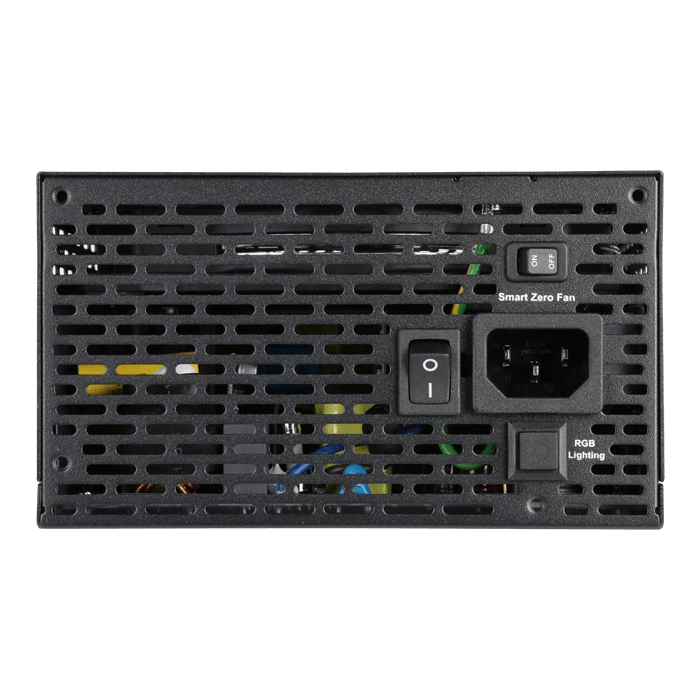

- Smart Zero Fan: Minimizes undesired noise with 0dB options available
- Full modular design with low profile black flat cables
- 100% 105 degree C / 221 degree F High quality Japanese capacitors
- Intel Skylake's C6/C7 states & ErP ready
- Improvements in Ripple Noise and Extremely Strict Voltage Regulation provides exceptional steady clean power
- Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit protections
Model | |
Brand | Thermaltake |
Model | PS-TPG-0850FPCGUS-R |
Series | Toughpower Grand RGB Gold |
Details | |
Type | Intel ATX 12V 2.4 & SSI EPS 12V 2.92 |
Maximum Power | 850W |
Fans | 1 x 140mm Hydraulic Bearing Riing RGB fan |
Fan LED | RGB |
PFC | Active |
Main Connector | 24Pin |
+12V Rails | Single |
PCI-Express Connector | 6 x 6+2-Pin |
SATA Power Connector | 12 |
Modular | Full Modular |
Power Good Signal | 100-500ms |
Efficiency | 90% |
Energy-Efficient | 80 PLUS GOLD Certified |
Over Voltage Protection | Yes |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50 - 60 Hz |
Input Current | 12A |

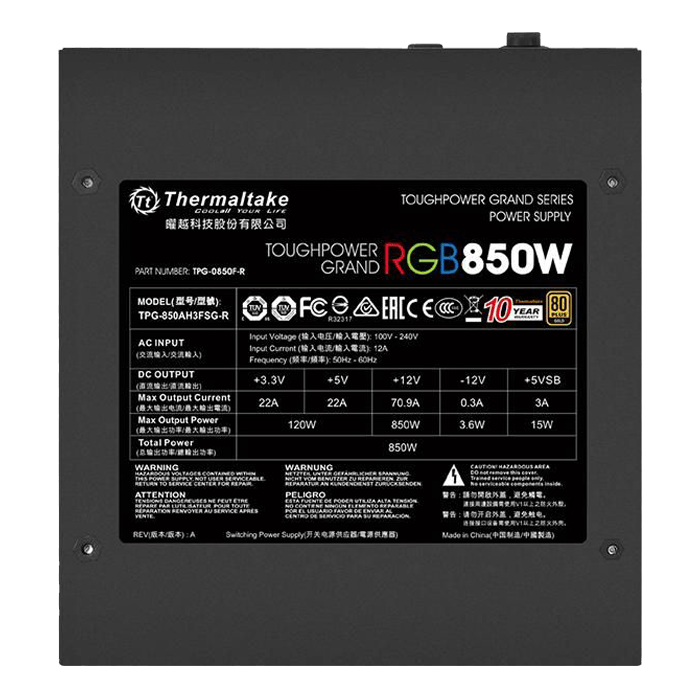

Output | +3.3V@22A, +5V@22A, [email protected], [email protected], +5VSB@3A |
MTBF | 120,000 Hours |
Approvals | CE, cTUVus, TUV, SUD, FCC, CCC, BSMI, EAC |
Dimensions | 3.39" x 5.91" x 6.29" |
Max PSU Length | 160 mm |
Weight | 7.25 lbs. |
Features | |
Connectors |

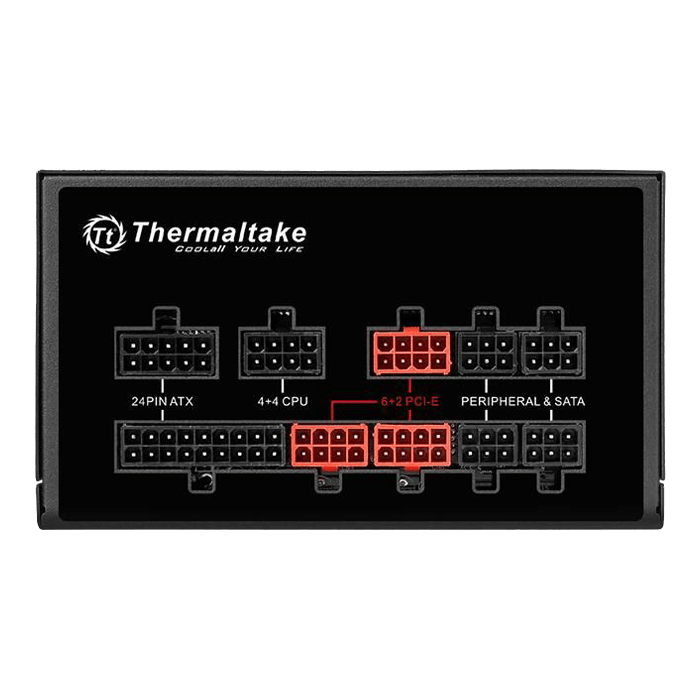

1 x 24-pin ATX 2 x 4+4pin EPS 6 x 6+2 PCI-E 12 x SATA 4 x Peripheral 1 x Floppy |
