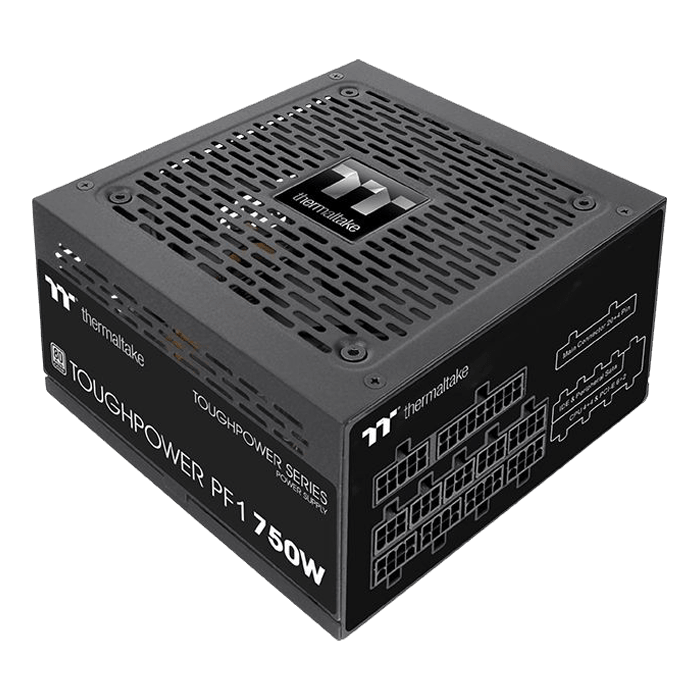

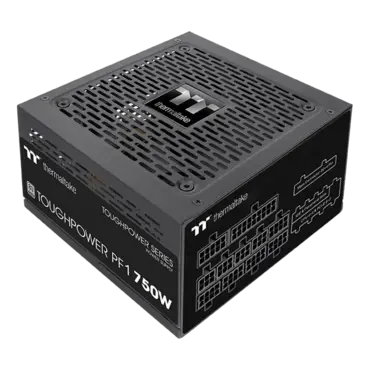

Toughpower PF1, 80 PLUS Platinum 750W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13542753
- Manufacturer: THERMALTAKE
- MPN: PS-TPD-0750FNFAPU-1
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$159.34
Toughpower PF1, 80 PLUS Platinum 750W, Fully Modular, ATX Power Supply

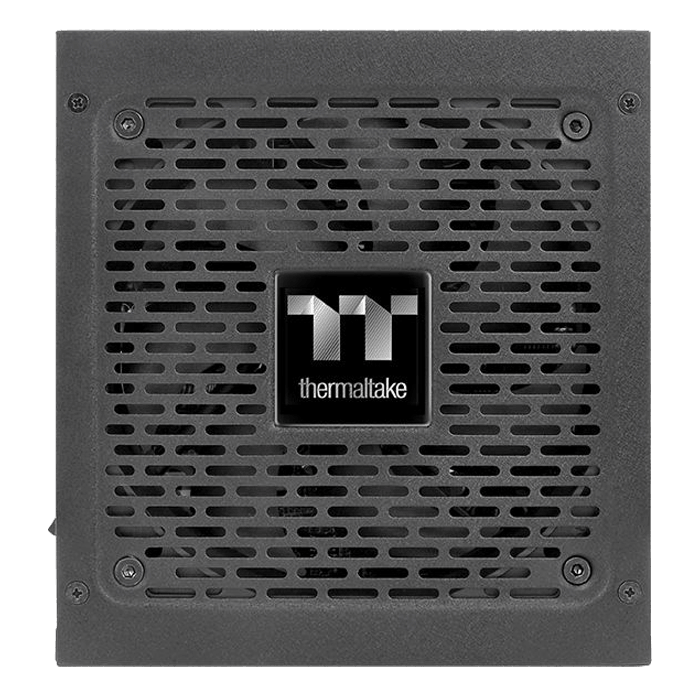

Thermaltake Toughpower PF1 (PS-TPD-0750FNFAPU-1). Toughpower PF1 750W - TT Premium Edition. The Toughpower PF1 Platinum Series comes in 850W/750W/650W and delivers 80 PLUS Platinum efficiency. Besides the fundamental features listed below, The PF1 Platinum Series has two other critical characteristics – compact size and our new board technology. With the small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 prides its ample space for cable management. The new board technology offers single sided SMD which all IC chips are set to only one side, allowing the heat to only be accumulated on one side so the entire board can be covered and cooled down by the 120mm ultra quiet Hydraulic Bearing Fan.
| P/N | PS-TPD-0750FNFAPU-1 |
| WATTS | 750W |
| MODEL | TTP-750AH2FKP |
| MAX. OUTPUT CAPACITY | 750W |
| PEAK OUTPUT CAPACITY | 900W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 100% of full load |
| INPUT CURRENT | 10A |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100V – 240V |
| OPERATING TEMPERATURE | 5°C to + 50°C |
| OPERATING HUMIDITY | 20% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm hydraulic bearing fan |
| EFFICIENCY | Meet 80PLUS®Platinum at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| SAFETY APPROVAL | OVP/OCP/CE/UL/TÜV/FCC/BSMI/CCC/ EAC |
| PCI-E 6+2PIN | 4 |
