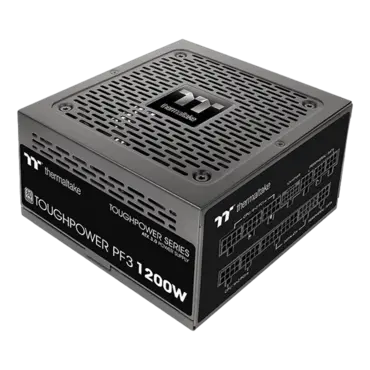

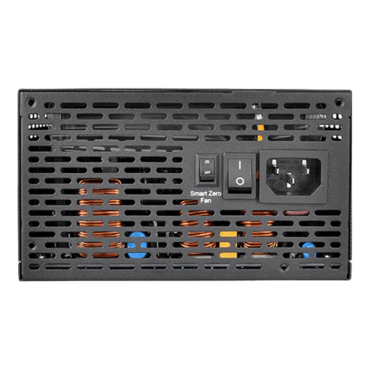

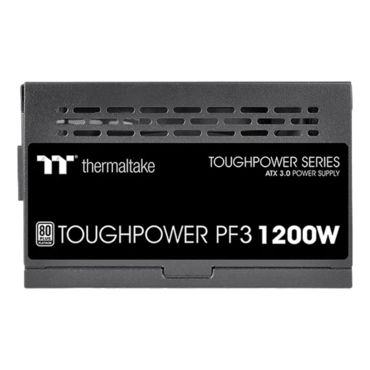

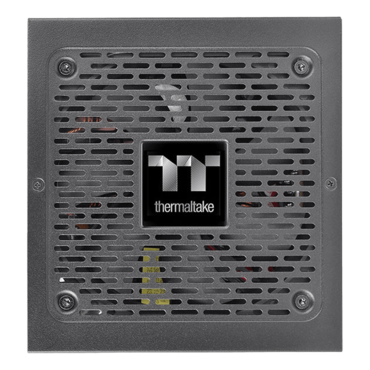

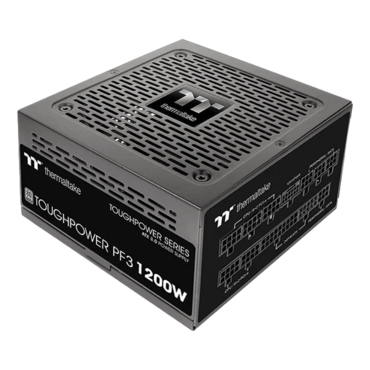

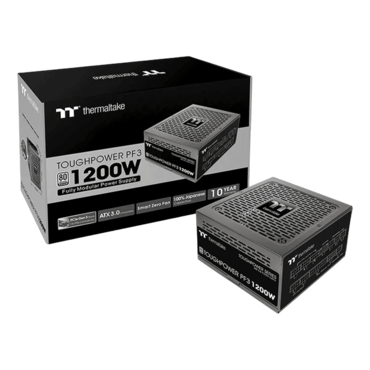

Toughpower PF3 TPD-1200AH2FLP, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16288685
- Manufacturer: THERMALTAKE
- MPN: PS-TPD-1200FNFAPU-L
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$256.28
Toughpower PF3 TPD-1200AH2FLP, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
Power Up Next Generation Hardware
To fully support next-gen hardware, Toughpower PF3 Platinum Series 1200W is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.
| P/N | PS-TPD-1200FNFAPU-L |
| Model | TPD-1200AH2FLP |
| Watts | 1200W |
| Max Output Capacity | 1200W |
| Color | Black |
| Dimensions | 140mm(W)x86mm(H)x150mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec |
| Input Current | 20A-8A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperture | +5°C to +40°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperture | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | FCC/ICES/CB/cTUVus |
| PCI-E 6+2PIN | 5 |
| PCI-E 12+4PIN | 1 |
