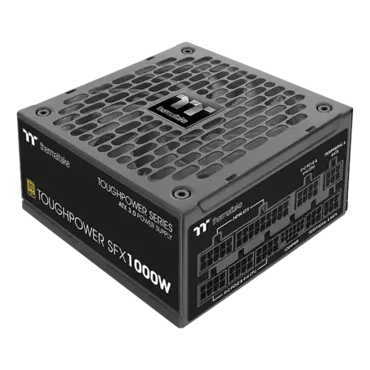

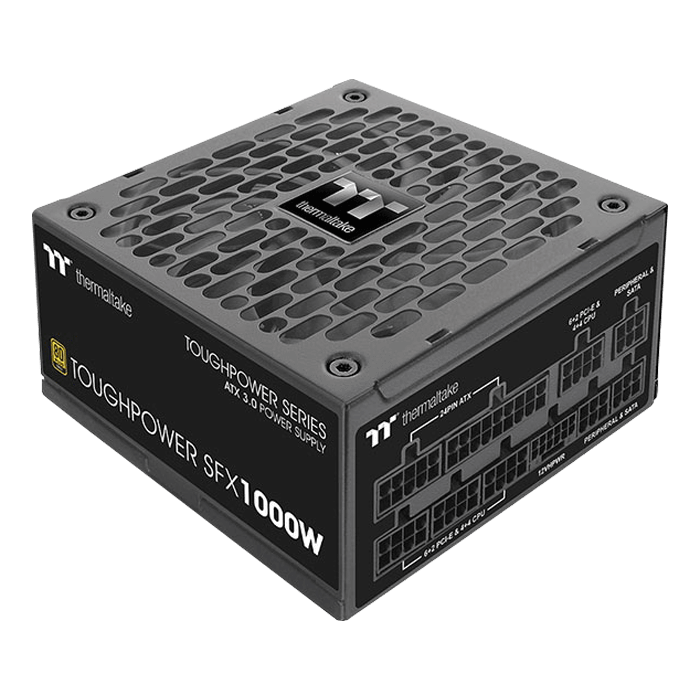

Toughpower SFX-1000AH2FKG, 80 PLUS Gold 1000W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 15353081
- Manufacturer: THERMALTAKE
- MPN: PS-STP-1000FNFAGU-1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$215.61
Toughpower SFX-1000AH2FKG, 80 PLUS Gold 1000W, Fully Modular, SFX Power Supply
Designed with a native PCIe 12+4pin modular connector, the Toughpower SFX series is built for next-gen PCIe Gen 5.0 graphic cards, and is fully compatible with Intel ATX 3.0 specifications. The fully modular Toughpower SFX series comes in 1000W, 850W, and 750W, and is built to deliver 80 PLUS Gold efficiency. The compact size of Toughpower SFX Gold series perfectly fits in any ATX or ITX case.
| P/N | PS-STP-1000FNFAGU-1 |
| watts | 1000W |
| Model | SFX-1000AH2FKG |
| Max. Output Capacity | 1000W |
| Color | Black |
| Dimension ( W / H / D ) | 125mm(W)x63.5mm(H)x126mm(D) |
| Weight | 1.2 KG |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 17msec at 100% of full load |
| Input Current | 15A Max. |
| Input Frequency Range | 50 - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 45°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |

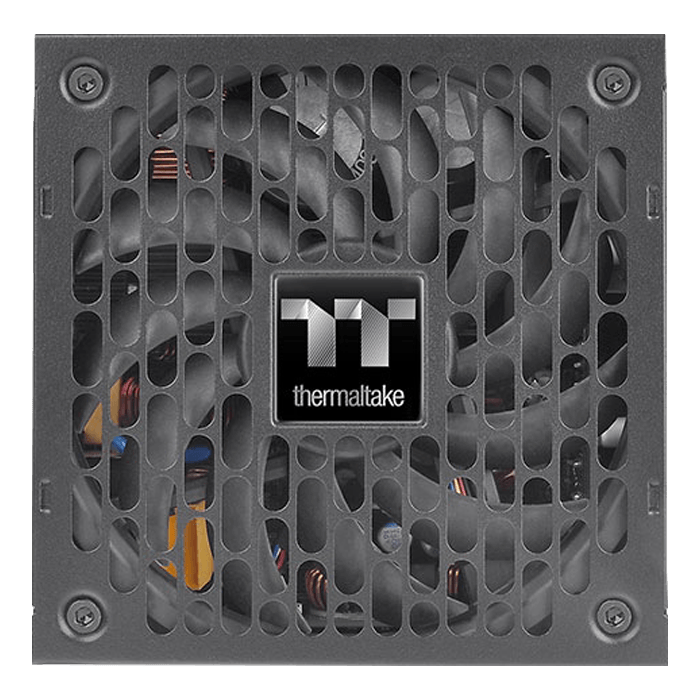

| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |

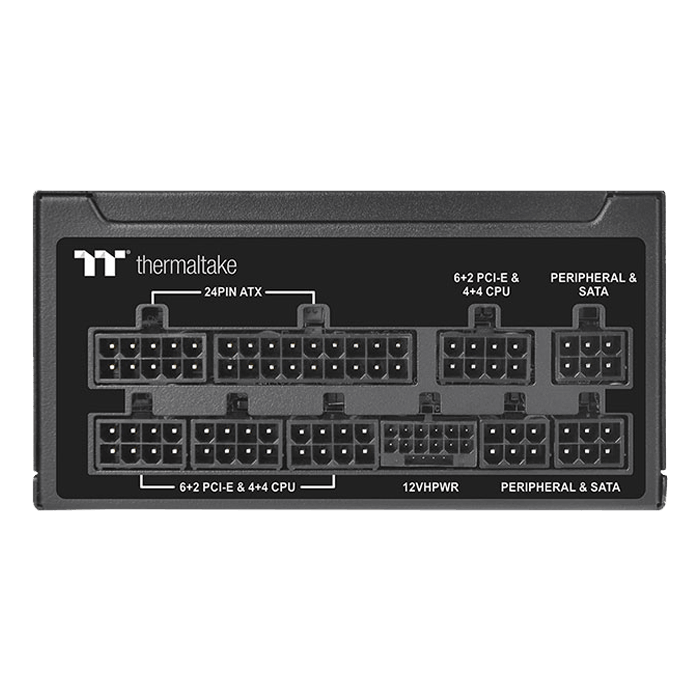

| PCI-E 6+2pin | 4 |
| PCIe 12+4pin | 1 |
