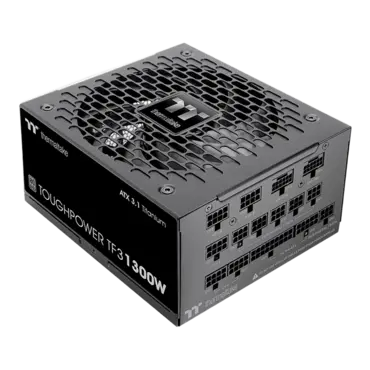

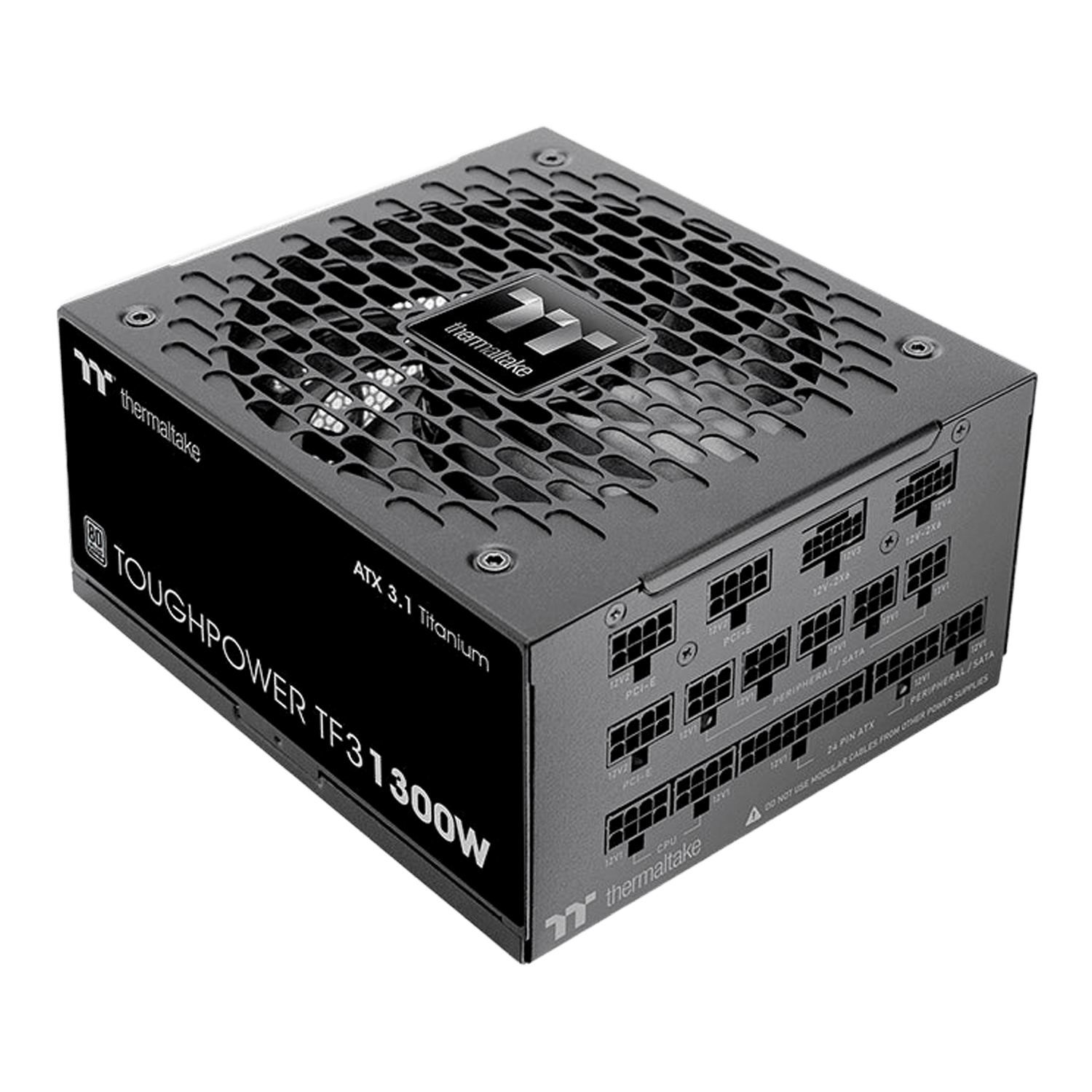

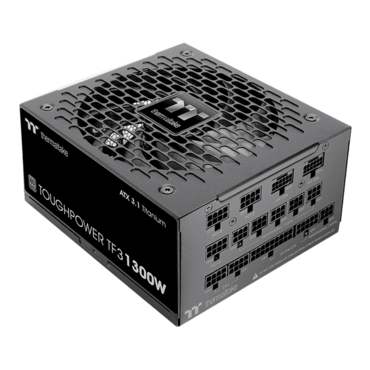

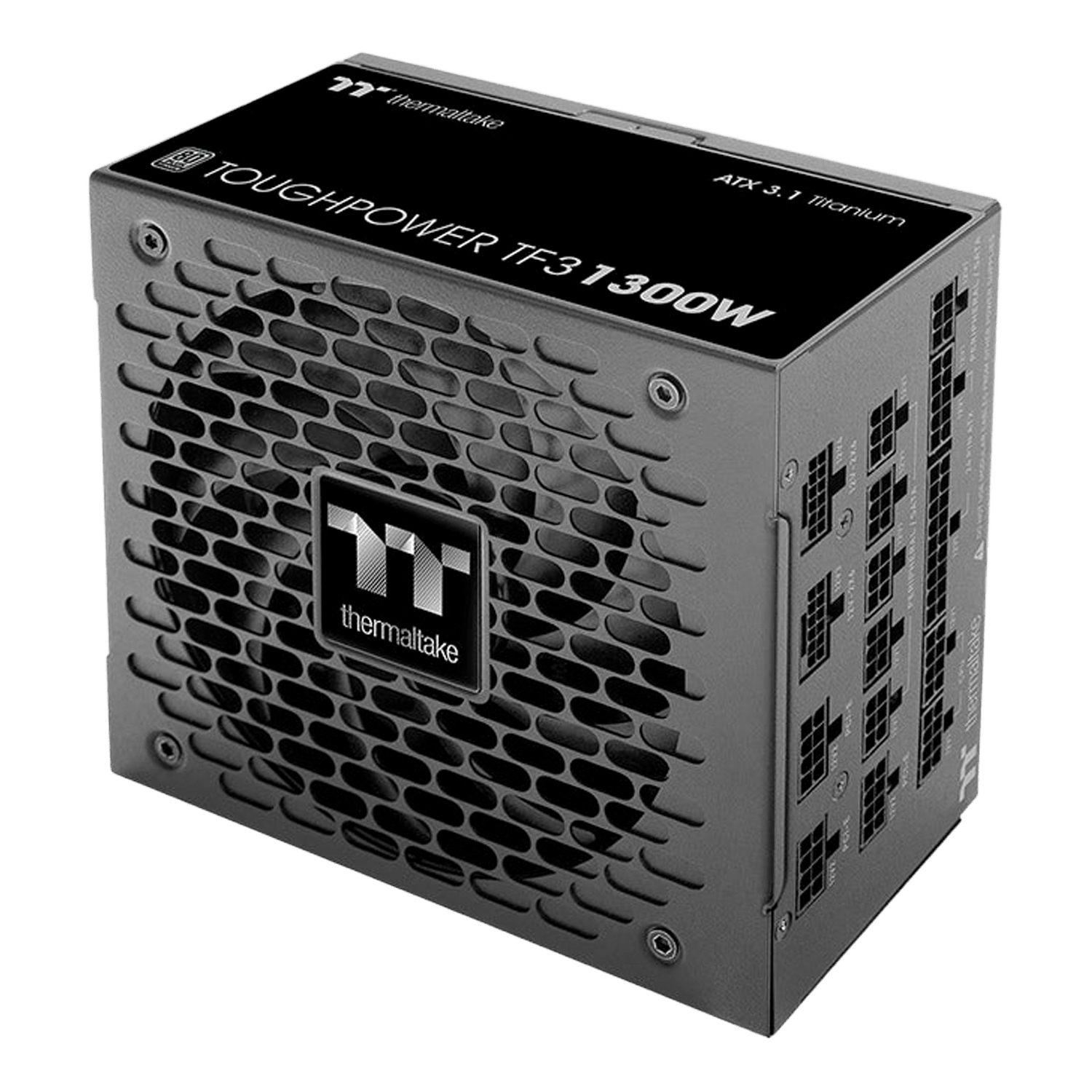

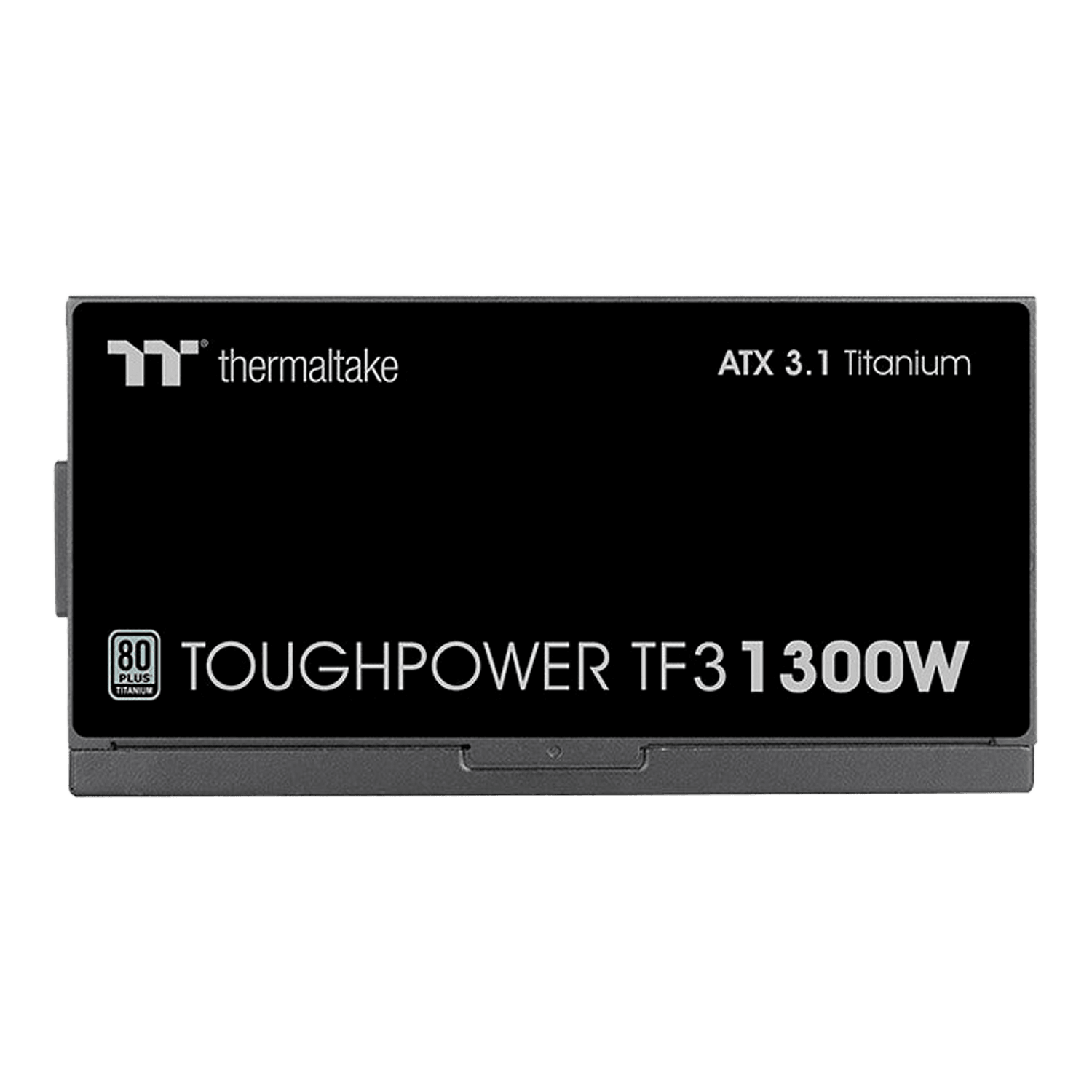

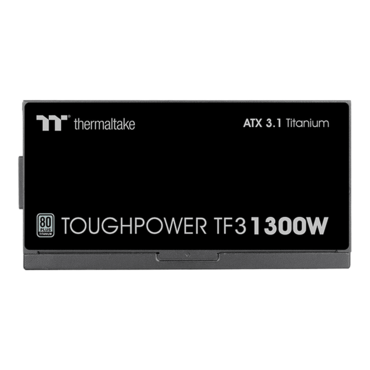

Toughpower TF3 1300W, 80 PLUS Titanium 1300W, Fully Modular, ATX Power Supply
- SKU: 19018993
- Manufacturer: THERMALTAKE
- MPN: PS-TPD-1300FNFATU-1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Toughpower TF3 1300W, 80 PLUS Titanium 1300W, Fully Modular, ATX Power Supply

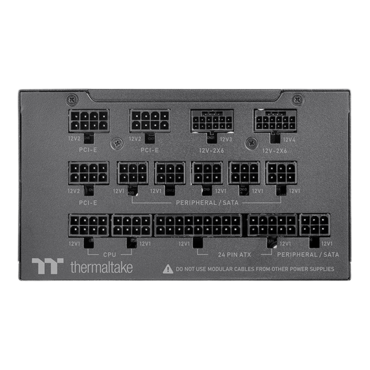

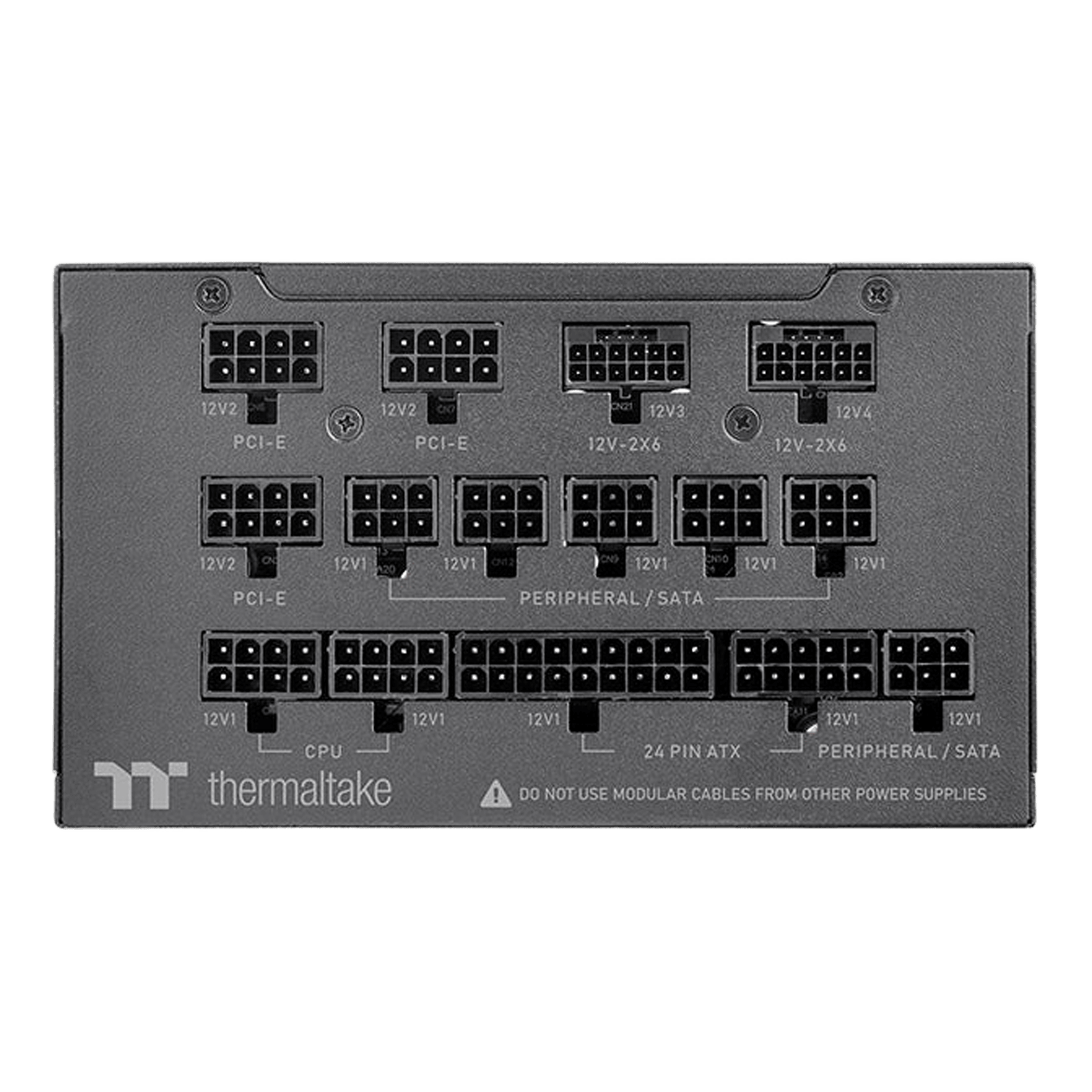

Toughpower TF3 1300W is 80 PLUS Titanium certified and compatible with ATX 3.1 specifications. Designed with two native 12V-2x6 modular interface and bundled with two PCIe 12+4pin cables.
- 80 PLUS Titanium certified
- ATX 3.1 & PCIe 5.1 ready
- Deliver up to 600W for PCIe 5.1 graphics cards.
- Physical overclocking mode switch

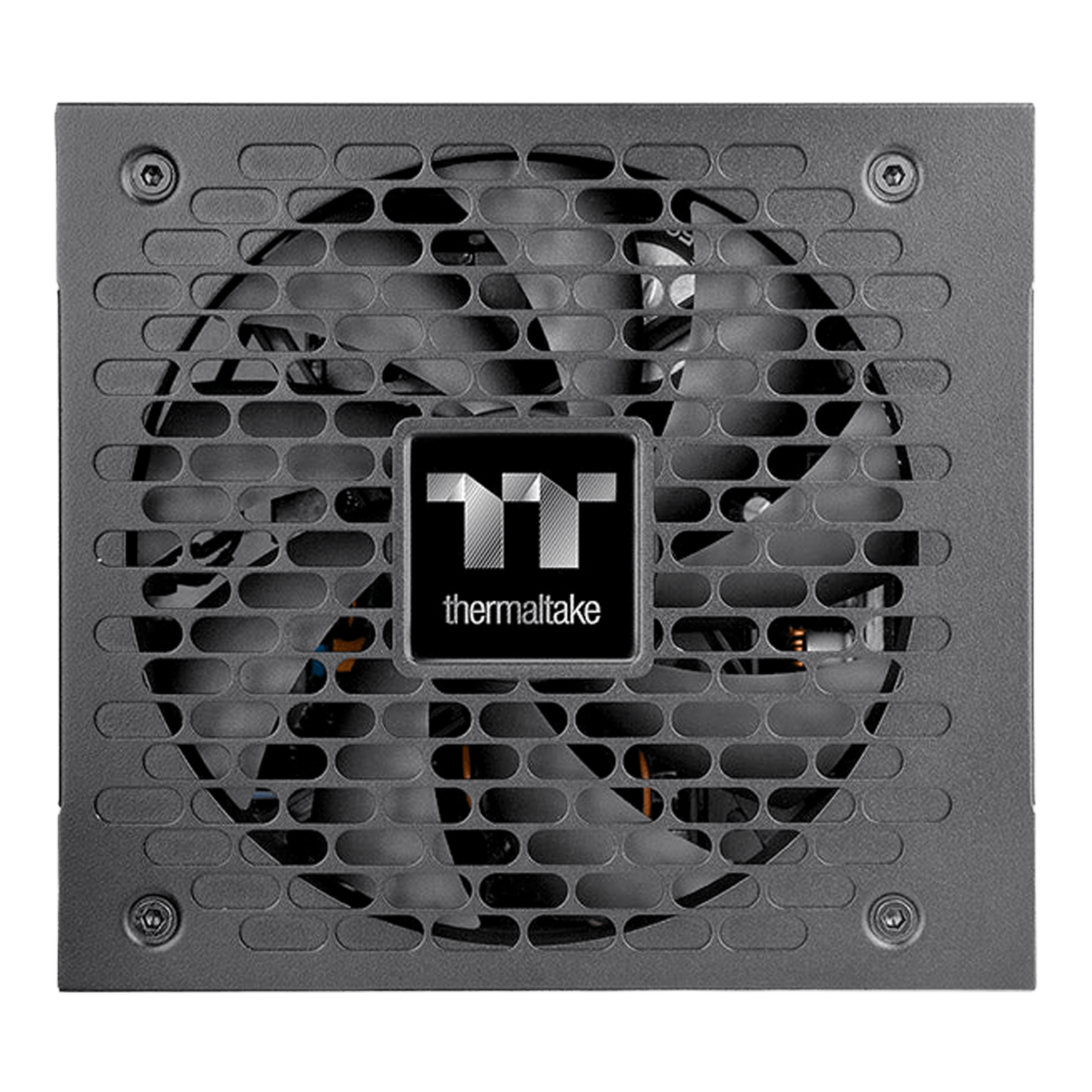

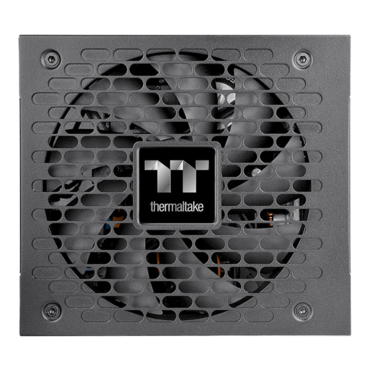

- Ultra quiet Thermaltake customized cooling fan
- 100% Japanese electrolytic capacitors
| P/N | PS-TPD-1300FNFATU-1 |
| Model | TPD-1300AH3FLT |
| Watts | 1300W |
| Max Output Capacity | 1300W |
| Dimensions | 150mm(W)x86mm(H)x165mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 20 - 8A |
| Input Frequency Range | 50 - 60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperture | +5°C to +50°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperture | -40°C to +55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 14cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Titanium at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/ cTUVus/BSMI/CCC/BIS/S-mark/EAC |
| PCI-E 6+2PIN | 5 |
| PCI-E 12+4PIN | 2(600W) |
| Protection | OCP/OVP/UVP/OPP/OTP/SCP |
