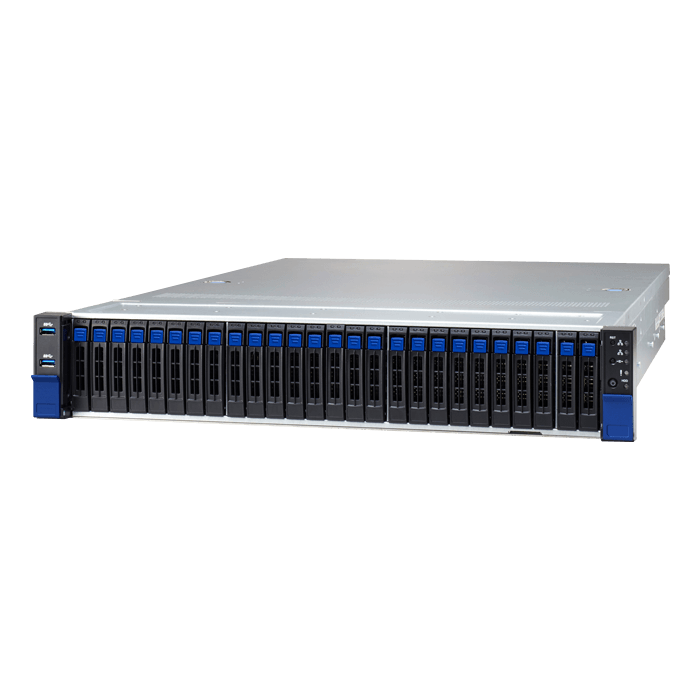

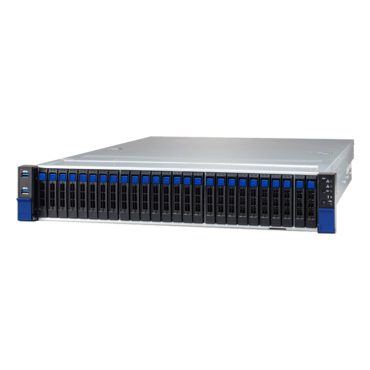

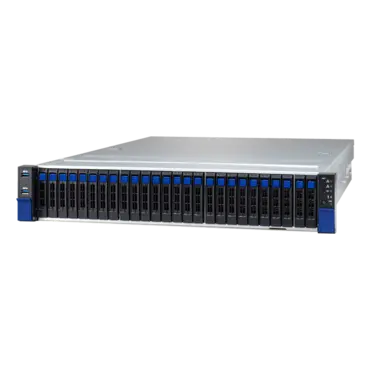

Transport HX TS75A-B8252 (B8252T75AV26HR-2T), 2U, 26x SAS/SATA, 2x M.2, 32x DDR4, 2x 10GbLAN, 1600W Rdt PSU
Quantity:
- SKU: 13812059
- Manufacturer: TYAN
- MPN: B8252T75AV26HR-2T
- Availability: CONTACT US
Starting At
$3,786.05
- 32 DIMM slots support up to 8TB RAM
- 26 2.5" SATA tool-lessdrive bays
- PCIe Gen.4 x16 OCP v3.0LAN mezzanine slot
- 4 PCIe Gen 4.0 x16 and 1 PCIe Gen x8 slots
- AST2500 BMC with Redfish support
| System | Form Factor | 2U Rackmount | |
| Chassis Model | TS75A | ||
|
Chassis Dimension (D x W x H) |

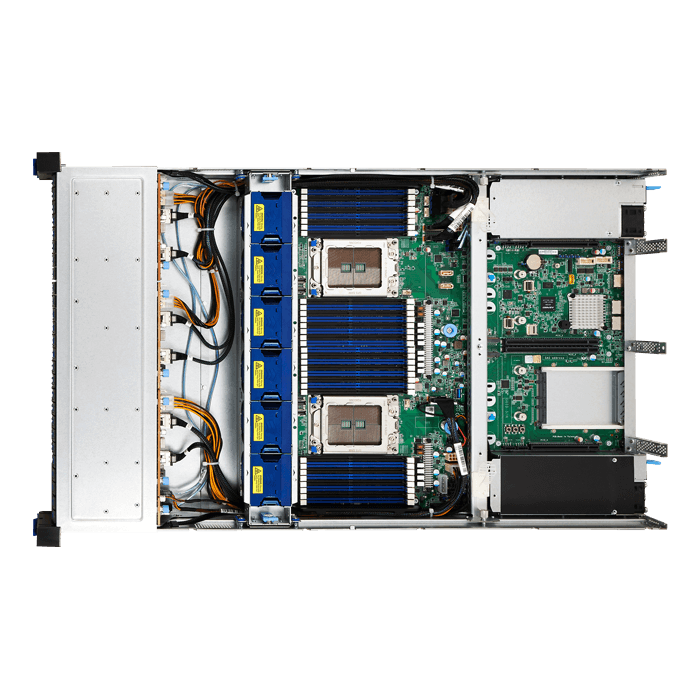

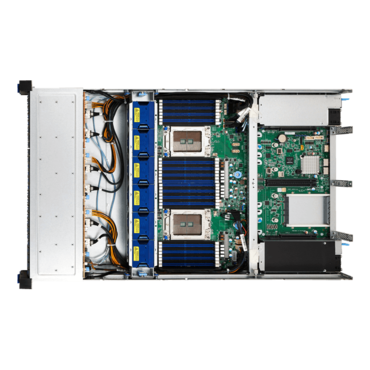

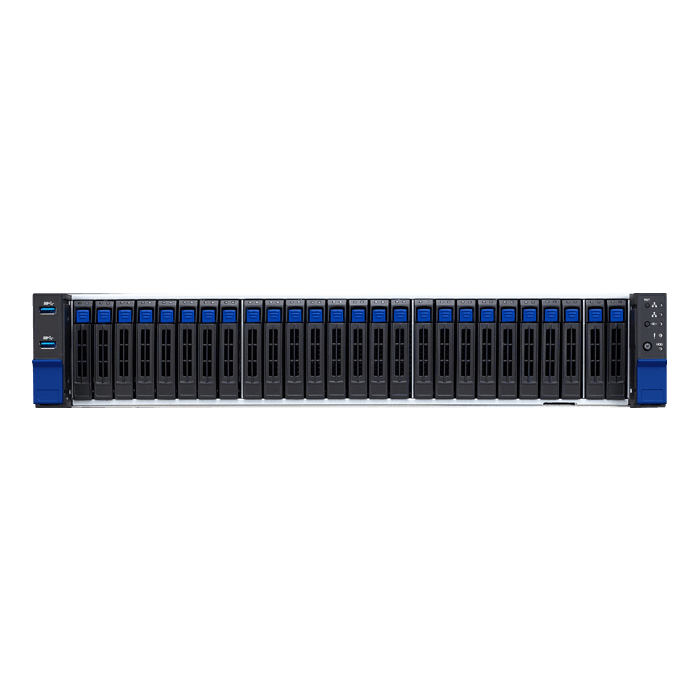

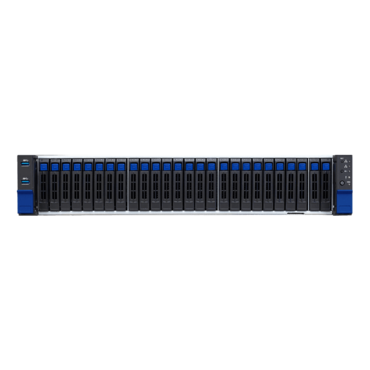

29.56" x 17.26" x 3.43" (750.8 x 438.4 x 87mm) | ||
| Motherboard Name | S8252GM2NE-2T | ||
| Motherboard Notification | # The motherboard not sold separately | ||
| Gross Weight | 30 kg (66 lbs) | ||
| Net weight | 19 kg (42 lbs) | ||
| Front Panel | Buttons | (1) RST / (1) ID / (1) PWR w/ LED | |
| LEDs | (1) HDD / (2) LAN / (1) ID / (1) BMC event | ||
| I/O Ports | (2) USB 3.1 Gen1 ports | ||
| External Drive Bay | Q'ty / Type | (26) 2.5" Hot-swap SSD/HDD | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s | ||
| Supported HDD Interface | (26) SATA 6Gb/s | ||
| Notification | The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. | ||
| System Cooling Configuration | FAN | (6) 6cm fans | |
| Power Supply | Type | CRPS | |
| Input Range | AC 100-127V/12A / AC 200-240V/9.48A | ||
| Frequency | 50-60 Hz | ||
| Output Watts | 1,600 Watts | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Processor | Q'ty / Socket Type | (2) AMD Socket SP3 | |
| Supported CPU Series | (2) AMD EPYC™ 7002/7003 Series Processors | ||
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 240W | ||
| #Notification | 280W CPUs follow Tyan AVL | ||
| Memory | Supported DIMM Qty | (16)+(16) DIMM slots | |
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | ||
| Capacity | Up to 8192GB RDIMM | ||
| Memory channel | 8 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (2) PCI-E Gen4 x16 slots (FH / 10.5"L) / (1) PCI-E Gen4 x8 slot (FH / HL) / (2) PCI-E Gen4 x16 (HH, HL) slots | |
|
Pre-installed TYAN Riser Card (PCI-E Gen4) |
(1) M8252T75-L24-1F riser card for (1) FH/10.5”L PCI-E Gen4 x16 slot (left) / (1) M8252T75-R24-2F riser card for (1) FH/10.5”L PCI-E Gen4 x16 + (1) FH/HL PCI-E Gen4 x8 slots (right) / (1) M8252T75-L16-1L riser card for (1) HH/HL PCI-E Gen4 x16 slot (left) / (1) M8252T75-R16-1L riser card for (1) HH/HL PCI-E Gen4 x16 slot (right) | ||
| Others | (1) PCI-E Gen4 x16 OCP 3.0 slot | ||
|
Physical Dimension Abbreviation |
FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) | ||
| LAN | Q'ty / Port | (2) 10GbE ports, (1) GbE port dedicated for IPMI | |
| Controller | Intel X550-AT2 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (4) SFF-8654 connectors for (24) front SATA |
| Controller | Direct from AMD EPYC CPU | ||
| Speed | 6Gb/s | ||
| RAID | N/A | ||
|
Additional SATA |

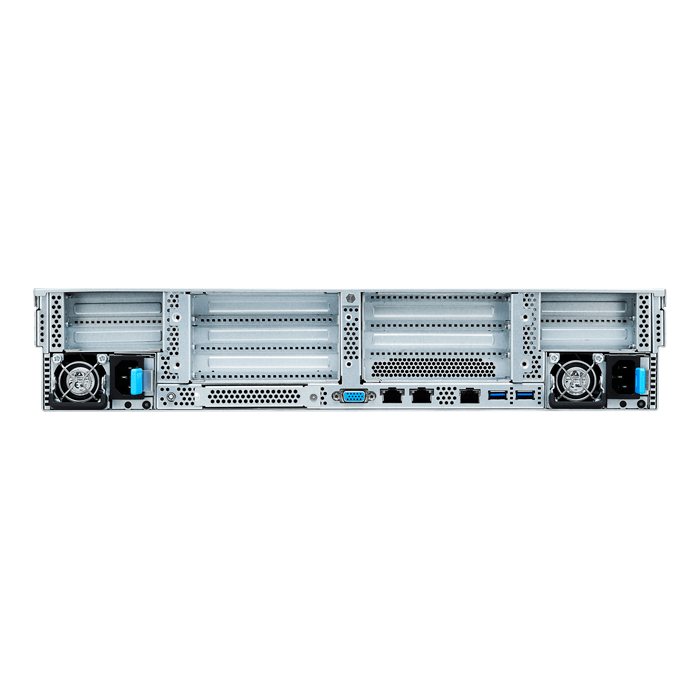

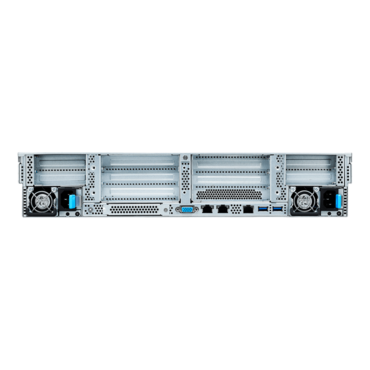

Connector | (2) SATA | |
| Controller | Marvell 9235 | ||
| Speed | 6Gb/s | ||
| RAID | N/A | ||
| NVMe | Connector (M.2) | (2) 22110/2280 (by PCI-E Gen4 interface) | |
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| I/O Ports | USB | (2) USB3.1 Gen1 ports (@ front) / (2) USB3.1 Gen1 ports (@ rear) | |
| COM | (2) headers (COM1, COM2) | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) 10GbE ports, (1) GbE dedicated for IPMI | ||
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI sleeping states S0,S1,S5 / FAN speed control automatic / ACPI 6.0 | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (DoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| C-Tick | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) TS75A-B8252 Barebone | |
| Manual | (1) Quick Installation Guide |
