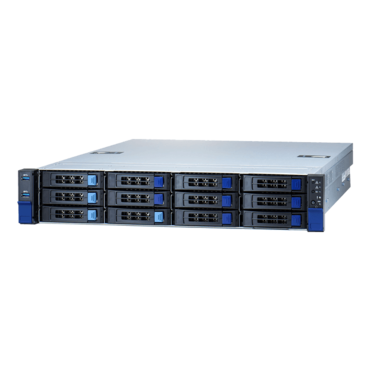

Transport SX TS65-B8253 (B8253T65V10E4HR), 2U, 12x SATA/SAS + 2x SATA, 4x NVMe, 16x DDR4, 2x 1GbLAN, 1200W Rdt PSU
Quantity:
- SKU: 13800329
- Manufacturer: TYAN
- MPN: B8253T65V10E4HR
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$2,501.84
- (16) DIMM slots support up to 4TB RAM
- (12) 3.5" SATA hot-swap, tool-lessdrive bays @ front (w/ (4) NVMe ports)
- (2) 2.5" SATA hot-swap, tool-less drive bays @ rear
- (2) 1000Base-T + (1) 1000Base-T dedicated IPMI ports
- (7) PCIe Gen.4slots
- AST2500 BMC with Redfish support

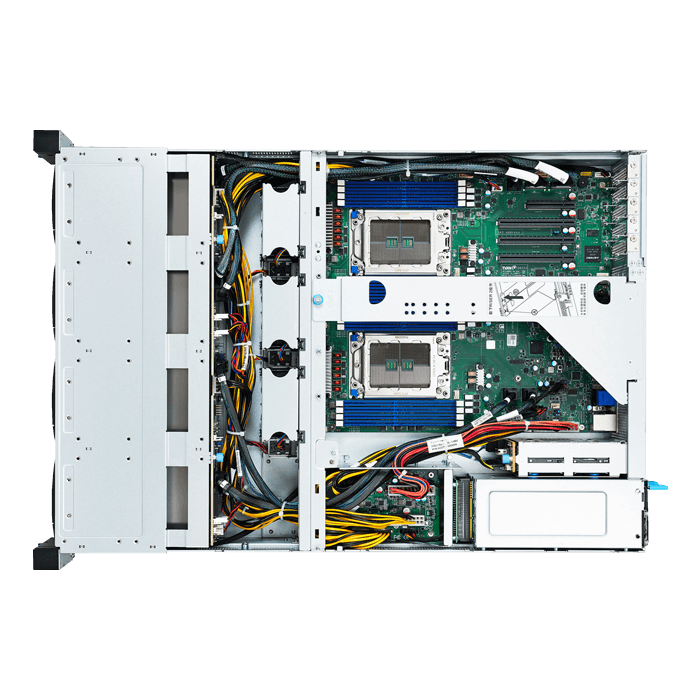

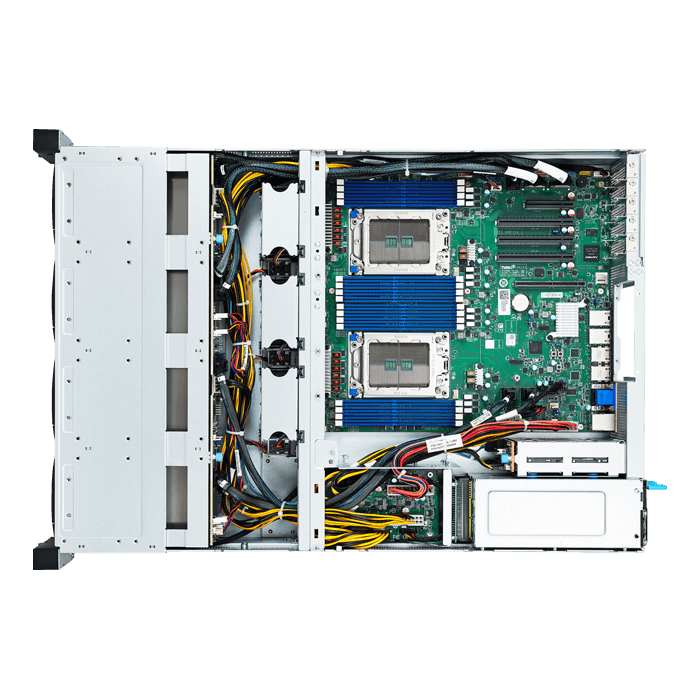

| System | Form Factor | 2U Rackmount | |
| Chassis Model | TS65 | ||
| Dimension (D x W x H) | 25.59" x 17.32" x 3.43" (650 x 440 x 87mm) | ||
| Motherboard Name | S8253GM2NE | ||
| Gross Weight | 30 kg (66 lbs) | ||
| Net weight | 19 kg (42 lbs) | ||

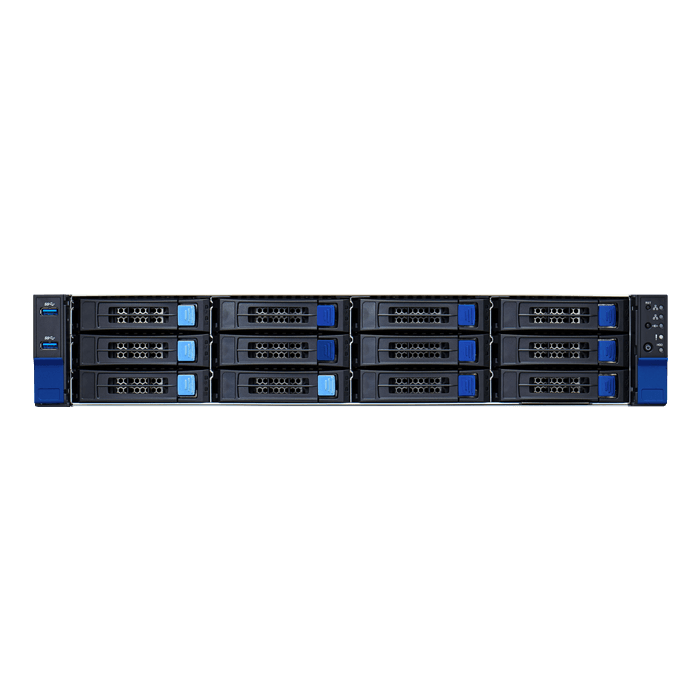

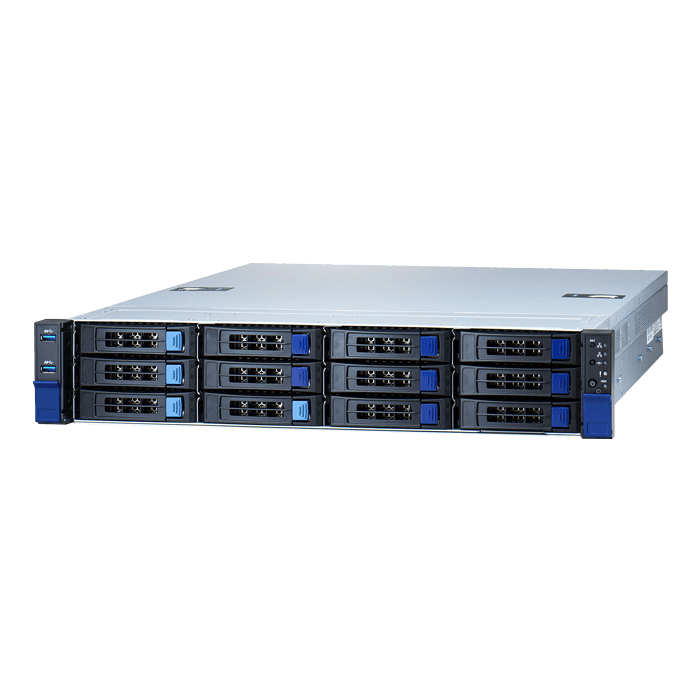

| Front Panel | Buttons | (1) RST / (1) PWR w/ LED / (2) UID | |
| LEDs | (2) LAN / (1) UID / (1) System Event | ||
| I/O Ports | (2) USB 3.1 Gen1 ports | ||
| External Drive Bay | Q'ty / Type | (12) 3.5/2.5" Hot-Swap SSD/HDD (@ front) + (2) 2.5" Hot-Swap SSD/HDD (@ rear) | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s /NVMe | ||
| Supported HDD Interface | (12) SATA 6Gb/s with (4) NVMe ports (@ front) + (2) SATA 6Gb/s (@ rear) | ||
| Notification | The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. | ||
| System Cooling Configuration | FAN | (3) 8cm fans | |
| Power Supply | Type | CRPS | |
| Input Range | AC 200-240V/7A / AC 100-127V/13A | ||
| Frequency | 50-60 Hz | ||
| Output Watts | 1,200 Watts | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Processor | Q'ty / Socket Type | (2) AMD Socket SP3 | |
| Supported CPU Series | (2) AMD EPYC™ 7002/7003 Series Processors | ||
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 240W | ||
| #Notification | 280W CPUs follow Tyan AVL | ||
| Memory | Supported DIMM Qty | (16) DIMM slots | |
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | ||
| Capacity | Up to 1,024GB RDIMM / 4,096GB LRDIMM 3DS | ||
| Memory channel | 8 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (3) PCI-E Gen4 x16 slots (Low Profile) / (1) PCI-E Gen4 x16 slot (FH/HL) / (1) PCI-E Gen4 x8 slot (Low Profile) / (2) PCI-E Gen4 x8 slot (FH / HL) | |
|
Pre-installed TYAN Riser Card (PCI-E Gen4) |
(1) M8253T65-R32-3F riser card for (2) FH/HL PCI-E Gen4 x8 slot and (1) FH/HL PCI-E Gen4 x16 slot (right) | ||
|
Physical Dimension Abbreviation |

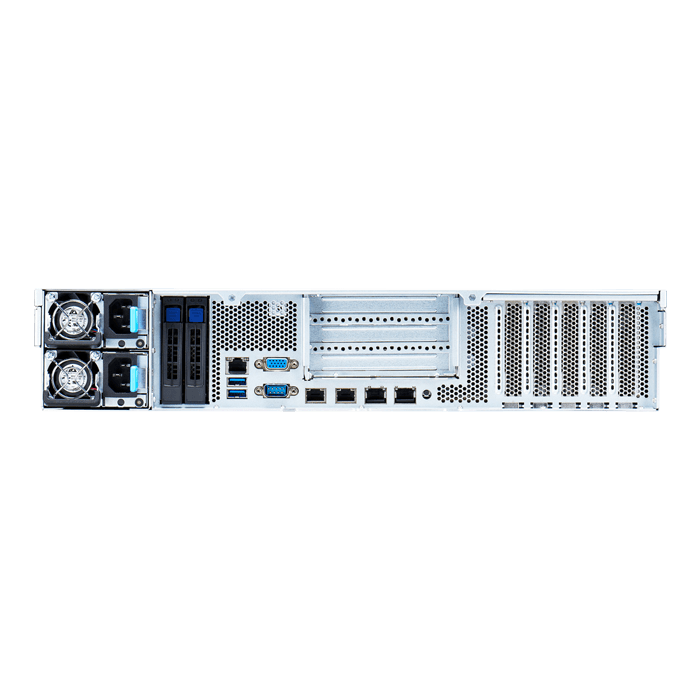

FH/HL (Full-height / Half-length): 4.4" x 6.6" (111.2 x 167.7mm) | ||
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Controller | Intel I210 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (3) Mini-SAS HD (12 ports) / (2) 7-pin White SATA 6G ports w/ Power conn. support SATA-DOM, / (2) 7-pin SATA 6G ports |
| Controller | Direct from AMD EPYC CPU | ||
| Speed | 6Gb/s | ||
| RAID | N/A | ||
| NVMe | Connector (Slim SAS) | (2) SFF-8654 for (4) NVMe ports | |
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| I/O Ports | USB | (2) USB3.1 Gen1 ports (@ rear) / (1) USB3.1 Gen1 port (Type-A) / (1) USB3.1 Gen1 ports (via Cable) | |
| COM | (1) DB-9 port (COM1) | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) GbE ports, (1) dedicated GbE for IPMI | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / ACPI sleeping states S0, S5 / FAN speed control automatic | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) TS65-B8253 Barebone | |
| Manual | (1) Quick Installation Guide |
