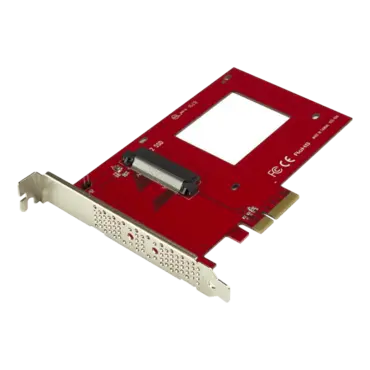

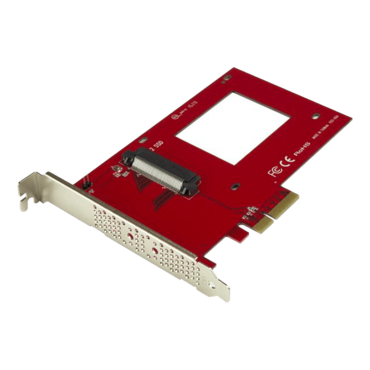

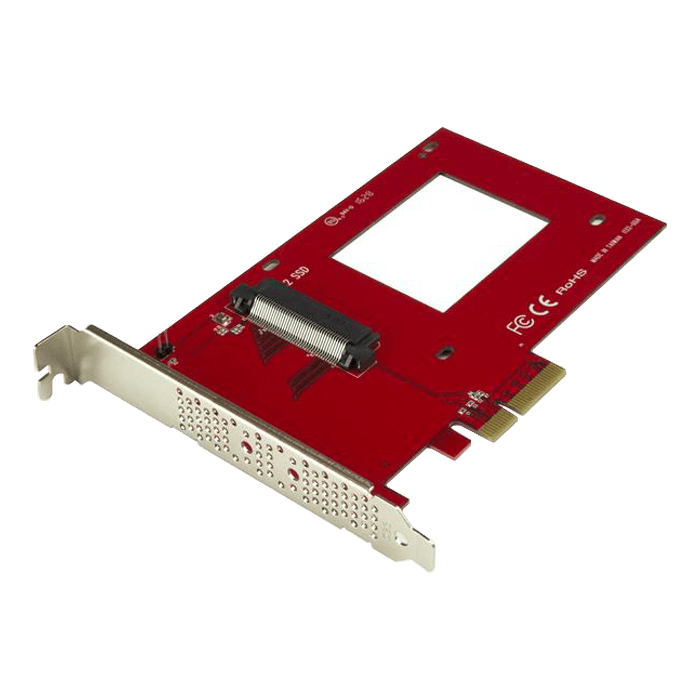

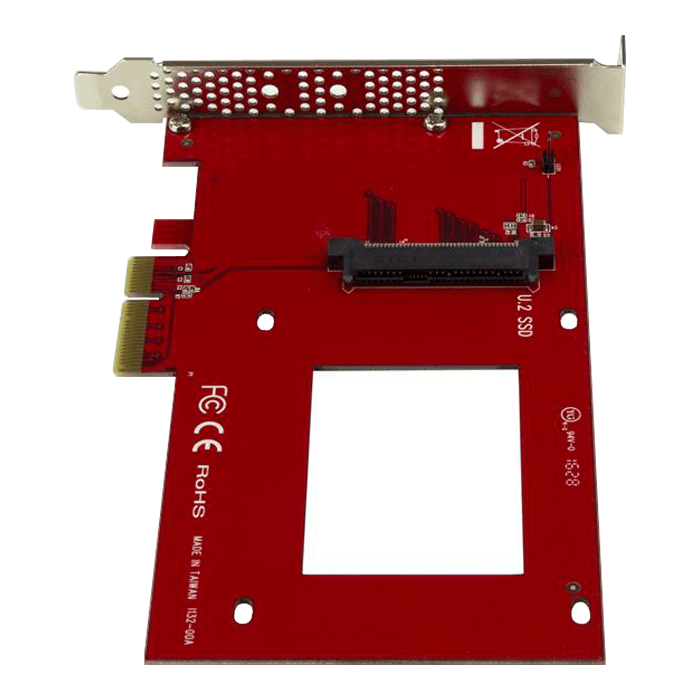

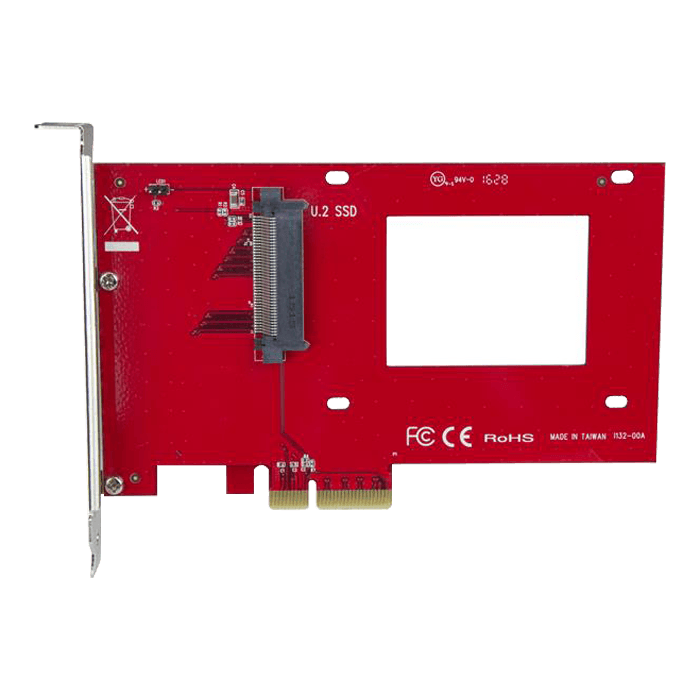

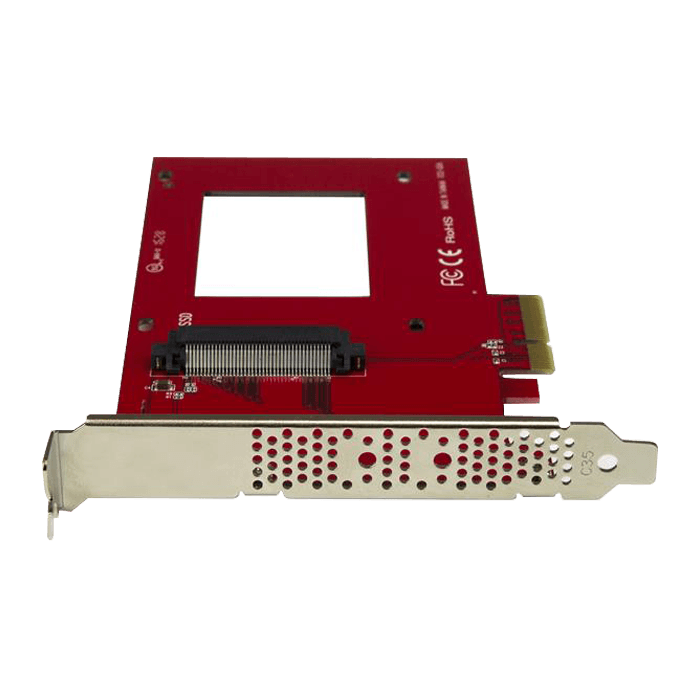

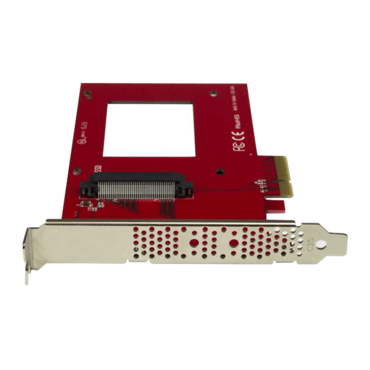

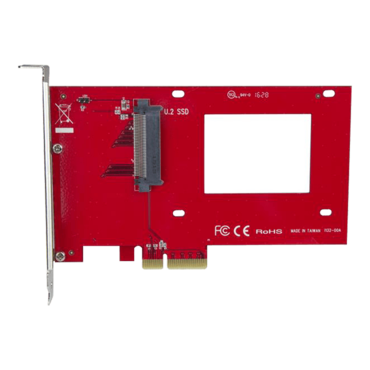

U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD - SFF-8639 - x4 PCI Express 3.0

SKU: 11351293

Manufacturer: STARTECH.COM

MPN: PEX4SFF8639

Availability: Available


Price: $38.38
or as low as $1/month
Quantity:

Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.

You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.

Easy to install

The expansion card is equipped with a full-profile bracket and doesn’t require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.

The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0.

The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • Boost system speed and performance by adding a PCIe NVMe U.2 SSD to your PC
  • Simplify system builds with a U.2 to PCIe adapter that mounts your SSD directly to the adapter, with no need for adapter cables
  • PCI Express 3.0 x4 lane host adapter
  • Compatible with x4 PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0
  • OS independent with no drivers required, for a fast, hassle-free setup
WARRANTY INFORMATION
Warranty 2 Years
HARDWARE
Bus Type PCI Express
Compatible Drive Types U.2 (SFF-8639, x4 PCIe, NVMe)
Drive Installation Fixed
Drive Size 2.5in
Fan(s) No
Interface PCI Express
Number of Drives 1
Supported Drive Height(s) 15mm
12.5mm
9.5mm
7mm
5mm
PERFORMANCE
Hot Swap Capability No
CONNECTOR(S)
Drive Connectors 1 - U.2 (SFF-8639, x4 PCIe, NVMe)
Host Connectors 1 - PCI Express x4 Male
SOFTWARE
OS Compatibility OS independent; No software or drivers required
INDICATORS
LED Indicators 1 - Activity Terminal/Header
ENVIRONMENTAL
Humidity 15% ~ 90% RH
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Color Red
Product Height 0.9 in [22 mm]
Product Length 6.5 in [165 mm]
Product Weight 2.3 oz [65 g]
Product Width 4.8 in [122 mm]
PACKAGING INFORMATION
Shipping (Package) Weight 5.7 oz [161 g]
WHAT'S IN THE BOX
Included in Package 1 - drive adapter card
4 - drive-mounting screws
1 - quick-start guide
