U10, 30mm Height, 115W TDP, Copper/Aluminum CPU Cooler

Quantity:
  • SKU: 16160383
  • Manufacturer: DYNATRON
  • MPN: U10
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$33.46
Quantity:

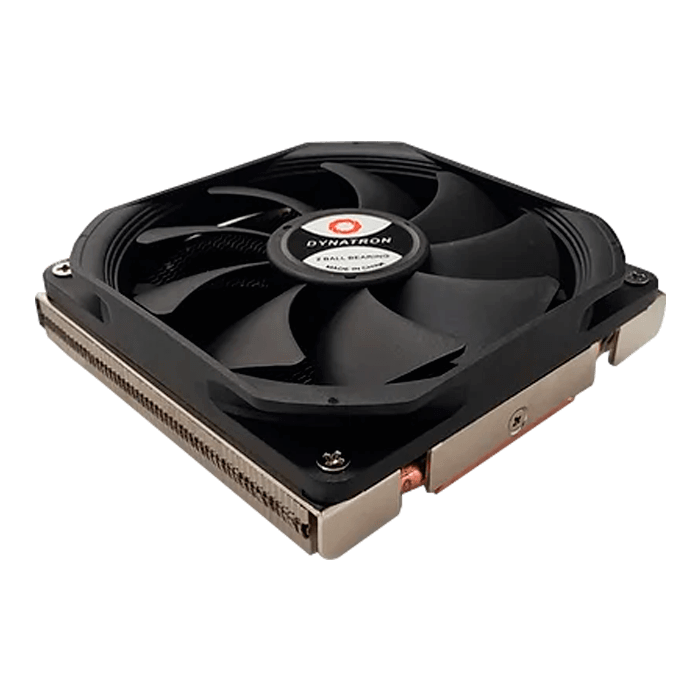

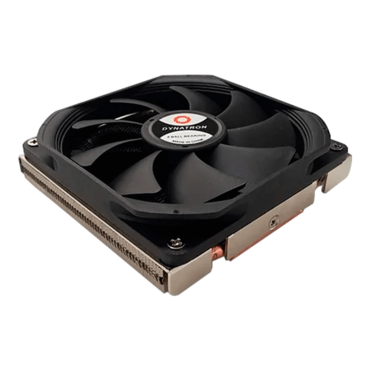

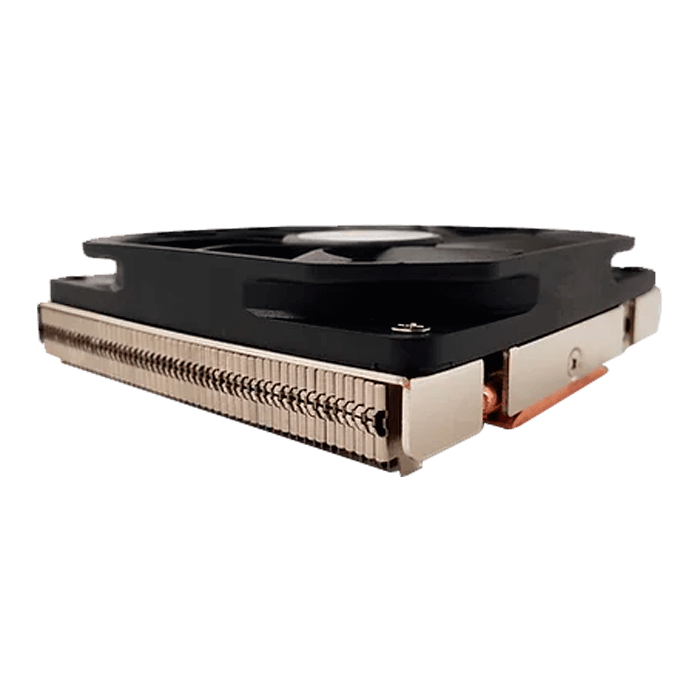

U10, 30mm Height, 115W TDP, Copper/Aluminum CPU Cooler
The Dynatron U10 CPU cooler is designed for U10 ( Muliti-socket) 1.5U & Up
CPU Support Intel/AMD
CPU Socket Intel LGA 1700/1200/115X AMD AM5/AM4
Solution 1.5U & Up
Dimensions 93.5 x 95.0 x 30.0 mm
Weight 348g (Fan + Heatsink)

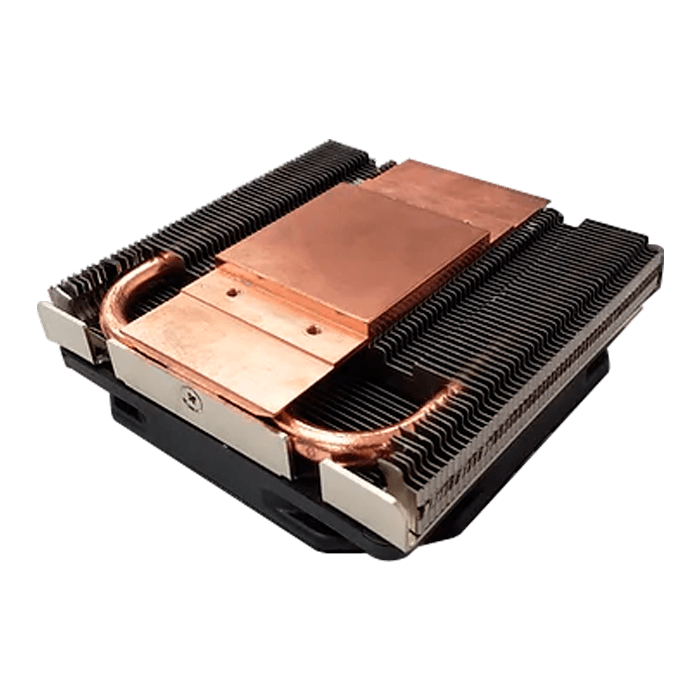

Material Copper Base & Aluminum Fins with Heat Pipe Embedded
Fan Dimension 92.0 x 92.0 x 12.0 mm
Speed At Duty Cycle 0~20%: 800 ± 200 RPM At Duty Cycle 50%: 1900 ± 10% RPM At Duty Cycle 100%: 3200 RPM
Bearing Double Ball
Rated Voltage 12V
Power At Duty Cycle 0~20%: 0.2 W At Duty Cycle 50%: 0.5 W At Duty Cycle 100%: 1.6 W
Air Flow At Duty Cycle 0~20%: 9.88 CFM At Duty Cycle 50%: 21.38 CFM At Duty Cycle 100%: 35.78 CFM
Noise Level At Duty Cycle 0~20%: 22.3 dBA At Duty Cycle 50%: 26.1 dBA At Duty Cycle 100%: 36.2 dBA
Air Pressure At Duty Cycle 0~20%: 0.28 mm-H2O At Duty Cycle 50%: 1.22 mm-H2O At Duty Cycle 100%: 3.21 mm-H2O
Lead Wire Pin Out Pin#1- Black(-) Pin#2- Black (+) Pin#3- Black (Tachometer/ Signal Output) Pin#4- Black (PWM)
Thermal Grease Shin-Etsu 7762 Pre-Printed
