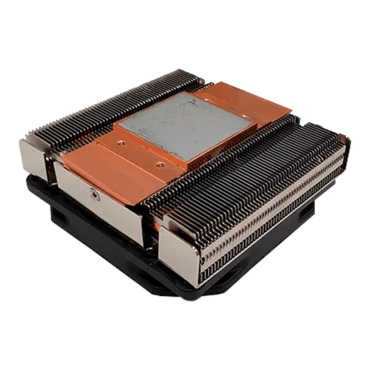

U8, 35.2mm Height, 130W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 16101965
- Manufacturer: DYNATRON
- MPN: U8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$34.61
U8, 35.2mm Height, 130W TDP, Copper/Aluminum CPU Cooler
The Dynatron U8 CPU cooler is designed for U8 ( Muliti-socket) 1.5U & Up
The Dynatron U8 CPU cooler is designed for U8 ( Muliti-socket) 1.5U & Up
| CPU Support | Intel/AMD |
| CPU Socket | Intel LGA 1700/1200/115X AMD AM5/AM4 |
| Solution | 1.5U & Up |
| Dimensions | 93.4 x 95.0 x 35.2 mm |
| Weight | 392g (Fan + Heatsink) |
| Material | Copper Base & Aluminum Fins with Heat Pipe Embedded |
| Fan Dimension | 92.0 x 92.0 x 12.0 mm |
| Speed | At Duty Cycle 0~20%: 800 ± 200 RPM At Duty Cycle 50%: 1900 ± 10% RPM At Duty Cycle 100%: 3200 RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.2 W At Duty Cycle 50%: 0.5 W At Duty Cycle 100%: 1.6 W |
| Air Flow | At Duty Cycle 0~20%: 9.88 CFM At Duty Cycle 50%: 21.38 CFM At Duty Cycle 100%: 35.78 CFM |
| Noise Level | At Duty Cycle 0~20%: 22.3 dBA At Duty Cycle 50%: 26.1 dBA At Duty Cycle 100%: 36.2 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.28 mm-H2O At Duty Cycle 50%: 1.22 mm-H2O At Duty Cycle 100%: 3.21 mm-H2O |
| Lead Wire Pin Out | Pin#1- Black(-) Pin#2- Black (+) Pin#3- Black (Tachometer/ Signal Output) Pin#4- Black (PWM) |
| Thermal Grease | Shin-Etsu 7762 Pre-Printed |
