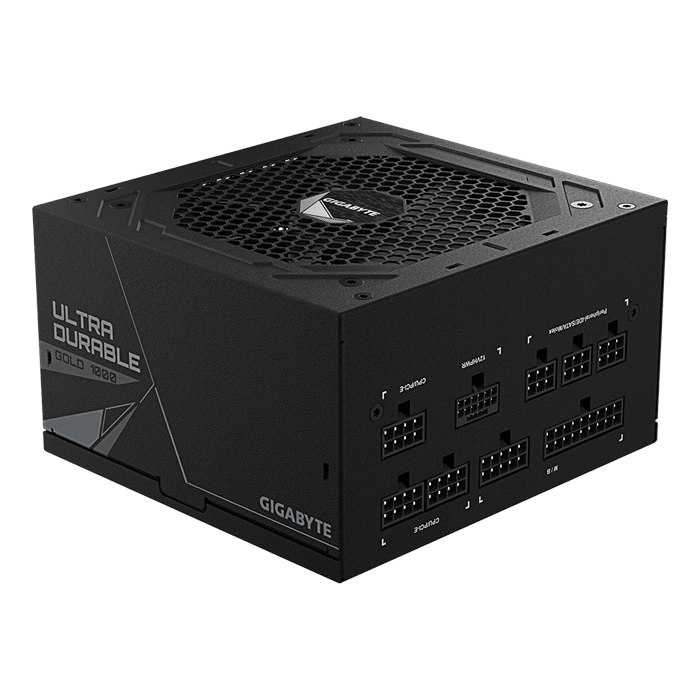

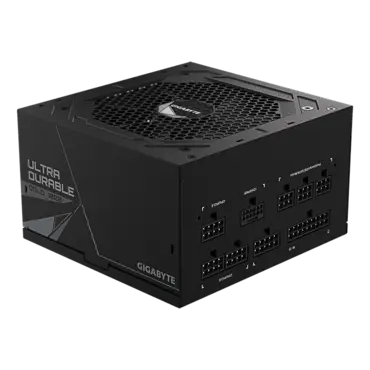

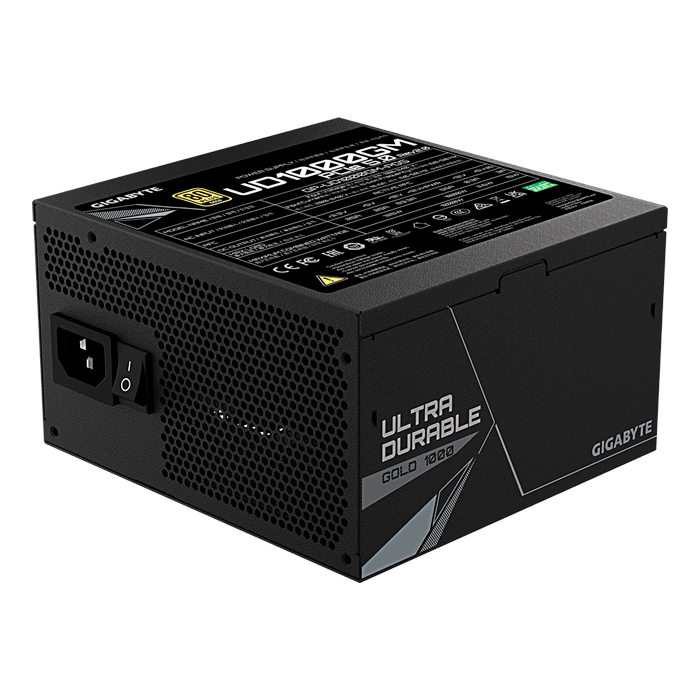

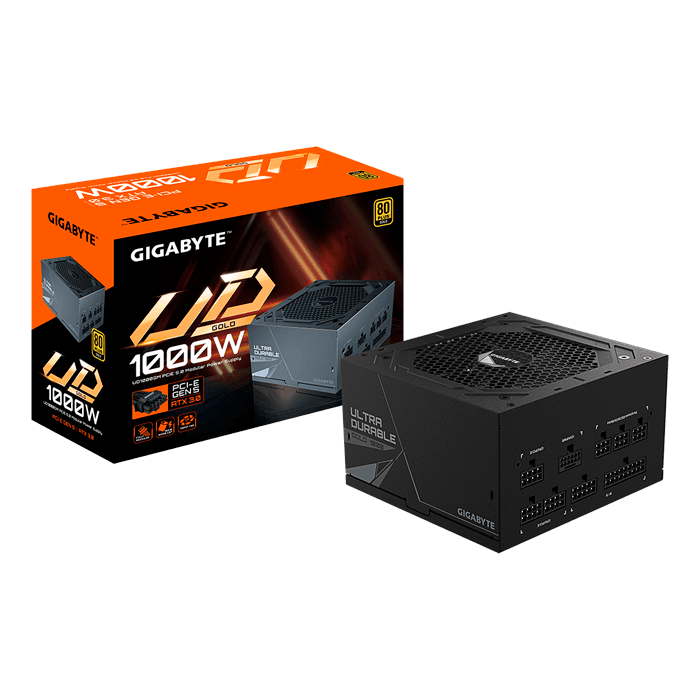

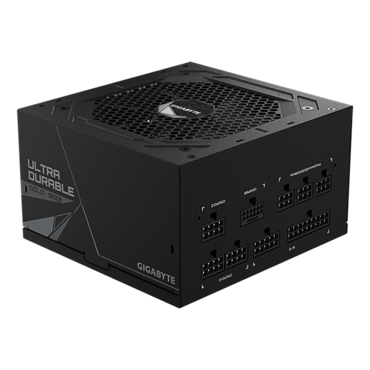

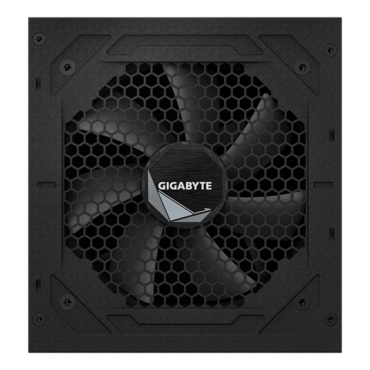

UD1000GM PG5 (rev. 2.0), 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 16027495
  • Manufacturer: GIGABYTE
  • MPN: GP-UD1000GM PG5 REV2.0
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$163.63
Quantity:
UD1000GM PG5 (rev. 2.0), 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply

GIGABYTE UD1000GM PG5 (rev. 2.0) (GP-UD1000GM PG5 REV2.0). The UD1000GM PG5 can sustain up to 3x GPU power excursion and 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

  • Ultra Durable
    •  Main Japanese capacitors
    •  Enhanced thermal solution
    •  120mm smart hydraulic bearing (HYB) fan
    •  OVP/OPP/SCP/UVP/OCP/OTP protection
  • Support PCIe Gen 5.0 graphics cards
  • Support Intel ATX 3.0 standard
  • 80 PLUS Gold certified
  • Fully modular design
  • Compact design
  • 10 years warranty (Adjusted according to different regions

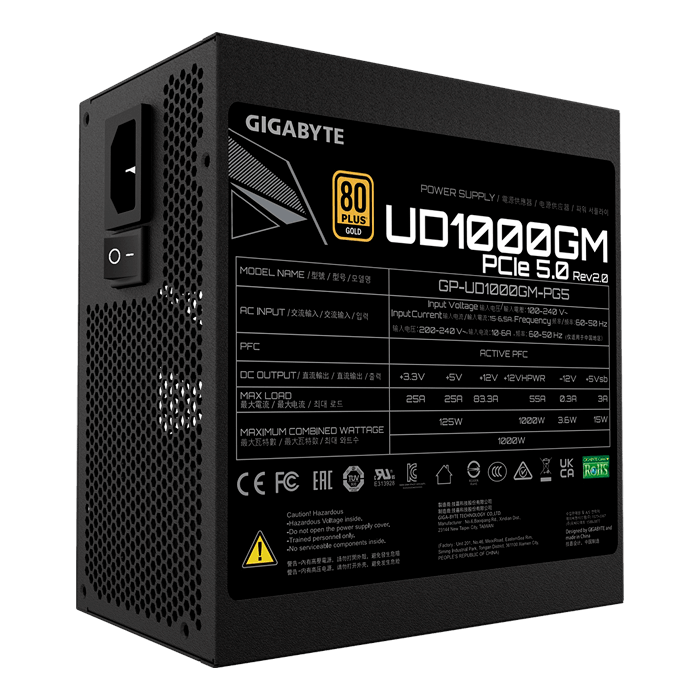

Model UD1000GM PG5 (rev. 2.0)
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86 mm

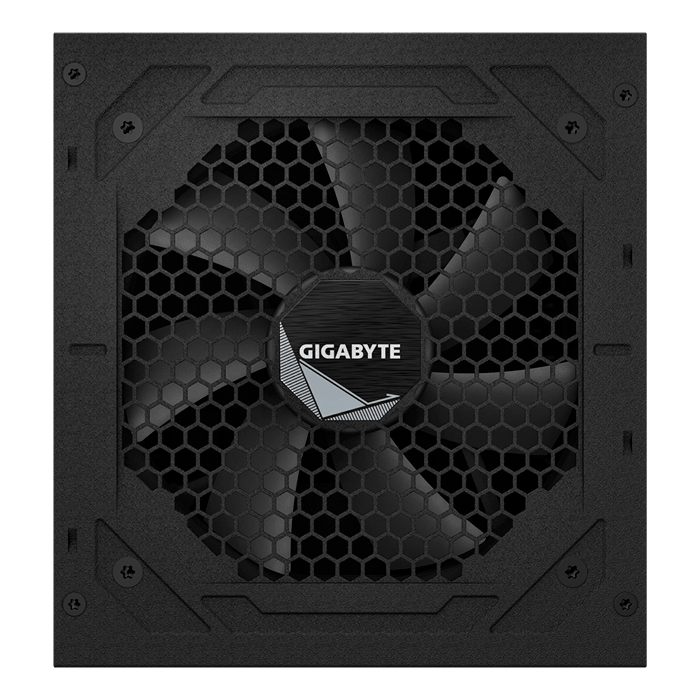

Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black

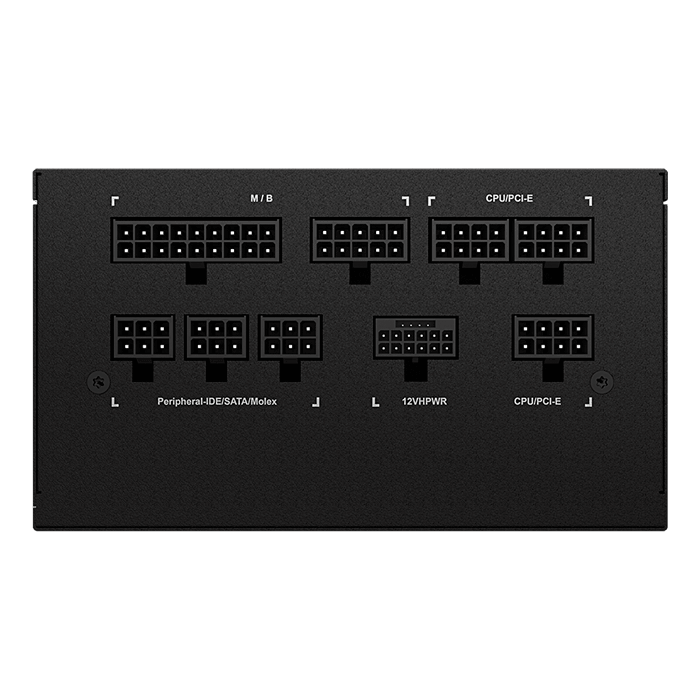

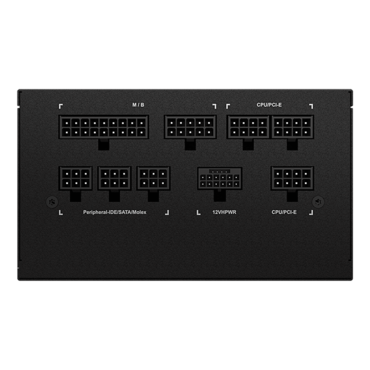

Connectors ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
