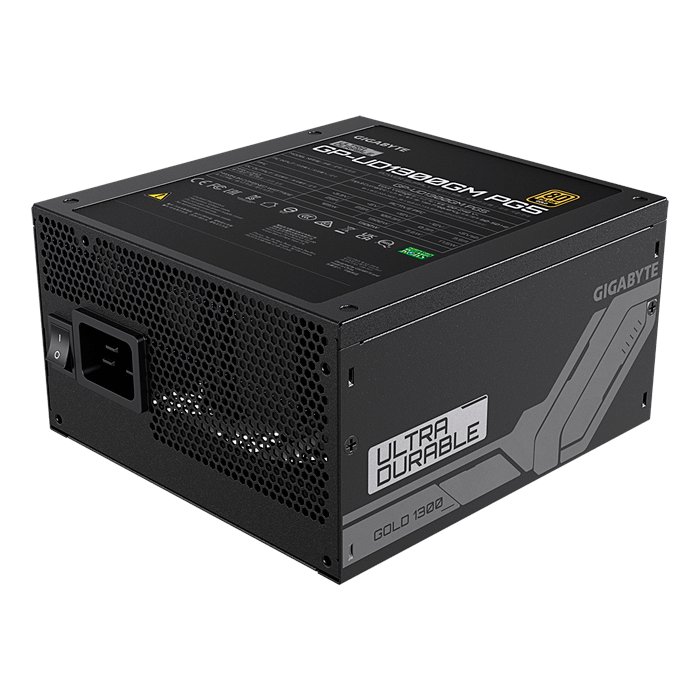

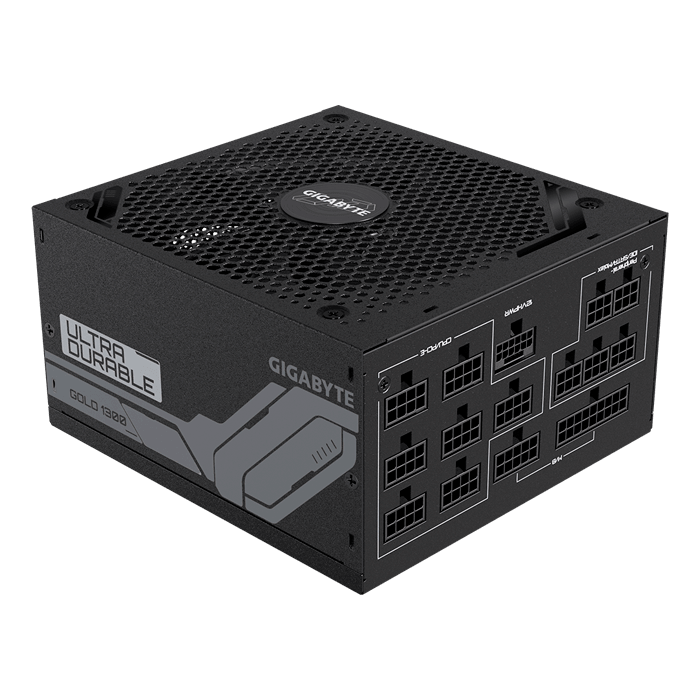

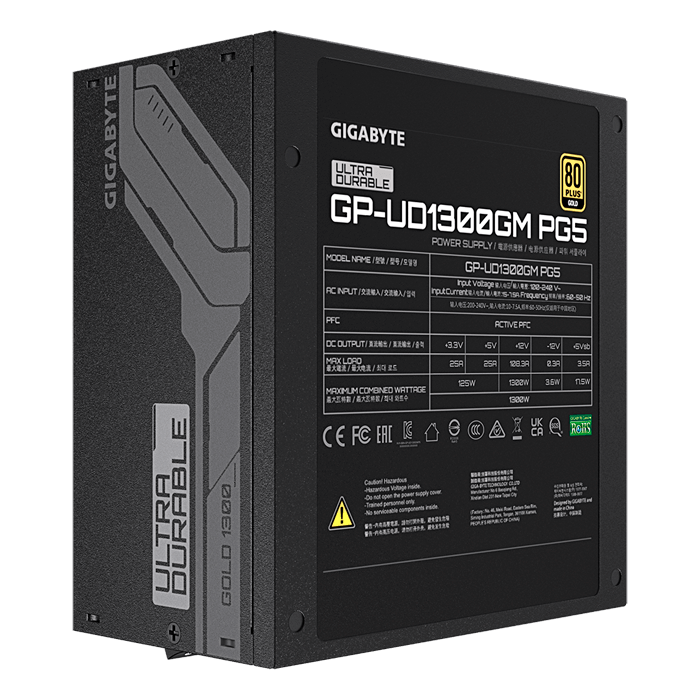

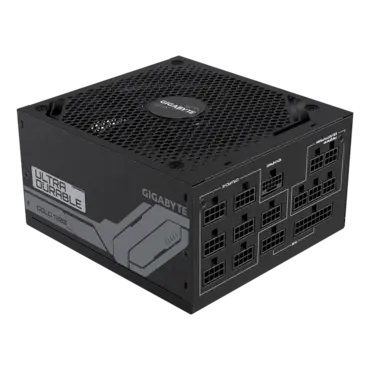

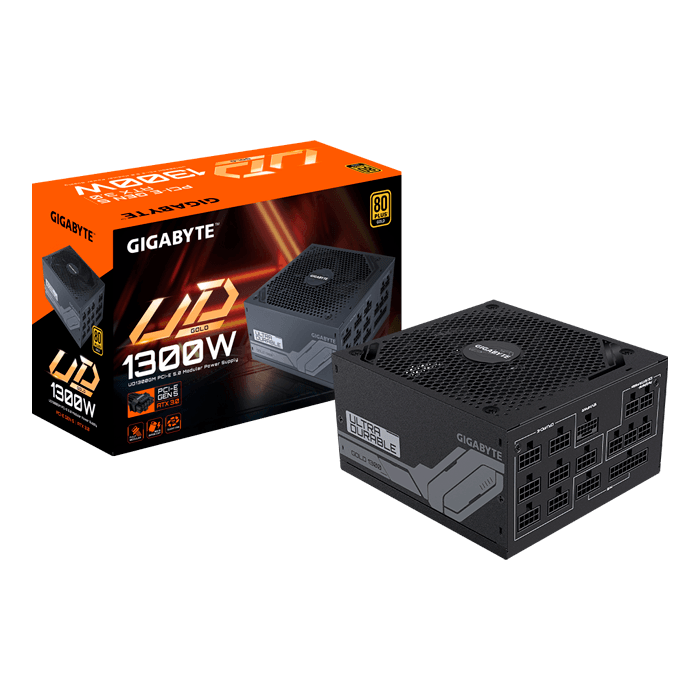

UD1300GM PG5, 80 PLUS Gold 1300W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16799480
- Manufacturer: GIGABYTE
- MPN: GP-UD1300GM PG5
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$257.64
UD1300GM PG5, 80 PLUS Gold 1300W, Fully Modular, ATX Power Supply
GIGABYTE UD1300GM PG5 (GP-UD1300GM PG5). Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
-
Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 140mm double ball bearing fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics card
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified
- Fully modular design
- Compact size
- 10 years warranty (Adjusted according to different regions)
| Model | GP-UD1300GM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1300W |
| Dimension | 150 x 160 x 86 mm |

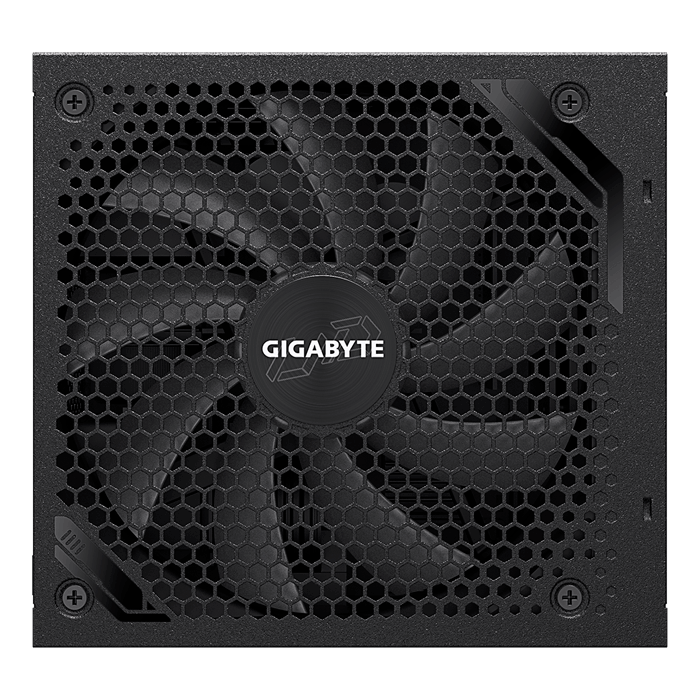

| Fan Type | 140mm double ball bearing fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |

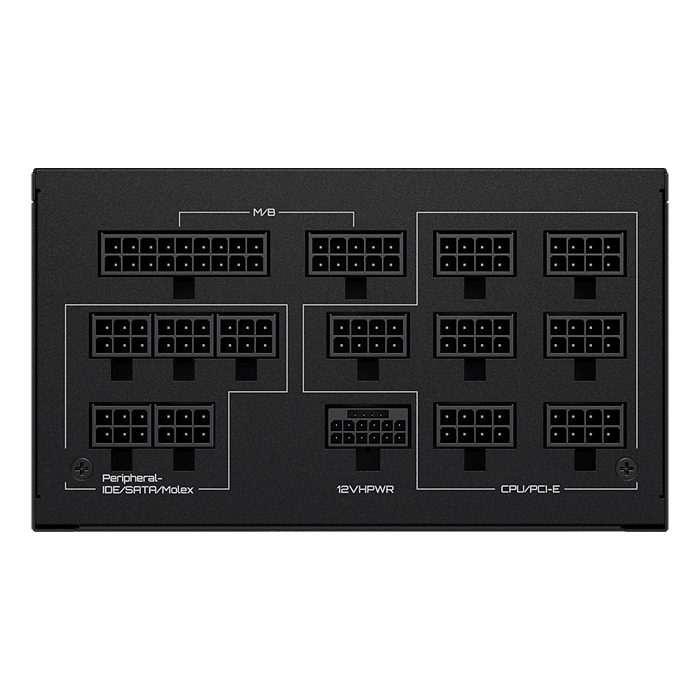

| Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
