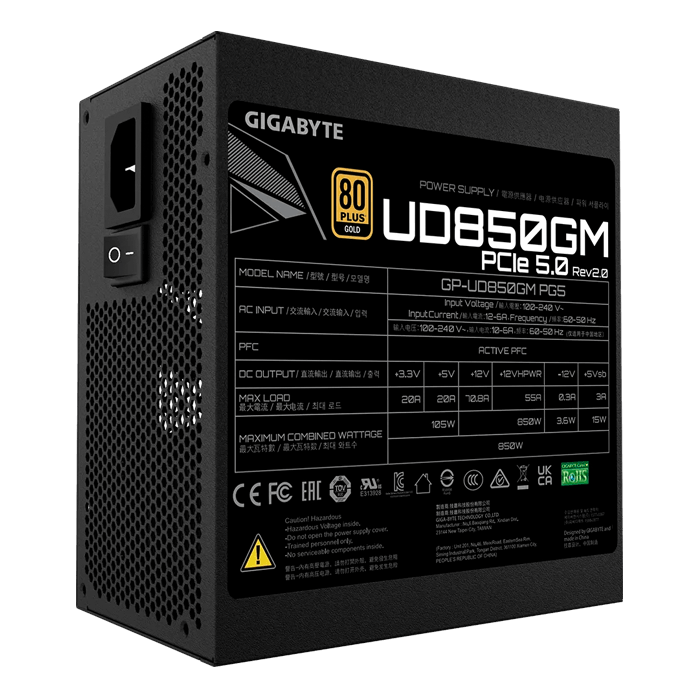

UD850GM PG5 (rev. 2.0), 80 PLUS Gold 850W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 15874466
  • Manufacturer: GIGABYTE
  • MPN: GP-UD850GM PG5 REV2.0
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$142.27
Quantity:

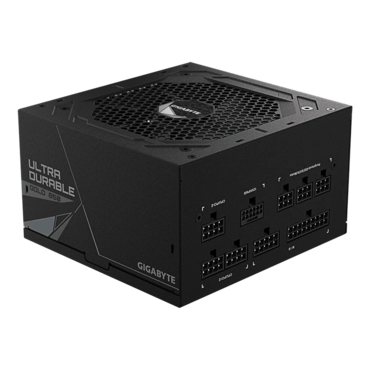

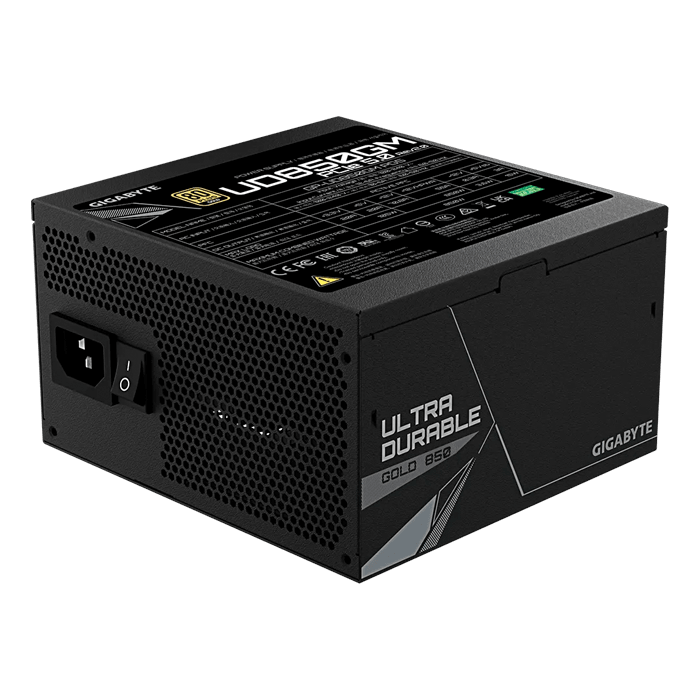

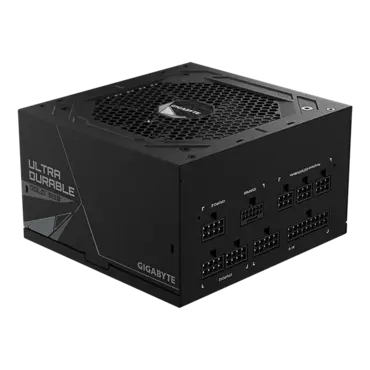

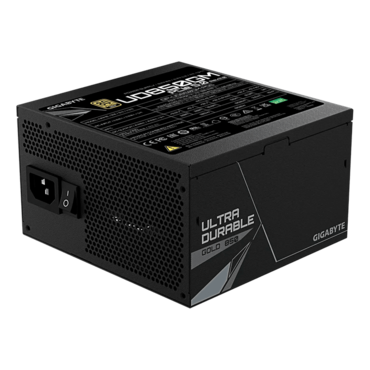

UD850GM PG5 (rev. 2.0), 80 PLUS Gold 850W, Fully Modular, ATX Power Supply

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

  • Ultra Durable
    •  Main Japanese capacitors
    •  Enhanced thermal solution

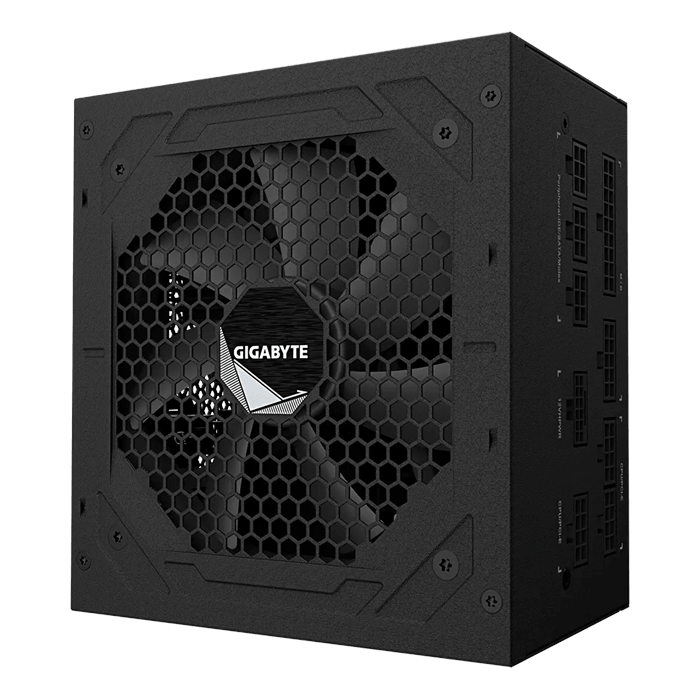

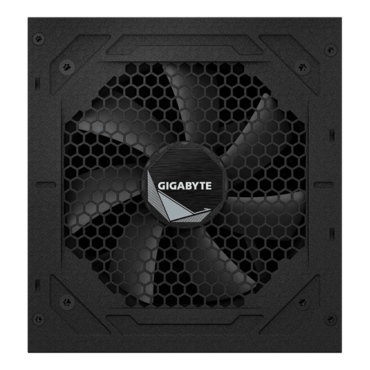

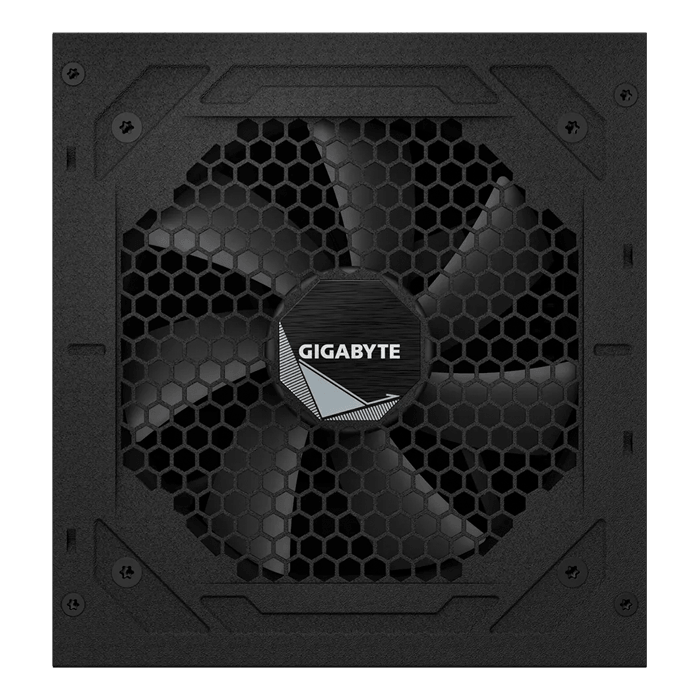

    •  120mm smart hydraulic bearing (HYB) fan
    •  OVP/OPP/SCP/UVP/OCP/OTP protection
  • Support PCle Gen 5.0 graphics cards
  • Support Intel ATX 3.0 standard
  • 80 PLUS Gold certified
  • Fully modular design
  • Compact design
  • 5 years warranty (Adjusted according to different regions)
Model GP-UD850GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 12-6A
Input Frequency 60-50 Hz
Output Capacity 850W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black

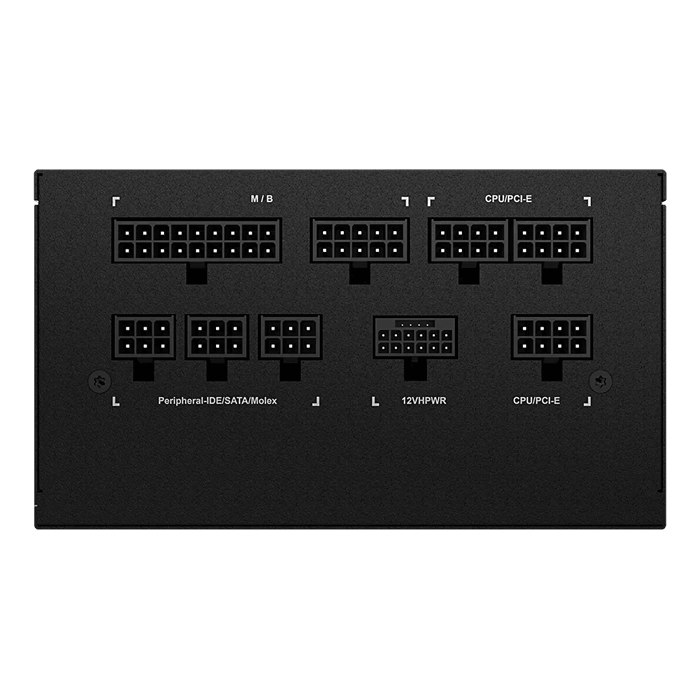

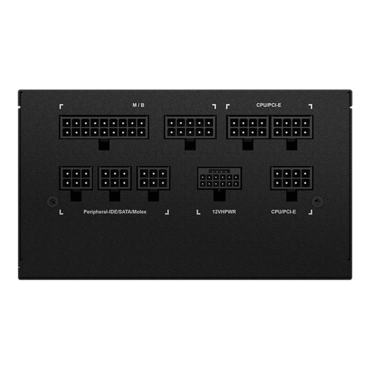

Connectors ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
