UNIMUX™ High Density HD USB KVM Switch, 16-ports

SKU: 4250640


MPN: unimux-usbv-16hd

Availability: Unknown

Price: $1,054.20
or as low as $34/month

16 port High Density VGA USB KVM Switch Box control touchscreen 16x1

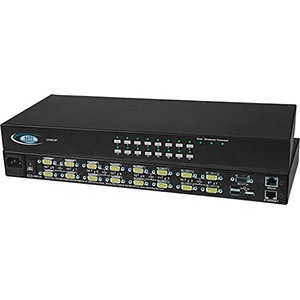

16-Port High Density VGA USB KVM Switch
  • Control 16 USB computers with one USB keyboard and mouse
  • Supports resolutions to 2048x1536
  • 1RU rackmount
  • Specifications
  • Overview:

    The UNIMUX™ High Density VGA USB KVM Switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.


    • The High Density Switch saves rack space
      • 4-, 8- and 16-port switches are 1RU in height.
      • 32-port switch is 2RU in height.
      • Rackmount kit included.
    • Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously.
    • Compatible with USB computers (PC, SUN and MAC).
    • Crisp and clear 1920x1200 video resolution.
    • Equipped with OSD, RS232, and Ethernet.
    • High quality steel construction.
    • Cascade UNIMUX switches off a single master switch to control up to 1,024 computers as if from one switch.
    • Flash upgradeable.
    • Cabling runs are simplified with NTI's high density KVM switch cables.
    • Optional support for a USB 2.0 (low/full speed) device, in addition to keyboard and mouse, such as a 3M or Elo USB touch screen monitor, SMART Board™ Interactive Whiteboards, or CAC card reader.
    • Optional extender port for locating a remote user up to 300 feet via CAT5/5e/6 cable.
      • Only one user can be active at a time.
      • Locked out user must wait five seconds after last keystroke or mouse movement from active user.
      • For switches with the additional USB port option, the remote user does not have access to the extra USB device.


    • Female 15-pin HD connectors.
    • Supports USB computers with VGA video.
    • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R.
    • Crisp and clear 1920x1200 resolution.
    • One female 15-pin HD connector.
    • A multiscan VGA monitor is required to display the different video outputs from different platforms.
    • Bandwidth is 150 MHz.
    • Two female USB Type A connectors.
    • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard/mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and IKEY combo keyboard/touchpad.
    • Keyboard and mouse are hot-pluggable.
    • Available with an optional female USB Type A connector for an additional USB 2.0 (low/full speed) device.
      • Use to connect a 3M or Elo USB touch screen monitor, CAC card reader, or SMART Board™ Interactive Whiteboard.
      • USB maximum data rate: 12 Mbps.
    • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
    • Available power cord lengths: 1/1.5/3/6 feet
    • 4-, 8- and 16-port switches WxDxH (in):
      • 16.7x6.8x1.75 (without supplied rackmount kit)
      • 19x6.8x1.75 (with supplied rackmount kit)
    • 32-port switches WxDxH (in): 19x10x3.5
    • Operating temperature: 32°F to 100°F (0°C to 38°C)
    • Storage temperature: -20°F to 140°F (-30°C to 60°C)
    • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
    Regulatory Approvals
    • CE, RoHS

    Control Methodes

    Front Panel Interface
    • Touch a button and be connected to a computer or change modes of operation.
    • LEDs indicate currently selected port and mode of operation.
    RS232 Control
    • Female RJ45 connector.
    • Baud rate 1200 to 115200.
    • Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
    • Commands
      • CS - connects output with specific input.
      • RO - reads what input is connected to output.
      • RU - reads size of switch.
    Ethernet Control
    • Female RJ45 connector.
    • 10/100 BaseT Ethernet interface.
    • Supported protocol: Telnet.
    • Control can be done over Telnet.
    • Commands are similar to RS232 commands.
    • The telnet server listens on port 2005 (configurable).
      • Port 2005 is intended for a software control type session.
    • Scan, Broadcast, or Command Modes are available from the keyboard.
    • Use the keyboard to command the switch box to select ports or configure the SCAN delay.
    On Screen Display (OSD)
    • Select computers by name with the On Screen Display (OSD).
    • Use keyboard or mouse to operate the switch from menus superimposed onto the monitor.
    • Shows names of computers on cascaded switches up to 1024 ports.
    • Names can be up to 12 characters long.
    • Power status of each computer is displayed.
    • View usage statistics – power-on cycles and hours of usage.
    • Helps screens assists users with the OSD.
    • Modify the size and position of the OSD.
    • OSD is built into the switch-no need to install additional hardware or software.
    • OS and software-independent.
    • Security
      • Advanced security included.
      • Each user password can be up to 15 characters long, and each switch can store up to 63 users.
      • Administrator can enable or disable all security features and select which computers each user can access.
      • Once security is enabled, a user or administrator must login in order to access any of the computers connected to the switch.
