How to control up to 32 USB computers with one USB keyboard, USB mouse & VGA monitor
Also known as: Industrial USB KVM switch, usb kvm switch, UNIMUX usb kvm switch, usb switch, universal serial bus kvm switch.
Description

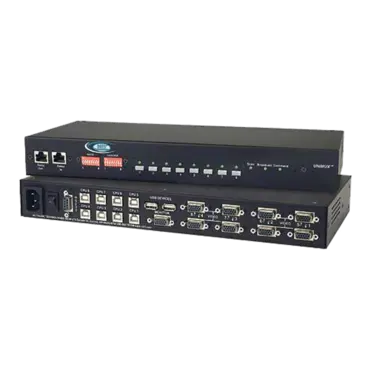

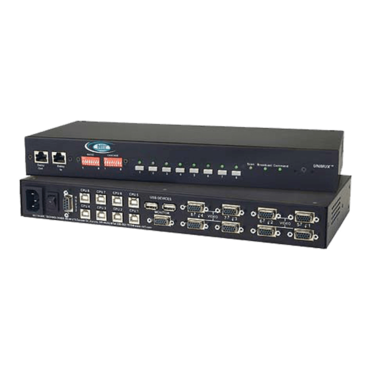

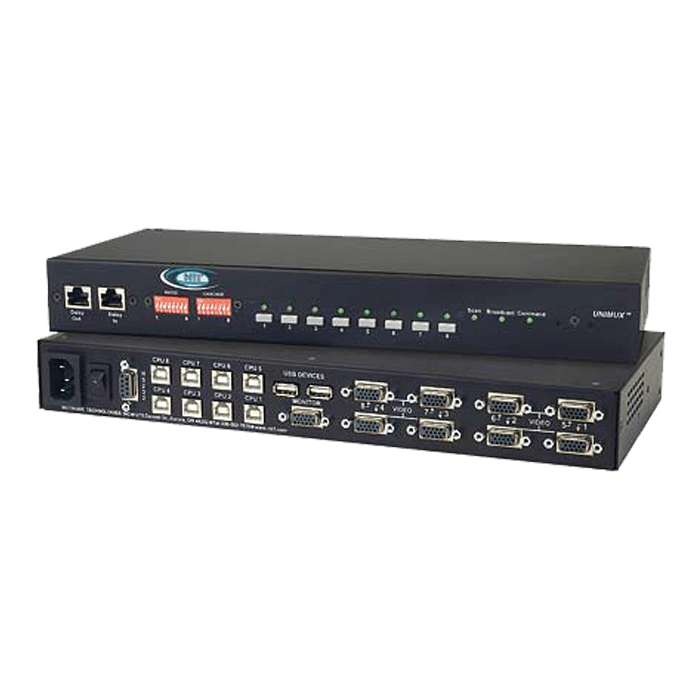

The UNIMUX™ USB KVM switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard & mouse presence to each attached CPU 100% of the time so all computers boot error-free.
High quality construction.
Features NTI's patented true autoboot USB switching – all attached USB PCs, MACs and SUNs can be booted simultaneously.
Compatible with USB-enabled PCs.
Compatible with SUN T1000, SUN 1000, SUN V210, SUN Fire™ V240, SUN Fire V20z, and other USB-enabled SUN computers.
Compatible with MAC G4/G5 and Xserve. Supports MAC soft (keyboard) power-on.
Crisp and clear 2048x1536 video resolution.
Fully compliant with USB standards (1.0, 1.1).
USB MAC and SUN start-up keys are supported.
SUN extra keys are emulated on USB keyboards with Windows keyboard layouts.
Available with audio or RS232 control options.
Supports international keyboard layouts in auto-detection mode.
UNIMUX-USBV-8O
Hosts
Eight female 15-pin HD and eight female USB Type B connectors.
Supports USB-enabled PC, SUN and MAC computers with VGA video.
Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.
Monitor
Crisp and clear resolution up to 2048x1536.
Female 15 pin HD connectors.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Bandwidth is 150 MHz.
MTBF
60,900 hrs.
Regulatory Approvals
CE, RoHS
Warranty
Two years
Power
110 or 220 VAC at 50 or 60 Hz via IEC connector.
Power consumption: 10 W
Add -48V5V2A, optional internal DC-DC converter to install the UNIMUX-USBV-8O(RS) in a Telecom environment.
Devices
Female USB Type A connectors.
Compatible with most USB keyboards and mice, including wireless.
Keyboard and mouse are hot-pluggable.
Supports two USB devices directly connected.
Supports up to eight USB devices using USB hubs (not included).
Environmental
Operating temperature: 32 to 100°F (0 to 38°C)
Storage temperature: -20 to 140°F (-30 to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
